BOCK belluno Assembly And Operation Manual page 29

Special features
livorno low has mature technology and can be integrated particularly well into existing
living areas thanks to the selection of decorative elements. The lying surface is optionally
available with a 4 or 5-split function. On the lying surface, the back and leg sections are
electrically operated via the hand control, whereby the leg section is equipped with auto-
matic 3-fold adjustment.
livorno low become operational
Before you begin with the assembly, all packaging
residues must be completely removed.

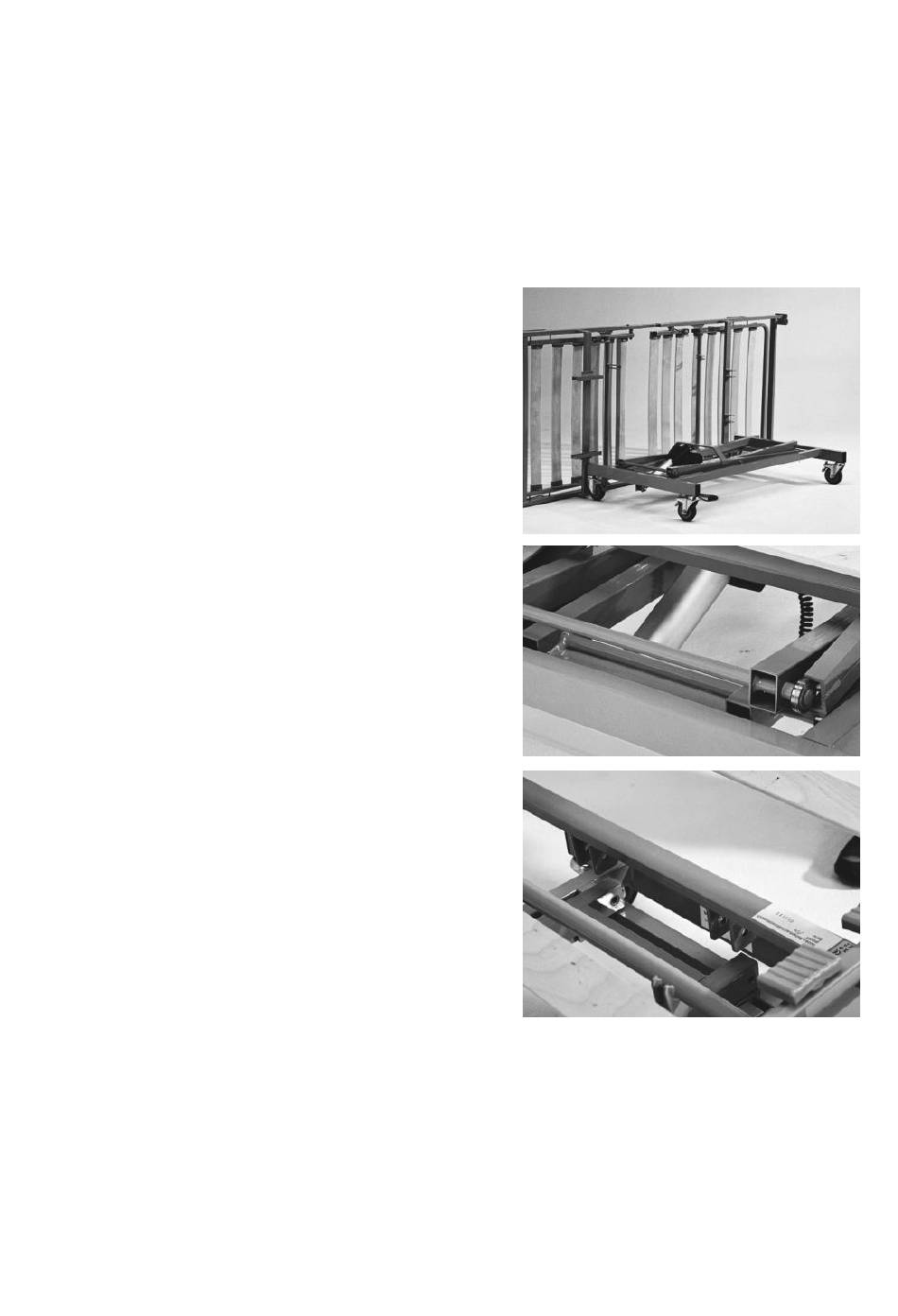

Place the chassis with scissor component free-stand-
ing and lock the castors. To simplify the assembly,
we recommend that you first raise the scissor com-
ponent to knee height by connecting them to the ly-
ing surface motor.
When mounting the lying surface, the ball bearings
in the upper area of the scissors must be inserted
into the U-profile provided for this purpose at the
lower end of the lying surface. Remove the spring
cotter pins from the chassis. Lock the lying surface
between the two brackets with the previously re-
moved split pin. Secure the split pins against unin-
tentional loosening with the cotter pin.
The power cable must be screwed to the lug of the
lying surface with the strain relief provided on the
cable. Connect the mains plug. Connect the hoist
motor to the lying surface motor.
