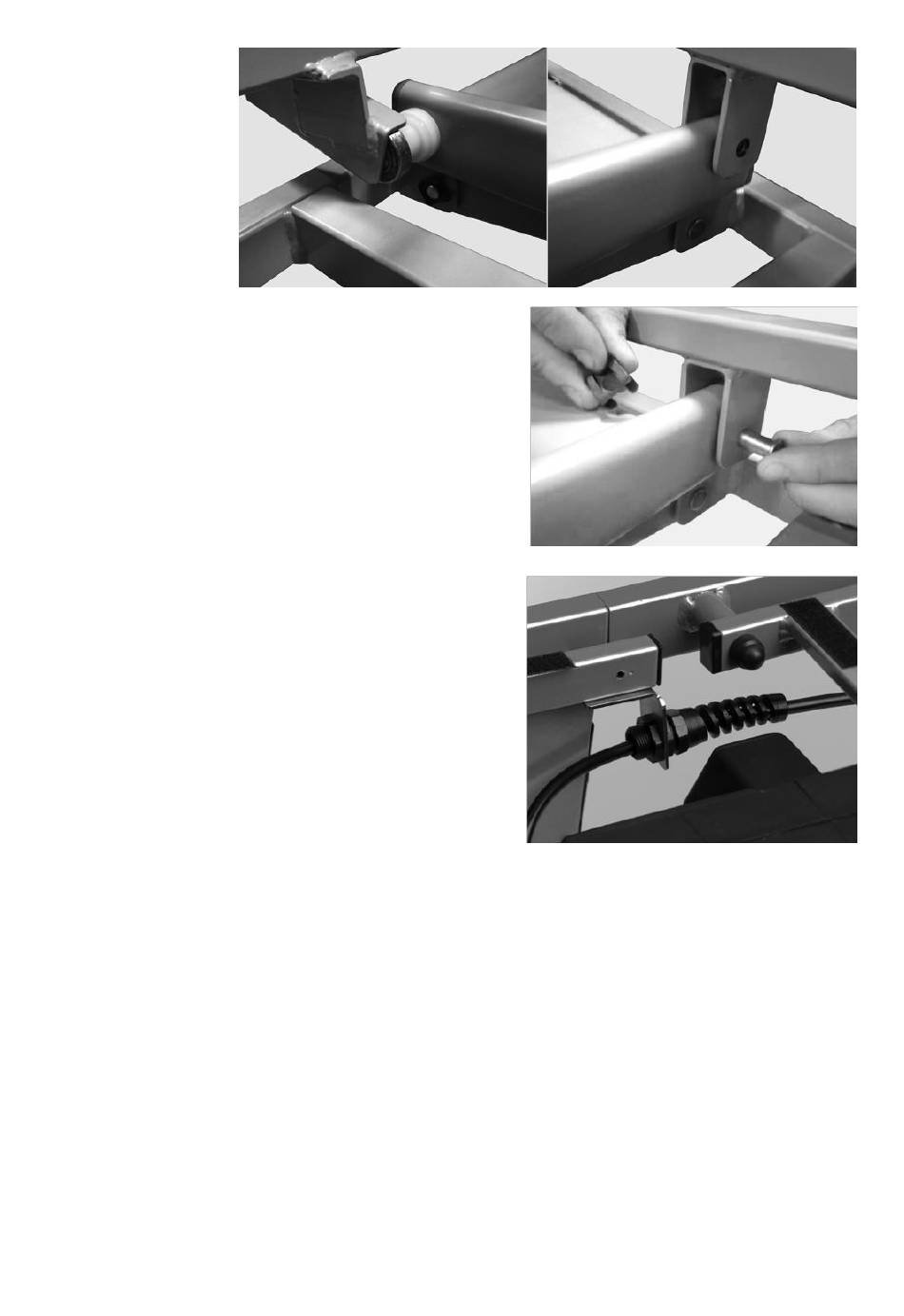

Then fasten with the supplied bolts and secure with
the locking plate.
The power cable must be screwed to the lug of the
lying surface with the strain relief provided on the
cable.
Insert the plugs on the cable end of the hoist motors
of the chassis into the matching sockets on the box
motor.
After assembly or before putting the bed into operation, move the adjustment range of
the lying surface over the control unit to check the optimum positioning of the cables. The
adjustment range must be passable without obstacles. The power cable must be routed
outside the bed and the hand control must be freely accessible.
34
