- Page 1 Assembly and operating instructions storeline t10X bedside cabinets with s100 flexible • tray...
- Page 2 Dear Customer, By purchasing this product from Hermann Bock GmbH, you are acquiring a long-lasting, modern product with first-rate functionality and safety. In order to prevent malfunctions and risks to people, users and third parties, please read this manual carefully and observe all the instruc- tions and notes it contains.
-
Page 3: Table Of Contents
2 Overview of functions ..................6 3 Assembly and operation .................. 7 Technical specifications – storeline s100 .............7 Videos ......................8 Assembly and mounting of the storeline s100 onto the t10X ......9 Operation ....................11 Disassembly ....................14 Transport, storage and operating conditions ..........14 Usage notes ....................15... -
Page 4: Introduction And General Notes
If you have questions about the warranty for this product, please contact your vendor. If you do not use original Bock replacement parts, or if repairs/changes are made to the bedside cabinets, trays or their components by unauthorised personnel, the warranty is null and void. -
Page 5: Tray Nameplate
Tray nameplate An individual nameplate is affixed to this product. Individual nameplate Kommentiert [IW2]: Bitte ein englisches CE verwenden Placeholder individual nameplate Model number Date of manufacture: Year - Month - Day Serial number: Order number - Sequential number Symbols Manufacturer Explanation of symbols: Product is subject to separate waste disposal... -
Page 6: Overview Of Functions

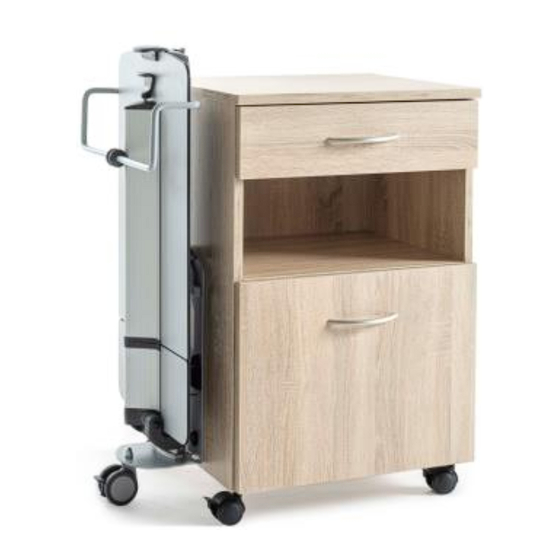

Overview of functions Construction and function Fixed surface t10x bedside cabinet (shown here: t101) Swiveling tray Height-adjustable lifting post Latch for removal Locking system for separate storage of the s100... -
Page 7: Assembly And Operation
Assembly and operation Kommentiert [IW3]: Bitte prüfen ob die Maße mit der Bro- schüre übereinstimmen Technical specifications – storeline s100 Technical specifications storeline s100 storeline s100 with t10X Extended: Extended: Dimensions: Total 800 mm / 1190 mm 1305 mm / 1190 mm... -
Page 8: Videos
Videos ▪ How to use the storeline s100... -
Page 9: Assembly And Mounting Of The Storeline S100 Onto The T10X
Assembly and mounting of the storeline s100 onto the t10X Assemble the cabinet as shown at the right. Remove the cover plugs on the side where you want to install the tray. Then, take the connectors out of the provided bag with all fittings for the storeline s100 and attach them to the cabinet. - Page 10 Once the connectors have been properly installed, you can mount the tray as shown in the figure at the right. It should click into place automatically. Make sure that the tray is fitted properly into all three connectors. The locking mechanism has to engage around the connector, as shown in the fig- ure at the right.
-
Page 11: Operation
Then, swing the lateral clamp on the lock- ing system to the side. Once all these steps are complete, the bedside table with tray is ready to use. Operation When the tray is retracted, you can use the handle on the top of the table surface to pull it out. - Page 12 The figure at the right shows the tray in its highest position. To lower the tray, press the lever shown on the right-hand side of the figure dis- played here. Use your other hand to press the tray downward. If you would like to tilt the tray, simply pull the handle shown at the right.
- Page 13 The tray can also be tilted in the opposite direc- tion. Bock Safety Note Please read this entire manual in order to avoid causing damage by using the product improperly. Clean and disinfect the product before first use and before every subsequent use.
-
Page 14: Disassembly
Disassembly If you would like to remove the tray, first collapse it as shown in the figure at the right. Then move the transport clamp into the position where it blocks the table and can be transported securely. Important note: The clamp must lock into the dedicated slot. -
Page 15: Usage Notes
Usage notes To keep the bedside cabinet in a particular location, the brakes on the castors must be locked. To lock the brakes, push the locking lever downward with your foot. Disposal The individual plastic, metal and wooden components are recyclable, and can be disposed of for recycling in accordance with applicable laws. -
Page 16: Cleaning, Care And Disinfection
Cleaning and care Following the care instructions in this section will help you maintain the functionality and appearance of your Bock product for a long time to come. The table surfaces of the bedside cabinets and trays are made of coated particleboard with a decorative finish. -
Page 17: Disinfection
Bock patient beds. Disinfection To disinfect your Bock product, wipe it down with an approved disinfectant agent. Follow the disinfection procedures tested and approved by the Robert Koch Institute (RKI). To maintain the durability of plastic components, only mild and gentle products should be used for disinfection. - Page 18 Please note that training, replacement parts, repairs, inspections and other forms of service can only be provided by our authorised personnel and sales partners. Otherwise, all warranty claims will be void. For a list of our current sales partners, see www.bock.net/kontakt/vertriebspartner (German only) © registered trademark 890.02136 Last updated: 08-2023...
