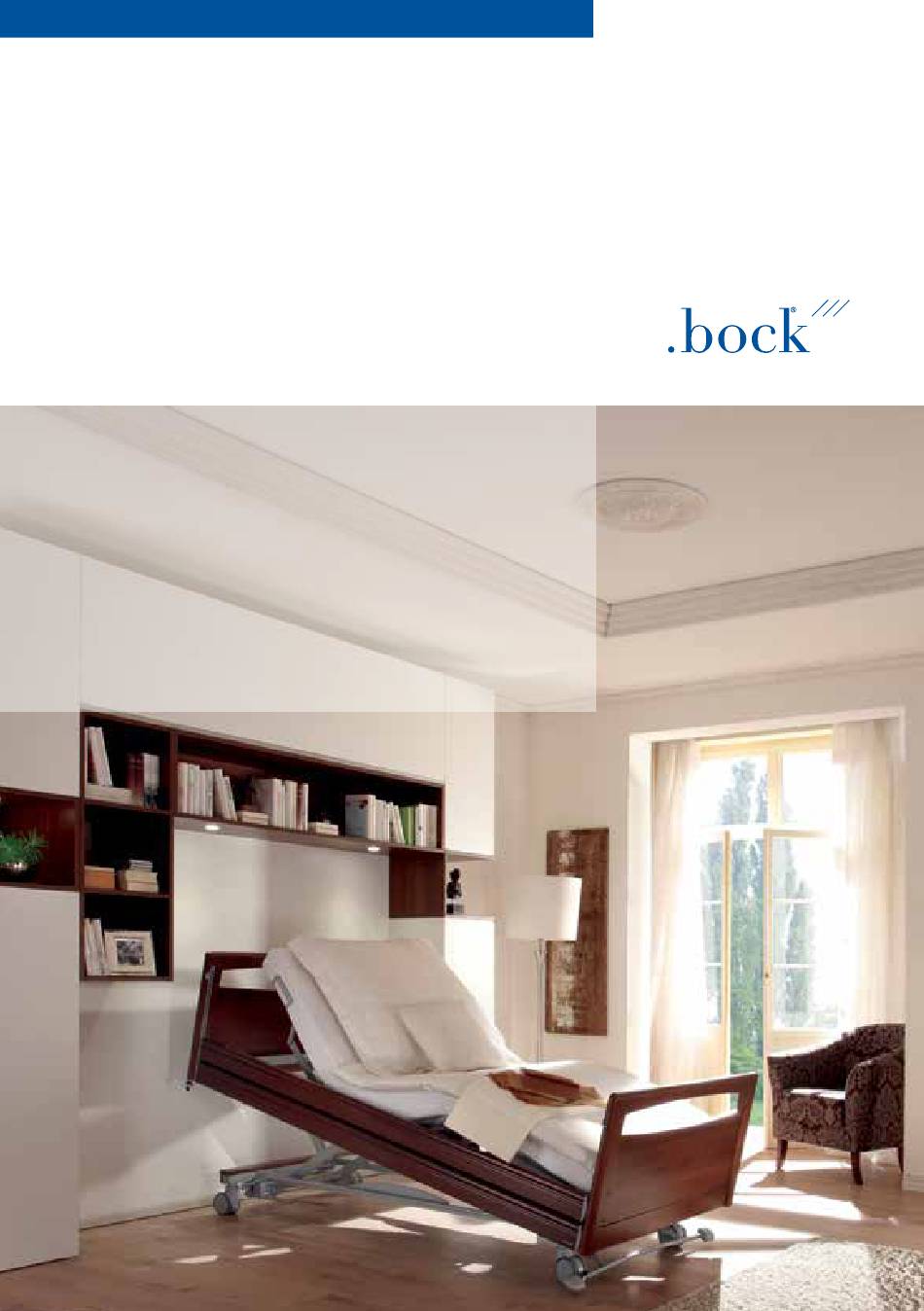

- Page 1 Assembly and operating instruction Nursing care beds · belluno · livorno / livorno low / livorno hydraulic · verona / verona low · combiflex / combiflex.fc · practico · practico 25/80 · practico comfort · practico economic...
- Page 2 Dear customer, In deciding to buy a nursing care bed from Bock you have opted for a care product that has a long service life and delivers first class functionality at the highest safety level. Our electrically adjustable care beds guarantee optimum comfort when lying, and support professional care activities.
-
Page 3: Table Of Contents
4.2.2 The mains isloation 4.2.3 The ICS drive 5. Assembly and operation 5.1 Technical datas 5.2 belluno 5.3 livorno / livorno low/ livorno hydraulic 5.4 verona / verona low 5.5 combiflex / combiflex.fc 5.6 practico / practico 25/80 / practico comfort / practico economic 5.7 Assembly of the side rails... -
Page 4: Preamble And General Information
Each healthcare bed manufactured by the company Hermann In order to avoid possible Bock must pass a quality inspection and will be issued with a damages and malfunction quality certificate by the TÜV before it leaves the production during the assembly and line. -
Page 5: Intended Use
1.1 Intended use The health care bed has been designed for the positioning of persons in need of care or patients of medical facilities as of the year of 12 and a body height of at least 150 cm. The beds are intended for use in retirement or care retirement homes, reha- bilitation facilities and with respect to home care treatment. -
Page 6: Definition Of Person Groups
Professionals gle extremities or the falling Professionals include staff assigned by the operator, who are, out of bed. The bock ser- owing to their training or briefing allowed to deliver, mount, dis- vice team will be pleased mount, and transport the bed. As a general rule, these persons... -
Page 7: Life Time/ Gurantee
These recommendations are particularly important, > if the patient´s disability hinders them to operate the hand control, > if the patient or nursing staff could be at risk due to unwan- ted adjustments, > if the side rails are raised, so that there is a risk of crushing or getting trapped, >... -
Page 8: Type Label
Type label (Example) Model description Date of manufacturing: Day, month, and year Serial number: Order confirmation number – serial number Power supply voltage; power frequency; power input. Switch on time Drive protection type Safe capacity/ max. person weight Manufacturer Symbols (on the right-hand side) CE-‐ ... -
Page 9: General Functionality Description
Head section Thigh section Fixed seat support Lower leg section 2. General functionality description Design configuration and functionality The lying surface and its four sections In the standard version, the lying surface comes with comfort wooden slats (may be supplemented with a metal lying surface or special suspension systems) and is made up of four sections: head section, fixed seat support, upper - and lower leg section. - Page 10 The chassis The height adjustment of the beds can either be made via two height-adjustable actuators or a basic frame which can be ope- rated via a single or double-drive. The surface of this steel tube construction is stove-enameled with a PES-powder coating. The side rails Every health care bed comes with integrated side rails on both sides and therefore, exhibits a special degree of safety.
- Page 11 * Bock Hazard Note Operating the plug-on or plugged-in side rails The locking device of the plug-on or plugged-in side rails is When making any electri- installed at the backside of the metal facing, which is attached cal adjustment of the lying beneath the wooden side rails.
- Page 12 (Fig. 2). You are now able to lower this part of the side rail easily. The side rail is now in a dia- gonal position (Fig. 3). > Bock Top Advice When using different mat- tress thicknesses, the...
- Page 13 * Bock Hazard Note locks into place at both ends. Now, the side rail is in the uppest – Only use original Bock position. siderails that are availa- ble as accessories for all our care beds.
- Page 14 Fig. 1: Continuous wooden/steel side rails , two side rails Fig. 2: Continuous wooden/steel side rails , three side rails Fig. 3 Telescopic wooden side rails, duo middle bar Fig 4: Telescopic wooden side rail, solo middle bar in the middle...
- Page 15 Fig 5: Wooden plug-in/plug-on side rail Description All measures in mm. * Depending on the lying surface length Article number Single telespoci bar on the head/foot end are optinal. Description Art.No. The meassures in brackets is valid as optional Continuous wooden/steel side rails 2 side rails (Fig.
-
Page 16: Electric Components
3. Electric components * Bock Hazard Note The maximum switch-on 3.1 Drive unit time should not be more The drive unit consists of a twin drive which combines two sepa- than 2 minutes. A subse- rate drive units for the electrical adjustment of the back and leg quent break of 18 minutes part. -
Page 17: The Lockable Hand Control
> Bock Top Advice 3.4 The lockable hand control, fault safe operation The extra-large, easily operable 6 buttons positioned on the ergo- The drives with the nomically shaped hand control provide the main functions and E-transformer 24V: Due can be controlled at the touch of a finger. Each of the operating to the low standby- mode buttons is labeled with appropriate symbols. -
Page 18: Caution: Electrically Operated Drive
(with beds providing the Trendelenburg function) 3.5 Caution: Electrically operated drive Hermann Bock calls its electrically operated nursing and therapy beds health beds, because they considerably facilitate the care recipient´s recovery process in both physical and mental aspects while relieving pain at the same time thanks to their versatile functions. - Page 19 In oder to avoid damages to the cables, the cable installation * Bock Hazard Note should be places off-side potentional damage areas. Also avoid The simultaneous use of contact with square-edged componements. Notes for an appro- electrical devices my cau- priate cable installation can be found in chapter 5.
-
Page 20: The Drives
* Bock Hazard Note Never open any drive com- 4.1 The 24 Volt drives ponents! Hermann Bock equipped their health care beds with various Both repair and exchange of Limoss drive systems. components are only allo- wed to be done by especial- 4.1.1 The drives system... -
Page 21: The External Switched- Mode Power Supply
The totally easy assembly/disassembly and the spacious instal- > Bock Top Advice lation compartment for battery and electronics positioned abo- Once a year the 9 Volt bat- ve the robust hinged cover make the housing of the doubledrive tery of the motor should stand out. -
Page 22: The Drives With Mains Isolation
4.2 The drives with mains isolation * Bock Hazard Note Representing the market leader in the field of manufacturing Never open any drive com- adjustment systems, ILCON stands out for their highly-qualified ponents! performance and excellent know-how. This synergy provides the... -
Page 23: The Mains Isloation
Due to its internal construction, the housing fullfills an essenti- > Bock Top Advice al requirements for the installation of the drives. Especially the Once a year the 9 Volt bat- easy assembly/dismounting of the battery and electronic by sta- tery of the motor should ble holding sheets characterize this dual drive. - Page 24 4.2.3 ICS Drive system The Intelligent control system (ICS) allows the user to control and monitor the components and parameters of a bed in a safe and reliable way. Owing to the individual coordination of more than 100 parameters, the micro-process control can be ideally adjusted to your individual fields of application.
- Page 25 Unintended system activation/adjustment In the event of an unintended activation or adjustment of the system, too early lowering, a loss of the position occurs. This may e.g. result from the replacement of the drives. In order to remove the fault, it will be necessary to carry out an initialization. The initialization is made through a button combination, i.e.
-
Page 26: Assembly And Operation
5. Assembly and operation 5.1 Technical data... -
Page 27: Belluno
5.2 belluno belluno is the classic model when it comes to the daily use in rehabilitation- and medical facilities, as well as with respect to care at home. belluno provides persons in need of care, invalid and disabled persons with a high degree of lying comfort, whi-... - Page 28 4 or 5 different adjustment functions. The electrical adjust- ment of the lying surface´s back rest can be done by means of the hand control.
- Page 29 The adjust- ment area must be accessible without any obstacles. belluno is now ready for use!
-
Page 30: Livorno / Livorno Low/ Livorno Hydraulic
5.3 livorno / livorno low / livorno hydraulic Purpose livorno, livorno low and livorno hydraulic have been especially designed to meet the requirements of daily use in rehabilitati- on- and medical facilities or for care at home.Their purpose is to provide care-dependent, invalid and disabled persons with an especially home-like, comfortable environment, as well as to facilitate the care process. - Page 31 Important: The beds are not equipped with any particu- lar connections that provide for a potential equalization. Electrical medical devices connected to the patient´s intravascular or intracardiac system must not be used. The operator of the medical device shall be responsible for the conformity of the combination of the devices with the requirements of DIN EN 60601-1-1.
-
Page 32: Verona / Verona Low
150 cm. > Under certain circumstances,verona and veronal low can (if required) be used in combination with medical * Bock Hazard Note purposes and other electrical medical devices (e.g. drai- The side panneling of the... - Page 33 and can be perfectly integrated into home environments owing to the vast offer of decoration elements. The beds are available with a lying surface which provides both 4 or 5 different adjustment functions. The electrical adjustment of the lying surface´s back rest can be done by means of the hand control.
-
Page 34: Combiflex / Combiflex.fc
5.5 combiflex / combiflex.fc The model combiflex /combiflex fc has been especially designed to meet the requirements of daily use in rehabilitation- and medical facilities or for home care. Their purpose is to provide care-depen- dent, invalid and disabled persons with an especially home-like, comfortable environment, as well as to facilitate the care process. - Page 35 Particular features The combiflex offers established and modern technique with automatic profiling of the lying surface for the use at home. If needed all possible lying surface adjustment up to a confort-sit- ting position can be adjusted individually. Due to its extremly low construction the combiflex bed-in-bed system can be installed in nearly all exsiting bed frames.
- Page 36 7. Hang the lying surface motor on the provided lifting ele- ments of the lying surface. Fix it with the holding sheets (Fig.7). Make sure that the holding sheets are pushed through to the end stop. Fig. 7 8. Connect the lying surface with the base frame in such a way, that the ball bearing of the top section of the base frame fits right into the u-channel at the bottom side of the lying surface.
- Page 37 Fig. 8 Fig. 9 9. Afterwards fix it with the provided bolts and secure with the protection sheet (Fig. 9). 10. The net cable has to be fastened to the lying surface with the provided pull relief (Fig. 10). 11. Connect the actuator accordingly to the main motor underneath the lying surface.
-
Page 38: Practico / Practico 25/80 / Practico Comfort / Practico Economic
* Bock Top Advice Bed models with covered castors are not suitable for the patient´s transport. The beds are simply defined for the moving inside the patient´s room, e.g. for clea- ning or access to the pati- ent. 5.6 practico / practico 25/80 /... - Page 39 In this case, it would > Bock Top Advice be necessary, to deactivate all bed functions by means Bock supports you with of the integrated locking device, until the treatment is a checklist in accordance completed. with DIN EN 62353 (inclu- Important: The beds are not equipped with any particular con- ded to this user´s manu-...
-
Page 40: Assembly Of The Side Rails
6. Mount the side panneling of the frame with the provided screws on the longitudinal lying surface frame bar (this is not valid for the practico ecomomic). Further mounting steps as decribed in chapter 5.7. 5.7 Assembly of the side rails Assembly of the continuous side rails The head end panel has to be pushed through to the end stop and fastened. - Page 41 Assembly of the splitted plug-in side rails Assemble both end panels completly and fasten them. Take the splitted side rail and push it from the side into the provided guides on the lying surface frame. Fasten it with the delivered screws. Ensure that the side rails are mounted on the correct spot.
- Page 42 Mounting of the splitted telescopic side rails With this side rail version, the end panels should not the asssembled completely. Both end panels should only be brought into place but not be fastened with the screws. Take the side panneling of the lying surface frame and screw it to the provided drilling holes (Fig.
-
Page 43: Control
5.8 Control The electrical adjustments are made by means of the hand con- trol. The following functions can be enabled via a push onto the corresponding button of the hand control. Control button 1 Back bar up Control button 2 Back bar down Control button 3 Foot bar up... - Page 44 Hand control with special functions The ergonomic designed hand control can be operated via a touch with the finger on the extra large buttons. Each button is labeledwith corresponding symbols. The actuators are operating as long as the button is pushed. A spiral cable offers the necces- sary freedom of movement.
- Page 45 Hand control for practico with ICS-drive and head-down function (Fig. 3) Control button 1 Back bar up Control button 2 Back bar down Control button 3 Foot bar up Control button 4 Foot bar down Control button 5 Auto contur up Control button 6 Auto contur down Control button 7...
-
Page 46: Relocation/ Repositioning
Function button 10 Release of the low function 5.9 Relocation/ Repositioning * Bock Hazard Note In case, the bed is supposed to be moved to another place, The motors fullfill the please make sure to observe the following safety instructions: IPX 4 requirements. -
Page 47: Transport- And Storage Conditions
* Bock Hazard Note 5.10 Transport- and storage conditions Never try to repair any Transport and storage Operation defects or malfunctions in Temperature 0°C bis +40°C 10°C bis 40°C the electrical equipment Relativ humidity 20% up to 80% 20% up to70% on your own. -
Page 48: Troubleshooting
Inform the operator or Faulty hand control or motor customer support of H. Bock GmbH Enable the mains isolation by pushing the green button, in Mains isolation not activated addition to this, it is recommended to check the 9-V battery. -
Page 50: Accessories
Bock. The bed for accidents, damages or extensions available for lengths of up to 220 cm makes it also... -
Page 51: Assembly - Bed Extension
1. Take off the mattress from lying surface. 2. Remove foot end panel. 3. Plug adapter units into the frame of the lying surface at the foot end and fasten with screws. 4. Put wire bracket into the frame of the lying surface, drill holes (d = 4.2 mm) and fasten with screws. -
Page 52: Assembly- Accessories
Important note: The bock side rail extension has been designed for the use on all bock wooden side rail models. Company Bock assumes no liability for damages arising from the use in combination with third-party products Lifting pole with triangle grip, 6,5 kg (Fig. - Page 53 Tray, 4.0 kg (Fig. 4)(Fig. 4) > Bock Top Advice Scope of delivery: Hermann Bock´s staff on – The tray is to be placed on the side rails and is secured the service hotline is loo- against slipping by two distance holders...
- Page 54 Assist handle with cross-bar for actuator beds, 3,0 kg Scope of delivery: 1 Getting-up aid incl. 1 cross bar support, 4 bolts 4 mm Fig. 1 Left side: Scope of delivery, right side: mounted getting-up aid – Put the cross-bar support to frame of the lying surface from the bottom up and mark the drill holes on the fra- me.(Fig.
-
Page 55: Mattresses
6.4 Mattresses There are, in general foam and latex mattresses suitable for the Hermann Bock health beds. However, a volumetric weight of at least 35 kg/m3 is required along with the dimensions of 90 x 190 cm, 100 x 190 cm, 90 x 200 cm and 100 x 200 cm. The height... -
Page 56: Cleaning, Maintenance And Disinfection
7. Cleaning, maintenance and > Bock Top Advice Scrapes and varnish chip- disinfection pings that go through the entire varnish coating The several bed elements consists of hight-quality materials. should be preventively The surface of the steel tubes is covered with a durable polyes- sealed with appropriate ter powder coating. -
Page 57: Disinfection
* Bock Hazard Note 7.2 Disinfection All methods in accordance to the standard EN 12720 can be used It is absolutely not recom- for the wipe disinfection. However, you should apply only mild mended to use abrasive and gentle methods so as to retain the material resistance of the cleansers resp. -
Page 58: Continuous Functionality Check Including Service
The operator bears the se instructions concerning the beds. However, Bock facilitates responsibility concerning the observance of the necessary precautionary measures to be the handling of the locking taken by means of their time-saving services. - Page 59 It is stipulated by the company Hermann Bock GmbH to exe- inspections in an appro- cute an Safety-technical control for at least once a year and priate before and after each re-use of the bed.
- Page 60 Guidance and manufacturer‘s declaration Electromagnetic emission The medizinisches Bett is intended for use in the electromagnetic environment specified below. The customer or the user of the medizinisches Bett should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment - guidance RF emissions...
- Page 61 The medizinisches Bett is intended for use in the electromagnetic environment specified below. The customer or the user of the medizinisches Bett should assure that it is used in such an environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment –...
-
Page 62: Declaration Of Conformity
Declaration of conformity Manufacturer: Product description/ model Hermann Bock GmbH Medical used bed in general Nickelstraße 12 33415 Verl Classification: Choosed conformity evaluation process: Medical products class I, norm 1 and 12 Appendix VII of MDD referring to appendix IX of MDD Hereby we declare that, the above specified products fulfill the precautions of the guideline 93/42/EWG of the advice for medical products. - Page 64 Regelmäßige Funktionsprüfung Constant functionality checks gemäß MPBetreibV, BGV A3 und DIN EN 62353 (elektrische Messung) In accordance with MPBbetriebV, BGV A3 and DIN EN 62353 (electrical measurements) Prüfgegenstand: Bett Einlegerahmen Steuergerät/Hauptantrieb Test specimen: Insert frame Controller/main drive Modellbezeichnung: Model name: Serien- /Inventarnummer: Series /inventory number: Standort:...
- Page 65 19. Höhe der Seitengitter über der Matratze mind. 22 cm? Nein 19. Height of side rails above mattress at least 22 cm? Mängelbeschreibung: Description of defects: 20. Bett-Zubehör (Aufrichter, Triangelgriffe, Gurte, Sperrbox etc.) ohne Verschleißerscheinungen und Nein 20. Bed-accessories (lifting pole, triangle grab handle, belts, control box etc.) without damages and sichere Fixierung? with secure fi...
-
Page 68: Sales Partners
Please note that only our authorised personnel and our sales partners can provide training, supply of spare parts, repairs, safety technical controls (TSC) and other services. Otherwise, all warranty claims will be void. Find our business partners: http://en.bock.net/contact/distribution-partners/ Art.No. 890.02024 | Issued: 07/2016 Subject to technical modification...
