SSANGYONG Y200 Manual page 469

SSANGYONG Y200
Removal & Installation Procedure

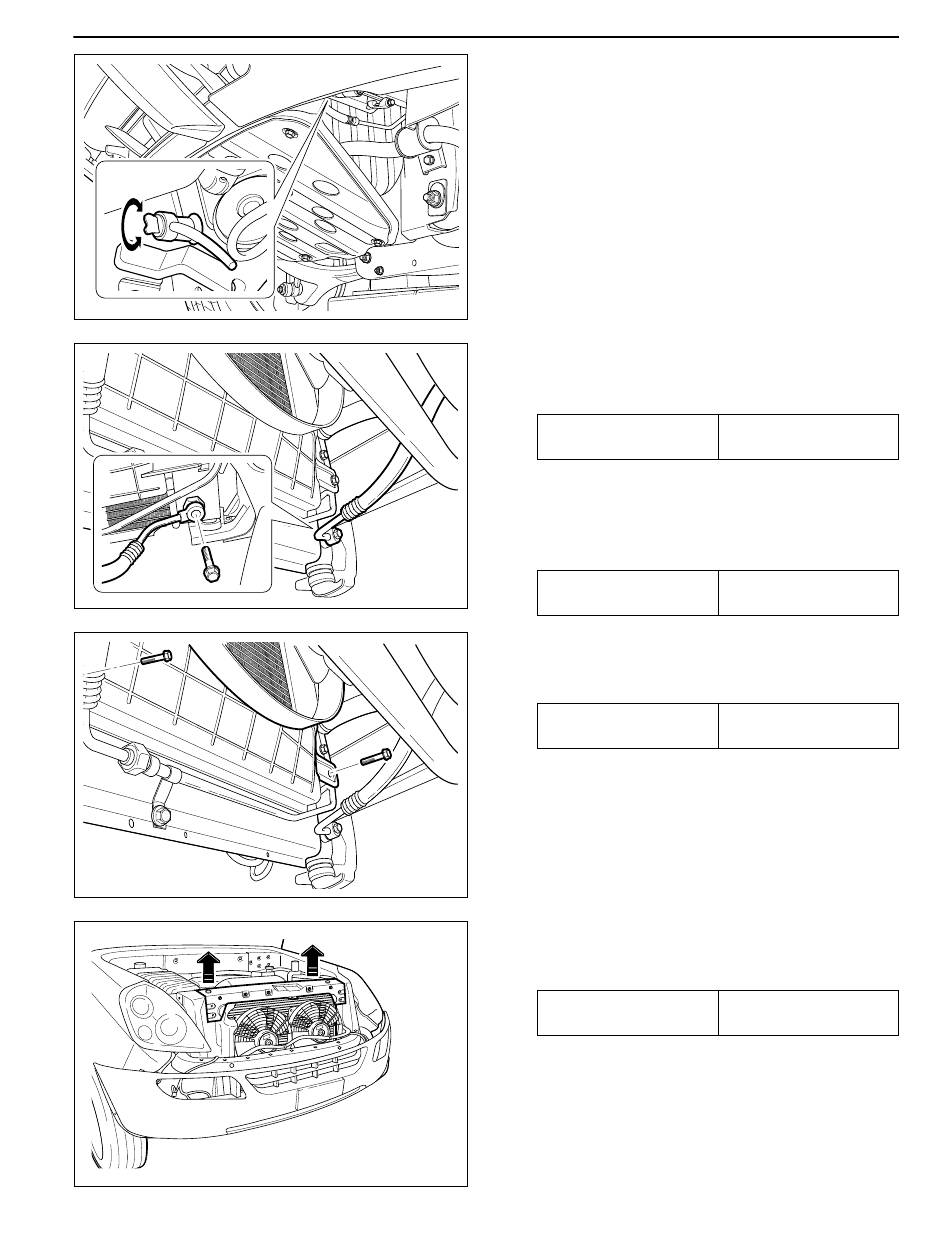

1. Drain coolant from the radiator.
2. Remove the each coolant hoses.
YAD1B040
3. Remove the upper and lower automatic transmis-
sion oil cooling pipes from radiator.
Installation Notice
Tightening Torque
4. Remove the mounting bolt (9) from the automatic
transmission oil cooler pipe (5) and then
disconnect the cooler pipe (5).
Installation Notice
Tightening Torque
YAD1B150
5. Remove the cooling fan shroud bolts and cooling
fan shroud.
Installation Notice
Tightening Torque
6. Remove the radiator grille mounting screw and
radiator grille.
YAD1D420
7. Remove the front and upper member mounting
bolts and front end upper member.
Installation Notice
Tightening Torque
8. Remove the radiator
9. Check the radiator pin for crack, damage, leakage
and bending and replace it if necessary.
10. Installation should follow the removal procedure
in the reverse order.
11. Check for leakage in the cooling system.
YAD1B080
ENGINE COOLING 1D-35
25 - 35 N•m
(18 - 26 lb-ft)
3 - 7 N•m
(27 - 62 lb-in)
3 - 7 N•m
(27 - 62 lb-in)
30 - 40 N•m
(22 -30 lb-ft)
