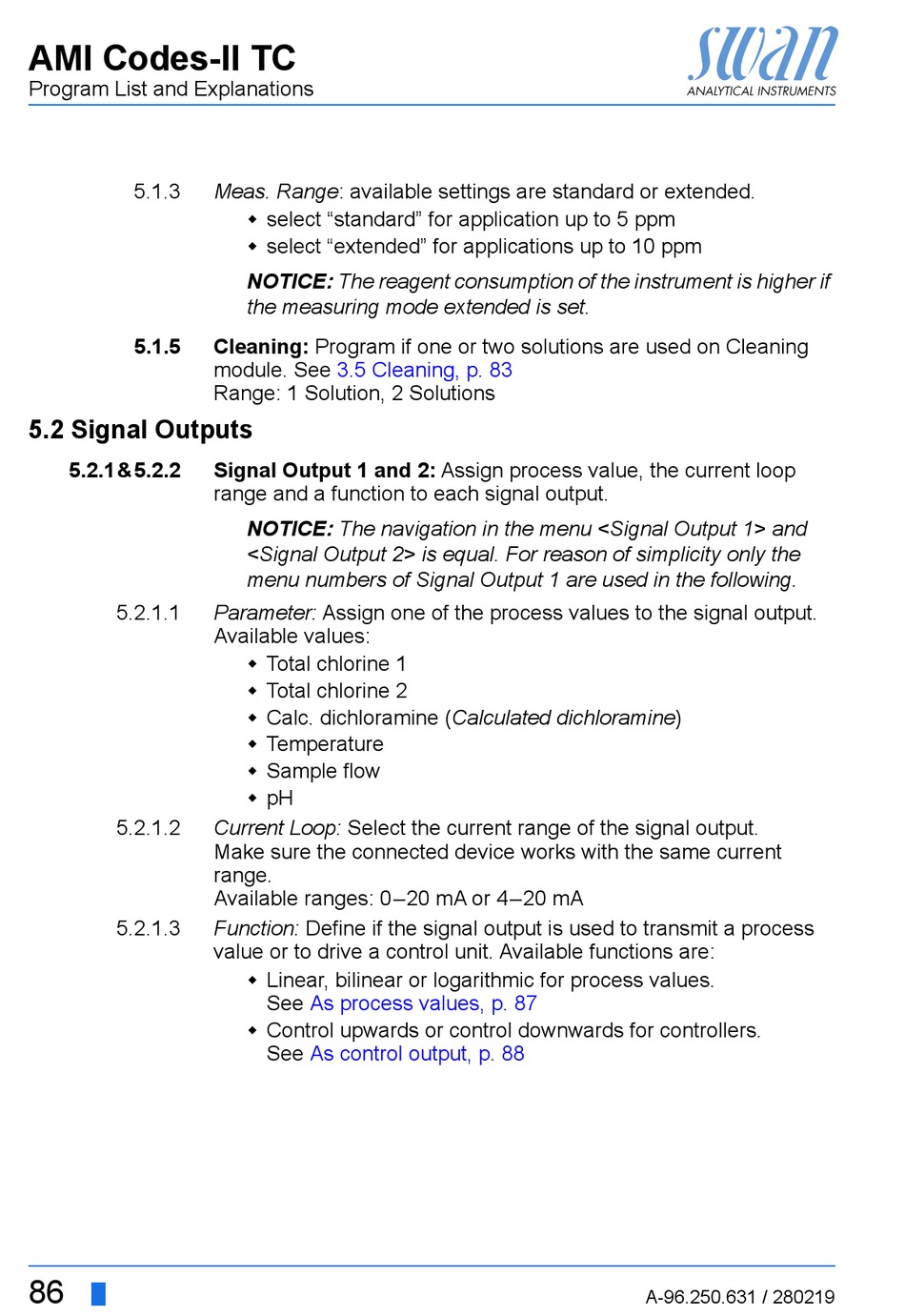

Program List and Explanations
5.1.3
5.1.5
5.2 Signal Outputs
5.2.1&5.2.2
5.2.1.1
5.2.1.2
5.2.1.3
86
Meas. Range: available settings are standard or extended.
 select "standard" for application up to 5 ppm
 select "extended" for applications up to 10 ppm
NOTICE: The reagent consumption of the instrument is higher if
the measuring mode extended is set.
Cleaning: Program if one or two solutions are used on Cleaning
module. See 3.5 Cleaning, p. 83
Range: 1 Solution, 2 Solutions
Signal Output 1 and 2: Assign process value, the current loop
range and a function to each signal output.
NOTICE: The navigation in the menu <Signal Output 1> and
<Signal Output 2> is equal. For reason of simplicity only the
menu numbers of Signal Output 1 are used in the following.
Parameter: Assign one of the process values to the signal output.
Available values:
 Total chlorine 1
 Total chlorine 2
 Calc. dichloramine (Calculated dichloramine)
 Temperature
 Sample flow
 pH
Current Loop: Select the current range of the signal output.
Make sure the connected device works with the same current
range.
Available ranges: 0–20 mA or 4–20 mA
Function: Define if the signal output is used to transmit a process
value or to drive a control unit. Available functions are:
 Linear, bilinear or logarithmic for process values.
See As process values, p. 87
 Control upwards or control downwards for controllers.
See As control output, p. 88
