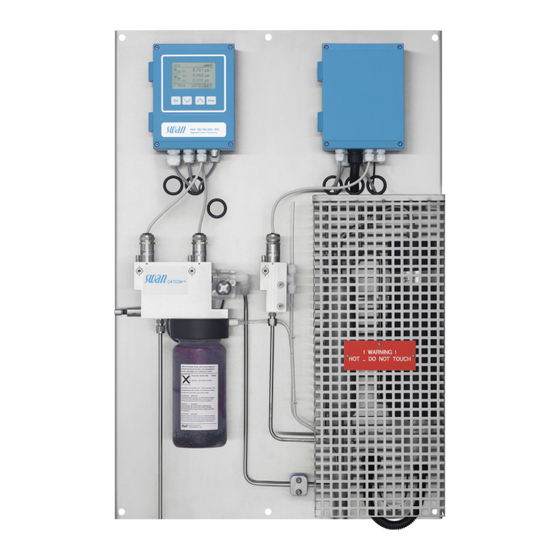

AMI Deltacon DG
Version 6.00 and higher
A-96.250.491 / 080416

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMI Deltacon DG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Swan Analytical Instruments AMI Deltacon DG

Summary of Contents for Swan Analytical Instruments AMI Deltacon DG

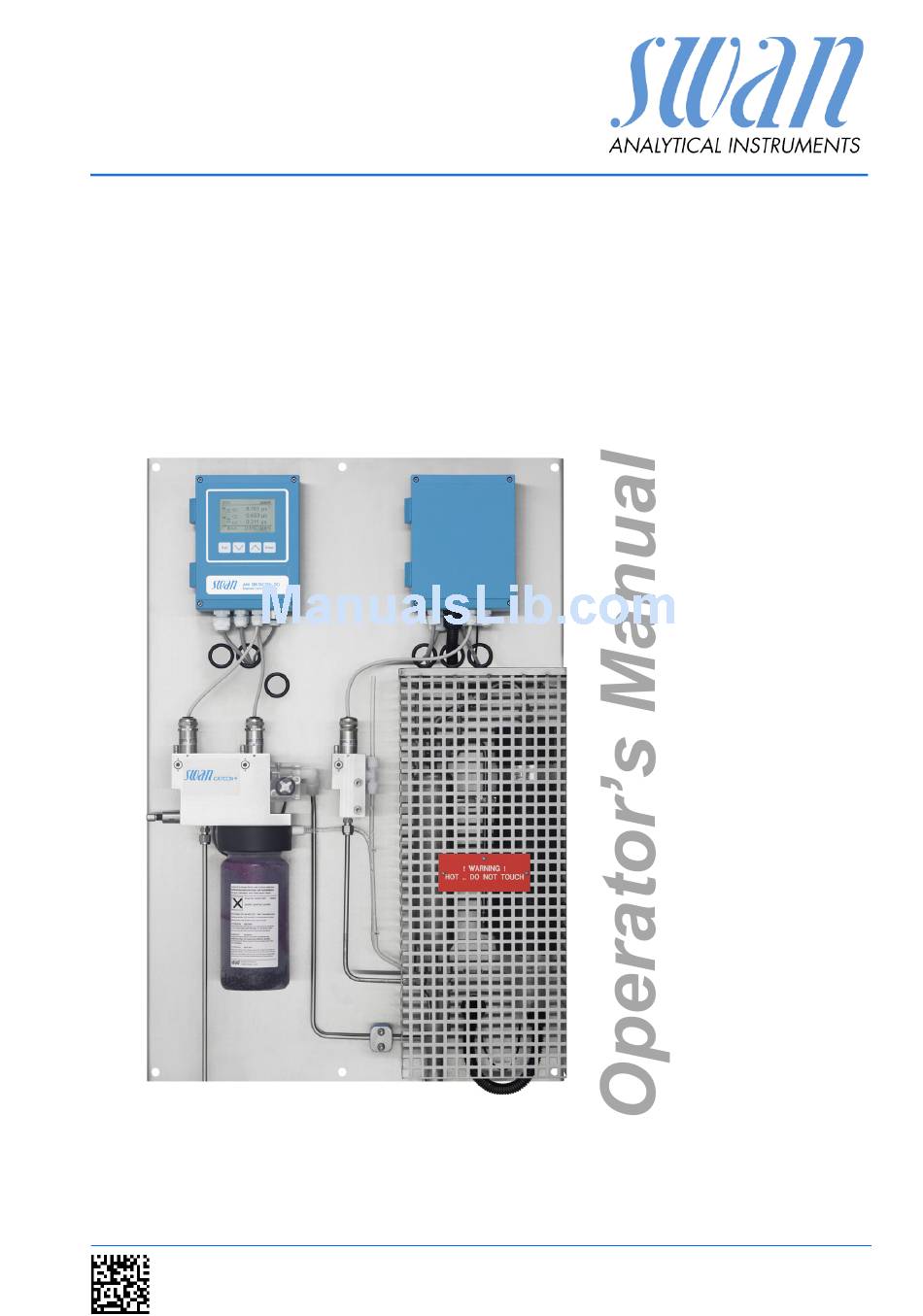

  • Page 1 AMI Deltacon DG Version 6.00 and higher A-96.250.491 / 080416...
  • Page 2 SWAN representative, or the manufacturer: SWAN ANALYTISCHE INSTRUMENTE AG Studbachstrasse 13 8340 Hinwil Switzerland Internet: www.swan.ch E-mail: support@swan.ch Document Status Monitor AMI Deltacon DG Operator’s Manual Title: A-96.250.491 Revision Issue Sept. 2009 Preliminary Edition Nov. 2009 Update to FW release 4.12 Feb.

  • Page 3: Table Of Contents

    AMI Deltacon DG Table of Contents Safety Instructions ........
  • Page 4 AMI Deltacon DG Maintenance ........

  • Page 5: Safety Instructions

    AMI Deltacon DG Safety Instructions AMI Deltacon DG - Operator’s Manual This document describes the main steps for instrument setup, oper- ation and maintenance. Safety Instructions General The instructions included in this section explain the potential risks associated with instrument operation and provide important safety practices designed to minimize these risks.

  • Page 6: Warning Notices

    AMI Deltacon DG Safety Instructions 1.1. Warning Notices The symbols used for safety-related notices have the following sig- nificance: DANGER Your life or physical wellbeing are in serious danger if such warnings are ignored.  Follow the prevention instructions carefully.
  • Page 7 AMI Deltacon DG Safety Instructions Warning Signs The importance of the warning signs in this manual. Electrical shock hazard Corrosive Harmful to health Flammable Warning general Attention general A-96.250.491 / 080416...

  • Page 8: General Safety Regulations

    AMI Deltacon DG Safety Instructions 1.2. General Safety Regulations Legal The user is responsible for proper system operation. All precautions must be followed to ensure safe operation Requirements of the instrument. Spare Parts Use only official SWAN spare parts and disposables. If other parts are used during the normal warranty period, the manufacturer’s...

  • Page 9: Restriction For Use

    AMI Deltacon DG Safety Instructions 1.3. Restriction for use The AMI Deltacon DG is designed for determination of:  specific (total) conductivity  cation (acid) conductivity after the cation exchanger  degassed conductivity after a sample reboiler in water-steam- cycles only.

  • Page 10: Product Description

    Product Description 2.1. Description of the System Application The AMI Deltacon DG is a complete monitoring system for the au- tomatic, continuous measurement of the conductivity before (spe- Range cific conductivity) and after a cation exchanger (cationic or acid conductivity) and the conductivity of the re-boiled sample (de- gassed conductivity).
  • Page 11 AMI Deltacon DG Product Description Alarm Relay One potential free contact. Alternatively:  Open during normal operation, closed on error and loss of power.  Closed during normal operation, open on error and loss of power. Summary alarm indication for programmable alarm values and in- strument faults.
  • Page 12 AMI Deltacon DG Product Description Degassed After the heat exchanger the sample is heated up to 0.5 °C below the boiling point. Hereby volatile components are removed from the Conductivity: sample, mainly carbon dioxide. Thus, the degassed cation conduc- tivity is a measure of the impurities without a CO2 error.
  • Page 13 AMI Deltacon DG Product Description Fluidics overview Conductivity sensor (sc) Deaeration tube cation Conductivity sensor (cc) exchanger bottle Conductivity sensor (dc) Heat exchanger Heat exchanger pressure Connection tube relief tube Heater Heater pressure relief tube Sample inlet Flow cell 1, (sc, cc)

  • Page 14: Instrument Specification

    AMI Deltacon DG Product Description 2.2. Instrument Specification Power Supply Voltage: 100–127 VAC and 200–240 VAC (± 10%) 50/60 Hz (± 5%) Max. current: Voltage at 90 VAC: 12 A Voltage at 140 VAC: 19 A Voltage higher than 180 VAC: 9.5 A...
  • Page 15 AMI Deltacon DG Product Description Dimensions Panel: Stainless steel Dimensions: 570 x 850 x200 mm Screws: 8 mm Weight: 26 kg 6x Ø10 A-96.250.491 / 080416...

  • Page 16: Instrument Overview

    AMI Deltacon DG Product Description 2.3. Instrument Overview Panel Cation exchanger Transmitter Sample inlet Specific conductivity sensor Degasser controller Cation conductivity sensor Degassed conductivity sensor Flow cell 1, sc, cc Flow cell 2, dc Flow meter Heater Flow regulating valve...

  • Page 17: Installation

    AMI Deltacon DG Installation Installation 3.1. Installation Checklist Monitors Check Instrument’s specification must conform to your AC power ratings. Do not turn on power until instructed to do so. On site require- 100–127 VAC, 200–240 VAC (± 10%), 50/60 Hz (± 5%) isolated ments power outlet with ground connection and 2.6 kW...

  • Page 18: Mounting Of Instrument Panel

    AMI Deltacon DG Installation 3.2. Mounting of Instrument Panel The first part of this chapter describes the preparing and placing of the system for use.  The instrument must only be installed by trained personnel.  Mount the instrument in vertical position.
  • Page 19 AMI Deltacon DG Installation Stainless steel tube Compression cone Union nut Body Compression ferrule Tightened connection Waste Connect the waste tube to the waste funnel. CAUTION Hot water and steam Hot water and steam leaves the sample outlet, PVC tubes may be damaged.

  • Page 20: Installation Of Cation Exchanger

    AMI Deltacon DG Installation 3.4. Installation of Cation Exchanger Cation ex- The bottle containing the cation exchanger is delivered separately. For transport, an empty bottle is installed into the bottle holder. changer bottle Flow cell Bottle holder Manual deaeration valve...

  • Page 21: Electrical Connections

    AMI Deltacon DG Installation 3.5. Electrical Connections WARNING Electrical hazard.  Always turn off AC power before manipulating electric parts.  Grounding requirements: Only operate the instrument from an power outlet which has a ground connection.  Make sure the power specification of the instrument corre- sponds to the power on site.
  • Page 22 AMI Deltacon DG Installation WARNING External Voltage. External supplied devices connected to relay 1 or 2 or to the alarm relay can cause electrical shocks  Make sure that the devices connected to the following con- tacts are disconnected from the power before resuming in- stallation.

  • Page 23: Connection Diagram

    AMI Deltacon DG Installation 3.5.1 Connection Diagram CAUTION Use only the terminals shown in this diagram, and only for the mentioned purpose. Use of any other terminals will cause short circuits with possible corresponding consequences to material and personnel. A-96.250.491 / 080416...

  • Page 24: Power Supply

     Mains cable to comply with standards IEC 60227 or IEC 60245; flammable rating FV1  Mains equipped with an external switch or circuit-breaker – near the instrument – easily accessible to the operator – marked as interrupter for AMI Deltacon DG A-96.250.491 / 080416...

  • Page 25: Input

    AMI Deltacon DG Installation 3.6. Input NOTICE: Use only potential-free (dry) contacts. The total resistance (sum of cable resistance and resistance of the relay contact) must be less than 50 Ω. Terminals 16/42 For programming see Program Overview, p. 3.7.

  • Page 26: Relay 1 And 2

    AMI Deltacon DG Installation 3.7.2 Relay 1 and 2 NOTICE: Max. load 1 A / 250 VAC Relay 1 and 2 can be configured as normally open or as normally closed. Standard for both relays is normally open. To configure a Relay as normally closed, set the jumper in the upper position.
  • Page 27 AMI Deltacon DG Installation CAUTION Risk of damage of the relays in the AMI Transmitter due to heavy inductive load. Heavy inductive or directly controlled loads (solenoid valves, dosing pumps) may destroy the relay contacts.  To switch inductive loads > 0.1 A use an AMI relay box avail- able as an option or suitable external power relays.

  • Page 28: Signal Outputs

    AMI Deltacon DG Installation 3.8. Signal Outputs 3.8.1 Signal Output 1 and 2 (current outputs)  NOTICE: Max. burden 510 If signals are sent to two different receivers, use signal isolator (loop isolator). Signal output 1: Terminals 14 (+) and 13 (-)

  • Page 29: Signal Output 3

    AMI Deltacon DG Installation 3.9.1 Signal Output 3 Terminal 38 (+) and 37 (-). Requires the additional board for the third signal output 0/4–20 mA PCB. The third signal output can be operated as current source or current sink (switchable via switch [A]). For detailed information see the corresponding installation instruction.

  • Page 30: Profibus, Modbus Interface

    AMI Deltacon DG Installation 3.9.2 Profibus, Modbus Interface Terminal 37 PB, Terminal 38 PA To connect several instruments by means of a network or to config- ure a PROFIBUS DP or a MODBUS connection, consult the PRO- FIBUS/MODBUS manual. Use appropriate network cable.

  • Page 31: Instrument Setup

    AMI Deltacon DG Instrument Setup Instrument Setup After the analyzer is installed according to the previous instructions, connect the power cord. Do not switch on power, yet! 4.1. Establish sample flow 1 Open flow regulating valve, see Fluidics overview, p.
  • Page 32 AMI Deltacon DG Instrument Setup  Temperature compensation: The default setting for sensor 1 (specific conductivity) is ammonia. Calculations Menu 5.1.1.1 Set <Calculations> to “Yes” if you want to have pH and alkalization agent calculated and displayed. Measuring unit Menu 5.1.1.2 Set the <Measuring unit>...

  • Page 33: Operation

    AMI Deltacon DG Operation Operation 5.1. Keys Exit Enter to exit a menu or command (rejecting any changes) to move back to the previous menu level to move DOWN in a menu list and to decrease digits to move UP in a menu list and to increase digits...
  • Page 34 AMI Deltacon DG Operation Example of Display 2 15:20:18 8.455 µS 0.178 µS 22.1°C 9.5 l/h 35.8°C normal operation HOLD input closed or cal delay: Instrument on hold (shows status of signal outputs). input closed: control/limit is interrupted (shows status of signal outputs).

  • Page 35: Software Structure

    AMI Deltacon DG Operation 5.3. Software Structure Main Menu Messages Diagnostics Maintenance Operation Installation Menu Messages 1 Messages Reveals pending errors as well as an event history Pending Errors (time and state of events that have occurred at an Maintenance List earlier point of time).

  • Page 36: Changing Parameters And Values

    AMI Deltacon DG Operation 5.4. Changing Parameters and values Changing The following example shows how to change the logger interval: parameters 1 Select the parameter you want to Sensors Logger 5.1.2 4.4.1 change. Sensor type FOME Log interval 30 min 2 Press [Enter] Disinf.

  • Page 37: Maintenance

    AMI Deltacon DG Maintenance Maintenance WARNING Stop operation before maintenance.  Stop sample flow.  Shut off power of the instrument. 6.1. Maintenance Schedule Preventive maintenance frequency depends on water quality, on the application, and on national regulations. Control of certain set-point: Swimming pools, sanitary water: Monthly ...

  • Page 38: Maintenance Of The Sensor

    AMI Deltacon DG Maintenance 6.3. Maintenance of the Sensor Conductivity sensor Security pin unlocked Locking screw open Security pin locked Alignment marks Locking screw closed 6.3.1 Remove the Sensor from the Flow Cell To remove the sensor form the flow cell proceed as follows: 1 Press the security pin [B] down.

  • Page 39: Replace The Ion Exchanger

    AMI Deltacon DG Maintenance 6.4. Replace the Ion Exchanger The resin of the ion exchanger changes its color from dark violet to brown if the capacity is exhausted. The resin should be changed before no violet resin is left or the cation conductivity rises above the normal value.
  • Page 40 AMI Deltacon DG Maintenance 9 Open the flow regulating valve and adjust the sample flow. 10 After a few minutes close the manual deaeration valve. 11 Pre-rinse the new cation exchanger resin until the display shows stable measuring values. Operation time 1 liter Swan resin This graphic shows the average exhaust time (flow 6 l/h) and must be verified by the user.

  • Page 41: Changing The Inlet Filter

    AMI Deltacon DG Maintenance 6.5. Changing the inlet filter The inlet filter of the cation exchanger prevents the resin from en- tering the flow cell. It is located in the inlet filter holder [B]. Bottle holder Inlet filter holder Allen screws Inlet filter 1 Stop sample flow.

  • Page 42: Replacing Fuses

    AMI Deltacon DG Maintenance 6.6. Replacing Fuses 6.6.1 Fuses in the AMI Transmitter WARNING External Voltage. External supplied devices connected to relay 1 or 2 or to the alarm relay can cause electrical shocks  Make sure that the devices connected to the following con- tacts are disconnected from the power before resuming in- stallation.

  • Page 43: Fuses In The Degasser Control Unit

    AMI Deltacon DG Maintenance 6.6.2 Fuses in the Degasser Control Unit WARNING Electrical hazard.  Always turn off AC power before manipulating electric parts. 12.5 AT/250V Heater 12.5 AT/250V Heater 6.7. Longer Stop of Operation 1 Stop sample flow. 2 Slightly squeeze the ion exchanger bottle.

  • Page 44: Troubleshooting

    AMI Deltacon DG Troubleshooting Troubleshooting This chapter provides some hints to make troubleshooting easier. For any detailed information how to replace or clean parts please see chapter Maintenance, p. For any detailed information how to program the instrument please see chapter Program List and Explanations, p. 57.

  • Page 45: Error List

    AMI Deltacon DG Troubleshooting 7.1. Error List Error Non-fatal Error. Indicates an alarm if a programmed value is ex- ceeded. Such Errors are marked E0xx (bold and black). Fatal Error (blinking symbol) Control of dosing devices is interrupted. The indicated measured values are possibly incorrect.
  • Page 46 AMI Deltacon DG Troubleshooting Error Description Corrective action Cond. 1 Alarm high – check process E001 – check programmed value, see 5.3.1.1, p. 66 Cond. 1 Alarm low – check process E002 – check programmed value, see 5.3.1.1, p. 66 Cond.
  • Page 47 AMI Deltacon DG Troubleshooting Error Description Corrective action Temp. 1 disconnected – Check wiring of temperature sensor E012 – Check temperature sensor Case Temp. high – check case/environment temperature E013 – check programmed value, see 5.3.1.4.1, p. 70 Case Temp. low –...
  • Page 48 AMI Deltacon DG Troubleshooting Error Description Corrective action pH Alarm high – check process E033 – check programmed value, see 5.3.1.1.4.1, p. 68 pH Alarm low – check process E034 – check programmed value, see 5.3.1.1.4.25, p. 68 Alkali Alarm high –...

  • Page 49: Program Overview

    AMI Deltacon DG Program Overview Program Overview For explanations about each parameter of the menus see Program List and Explanations, p. 53  Menu 1 Messages is always accessible for everybody. Pass- word protection possible. No settings can be modified.

  • Page 50: Diagnostics (Main Menu 2)

    AMI Deltacon DG Program Overview 8.2. Diagnostics (Main Menu 2) Identification Designation AMI DelataconP * Menu numbers 2.1* Version V6.00-11/15 Degasser Factory Test Instrument 2.1.4.1* 2.1.4* Motherboard Front End Degasser 1 Degasser 2 Operating Time Years / Days / Hours / Minutes / Seconds 2.1.5.1*...

  • Page 51: Maintenance (Main Menu 3)

    AMI Deltacon DG Program Overview Sample Sample ID 2.3.1* 2.3* Sample Flow Sample Flow 2.3.2.1* 2.3.2* Raw value Sample Temp. Temp.1 2.3.3.1* 2.3.3* (Pt1000) Temp.2 (Pt1000) Temp.3 (Pt1000) Resin capacity (%) Change of resin (date) I/O State Alarm Relay 2.4.1* 2.4*...

  • Page 52: Operation (Main Menu 4)

    AMI Deltacon DG Program Overview 8.4. Operation (Main Menu 4) Sensors Filter Time Const. 4.1.1* 4.10* Hold after Cal 4.1.2* Relay Contacts Alarm Relay Cond. 1 (sc) Alarm High 4.2.1.1.1* 4.2* 4.2.1* 4.2.1.1* Alarm Low 4.2.1.1.25* Hysteresis 4.2.1.1.35* Delay 4.2.1.1.45* Cond.

  • Page 53: Installation (Main Menu 5)

    AMI Deltacon DG Program Overview 8.5. Installation (Main Menu 5) Sensors Miscellaneous Calculations 5.1.1.1* 5.1* 5.1.1* Maes. unit 5.1.1.2* Monitoring of resin 5.1.1.3* Resin Capacity 5.1.1.4* Volume of resin 5.1.1.5* Sensor parameters Sensor 1 Cell Constant 5.1.2.1.1* 5.1.2* 5.1.2.1* Temp. Corr.

  • Page 54: Signal Outputs

    AMI Deltacon DG Program Overview Cond. 3 (cc) Alarm High 5.3.1.1.3.1* 5.3.1.1.2* Alarm Low 5.3.1.1.3.25* Hysteresis * 5.3.1.1.3.35 Delay 5.3.1.1.3.45* Sample Temp. Temp. 1 Alarm High 5.3.1.2.1.1* 5.3.1.2* 5.3.1.2.1* Alarm Low 5.3.1.2.1.25* Temp. 2 Alarm High 5.3.1.2.2.1* 5.3.1.2.2* Alarm Low 5.3.1.2.2.25*...

  • Page 55: Program List And Explanations

    AMI Deltacon DG Program List and Explanations Program List and Explanations 1 Messages 1.1 Pending Errors 1.1.5 Provides the list of active errors with their status (active, acknowl- edged). If an active error is acknowledged, the alarm relay is active again.
  • Page 56 AMI Deltacon DG Program List and Explanations 2.2.1.3 Sensor 3: Shows the Current value in µS Raw value in µS Cell Constant 2.2.2 Miscellaneous: 2.2.2.1 Case Temp: Shows the current temperature in [°C] inside the trans- mitter. 2.2.4 Degasser 2.2.4.1 Heater: Current sample temperature in °C.
  • Page 57 AMI Deltacon DG Program List and Explanations 2.3 Sample 2.3.1 Sample ID: Shows the identification assigned to a sample. This identification is defined by the user to identify the location of the sample. 2.3.2 Sample Flow: Shows the current sample flow in l/h and the Raw Value in Hz.

  • Page 58: Maintenance

    AMI Deltacon DG Program List and Explanations 3 Maintenance 3.1 Simulation To simulate a value or a relay state, select the  alarm relay,  relay 1/2  signal output 1/2 with the [ ] or [ ] key. Press the [Enter] key.

  • Page 59: Operation

    AMI Deltacon DG Program List and Explanations 4 Operation 4.1 Sensors 4.1.1 Filter Time Constant: Used to damp noisy signals. The higher the filter time constant, the slower the system reacts to changes of the measured value. Range: 5–300 Sec 4.1.2...
  • Page 60 AMI Deltacon DG Program List and Explanations 4.4 Display Process values are displayed on two screens. Toggle screens with the [ ] key. Each screen displays max. 3 process values. 4.4.1 Screen 1 4.4.1.1 Row 1 4.4.1.2 Row 2 4.4.1.3...

  • Page 61: Installation

    AMI Deltacon DG Program List and Explanations 5 Installation 5.1 Sensors 5.1.1 Miscellaneous: 5.1.1.1 Calculations: Select “yes” if pH and ammonia concentrations should be calculated. pH and ammonia are now available on screen 1 or 2, on the signal outputs and as alarm or limit values.
  • Page 62 AMI Deltacon DG Program List and Explanations 5.1.2.3 Sensor 3 5.1.2.3.1 Cell Constant: Enter the cell constant printed on the sensor label. 5.1.2.3.2 Temp. Corr: Enter the temperature correction printed on the sensor label. 5.1.2.3.3 Cable length: Enter the cable length. Set the cable length to 0.0 m if the sensors are installed in the flow cell on the AMI monitor.
  • Page 63 AMI Deltacon DG Program List and Explanations 5.2.1.2 Current Loop: Select the current range of the signal output. Make sure the connected device works with the same current range. Available ranges: 0–20 mA or 4–20 mA 5.2.1.3 Function: Define if the signal output is used to transmit a process value or to drive a control unit.
  • Page 64 AMI Deltacon DG Program List and Explanations 5.2.1.40 Scaling: Enter beginning and end point (Range low & high) of the linear or logarithmic scale. In addition, the midpoint for the bilinear scale. Parameter Cond. 1 (sc): Range low: 0 –3000 S 5.2.1.40.10...
  • Page 65 AMI Deltacon DG Program List and Explanations As control Signal outputs can be used for driving control units. We distinguish different kinds of controls: output  P-controller: The controller action is proportional to the devia- tion from the setpoint. The controller is characterized by the P-Band.
  • Page 66 AMI Deltacon DG Program List and Explanations Control upwards or downwards Setpoint: User-defined process value for the selected parameter. P-Band: Range below (upwards control) or above (downwards con- trol) the set-point, within the dosing intensity is reduced from 100% to 0% to reach the setpoint without overshooting.
  • Page 67 AMI Deltacon DG Program List and Explanations 5.2.1.43 Control Parameters: if Parameters = Difference 5.2.1.43.16 Setpoint Range: 0 –3000 S 5.2.1.43.26 P-Band: Range: 0 –3000 S 5.2.1.43 Control Parameters: if Parameters = Sample flow 5.2.1.43.17 Setpoint Range: 0 –20 l/h 5.2.1.43.27...
  • Page 68 AMI Deltacon DG Program List and Explanations 5.3 Relay Contacts 5.3.1 Alarm Relay: The alarm relay is used as cumulative error indicator. Under normal operating conditions the contact is active. The contact is inactive at:  Power loss  Detection of system faults like defective sensors or electronic parts ...
  • Page 69 AMI Deltacon DG Program List and Explanations 5.3.1.1.1.35 Hysteresis: Within the hyst. range, the relay does not switch. This prevents damage of relays contacts when the measured value fluc- tuates around the alarm value. Range. 0 –3000 S 5.3.1.1.1.45 Delay: Duration, the activation of the alarm relay is retarded after the measuring value has risen above/fallen below the programmed alarm.
  • Page 70 AMI Deltacon DG Program List and Explanations 5.3.1.1.4 pH (if Calculations = yes) 5.3.1.1.4.1 Alarm High: If the measured value rises above the alarm high val- ue, the alarm relay is activated and E033, is displayed in the mes- sage list.
  • Page 71 AMI Deltacon DG Program List and Explanations 5.3.1.2 Sample Temp. 5.3.1.2.1 Temp. 1 5.3.1.2.1.1 Alarm High: If the measured value rises above the alarm high val- ue, the alarm relay is activated and E007, is displayed in the mes- sage list.
  • Page 72 AMI Deltacon DG Program List and Explanations 5.3.1.3 Sample Flow: Define at which sample flow an alarm should be is- sued. 5.3.1.3.1 Flow Alarm: Program if the alarm relay should be activated if there is a flow alarm. Choose between yes or no. The flow alarm will always be indicated in the display, pending error list, saved in the message list and the logger.
  • Page 73 AMI Deltacon DG Program List and Explanations 5.3.2 & 3 Relay 1 and 2: The contacts can be set as normally open or nor- mally closed with a jumper. See Relay 1 and 2, p. 24. The function of relay contacts 1 or 2 is defined by the user.
  • Page 74 AMI Deltacon DG Program List and Explanations 5.3.2.400 Hysteresis: within the hysteresis range, the relay does not switch. This prevents damage of relay contacts when the measured value fluctuates around the alarm value. Parameter Range 0.000–3000 S Cond. 1 (sc) 0.000–3000 S...
  • Page 75 AMI Deltacon DG Program List and Explanations 5.3.2.32 Settings: Choose the respective actuator:  Time proportional  Frequency  Motor valve 5.3.2.32.1 Actuator = Time proportional Examples of metering devices that are driven time proportional are solenoid valves, peristaltic pumps.
  • Page 76 AMI Deltacon DG Program List and Explanations 5.3.2.1 Function = Timer: The relay will be activated repetitively depending on the pro- grammed time scheme. 5.3.2.24 Mode: Operating mode (interval, daily, weekly) 5.3.2.24 Interval 5.3.2.340 Interval: The interval can be programmed within a range of 1–1’440 min.
  • Page 77 AMI Deltacon DG Program List and Explanations 5.3.2.24 daily The relay contact can be activated daily, at any time of a day. 5.3.2.341 Start time: to set the start time proceed as follows: 1 Press [Enter], to set the hours.
  • Page 78 AMI Deltacon DG Program List and Explanations 5.3.4 Input: The functions of the relays and signal outputs can be de- fined depending on the position of the input contact, i.e. no function, closed or open. 5.3.4.1 Active: Define when the input should be active: Input is never active.
  • Page 79 AMI Deltacon DG Program List and Explanations 5.4 Miscellaneous 5.4.1 Language: Set the desired language. Available settings: German /English/French/Spanish/Italian 5.4.2 Set defaults: Reset the instrument to factory default values in three different ways:  Calibration: Sets calibration values back to default. All other values are kept in memory.
  • Page 80 AMI Deltacon DG Program List and Explanations 5.5 Interface Select one of the following communication protocols. Depending on your selection, different parameters must be defined. 5.5.1 Protocol: Profibus 5.5.20 Device address: Range: 0–126 5.5.30 ID-Nr.: Range: Analyzer; Manufacturer; Multivariable 5.5.40...

  • Page 81: Material Safety Data Sheets

    AMI Deltacon DG Material Safety Data sheets Material Safety Data sheets 10.1. Cation Exchanger Resin SWAN Product name: Cation Exchange Resin Catalogue number: A-82.841.030 and A-82.841.031 Download The current Material Safety Data Sheets (MSDS) for the above list- ed Reagents are available for downloading at www.swan.ch.

  • Page 82: Default Values

    AMI Deltacon DG Default Values Default Values Operation: Sensors: Filter Time Const.:..............20 Sec Hold after Cal.:................. 0 sec Relay Contacts Alarm Relay ..........same as in Installation Relay 1/2 ............same as in Installation Input.............. same as in Installation Logger: Logger Interval:..............
  • Page 83 AMI Deltacon DG Default Values Sample Temp: (Temp. 1, Temp. 2 and Temp. 3) Alarm High:................160 °C Alarm Low:................. 0 °C Sample Flow: Flow Alarm.................. yes Alarm high: ................16 l/h Alarm low:..................5 l/h Case temp. high: ..............65 °C Case temp.
  • Page 84 AMI Deltacon DG Default Values Input: Active ................when closed Signal Outputs ................hold Output/Control ................off Fault....................no Delay..................10 Sec Miscellaneous Language:................English Set default:..................no Load firmware: ................no Password: ............for all modes 0000 Sample ID: ............... - - - - - - - - Line break detection ..............no...
