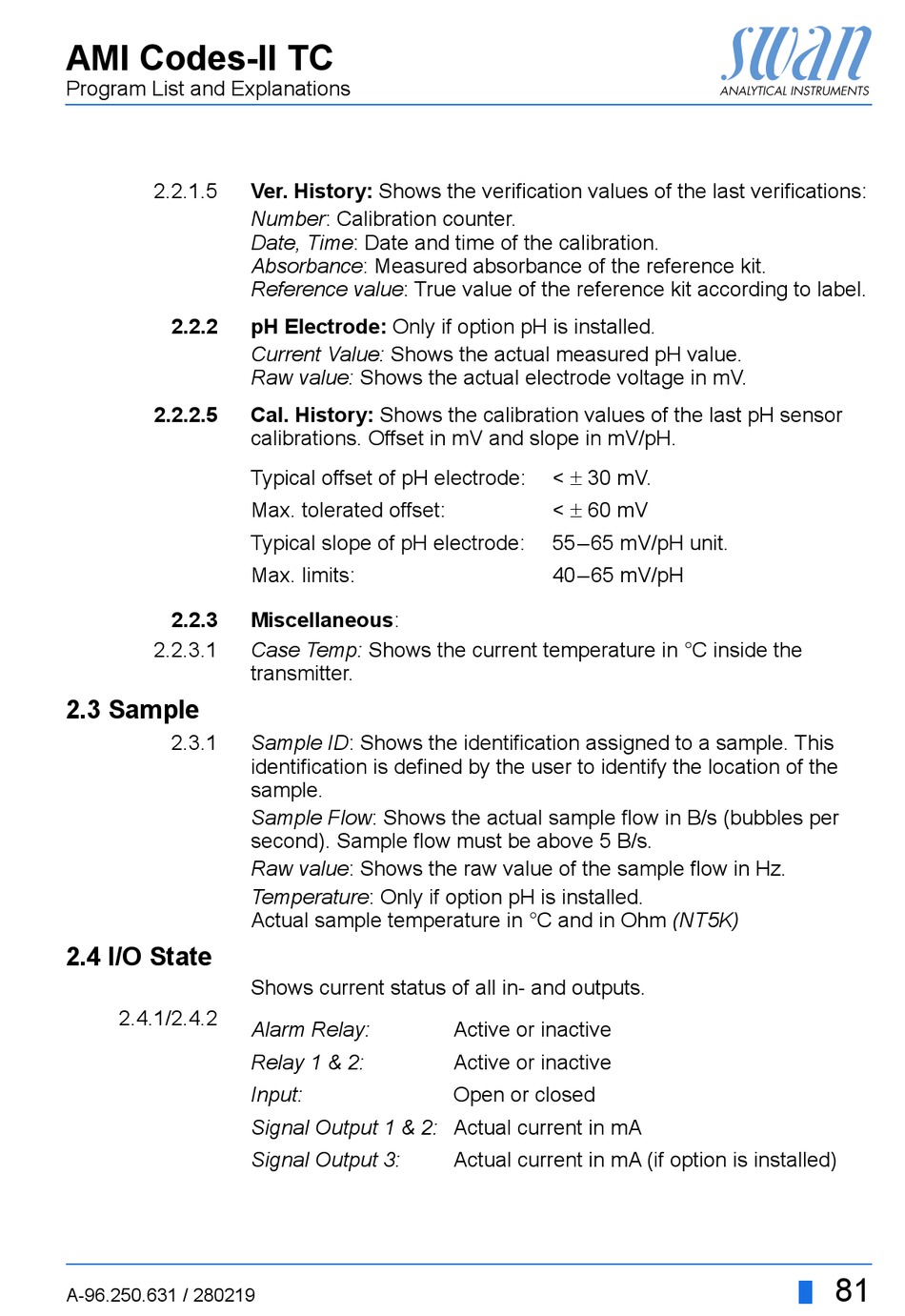

Ver. History: Shows the verification values of the last verifications:
Number: Calibration counter.
Date, Time: Date and time of the calibration.
Absorbance: Measured absorbance of the reference kit.
Reference value: True value of the reference kit according to label.
pH Electrode: Only if option pH is installed.
Current Value: Shows the actual measured pH value.
Raw value: Shows the actual electrode voltage in mV.
Cal. History: Shows the calibration values of the last pH sensor
calibrations. Offset in mV and slope in mV/pH.
Typical offset of pH electrode:
Max. tolerated offset:
Typical slope of pH electrode:
Max. limits:
Miscellaneous:
Case Temp: Shows the current temperature in °C inside the
transmitter.
Sample ID: Shows the identification assigned to a sample. This
identification is defined by the user to identify the location of the
sample.
Sample Flow: Shows the actual sample flow in B/s (bubbles per
second). Sample flow must be above 5 B/s.
Raw value: Shows the raw value of the sample flow in Hz.
Temperature: Only if option pH is installed.
Actual sample temperature in °C and in Ohm (NT5K)
Shows current status of all in- and outputs.
Alarm Relay:
Relay 1 & 2:
Input:
Signal Output 1 & 2: Actual current in mA
Signal Output 3:
<  30 mV.
<  60 mV
55–65 mV/pH unit.
40–65 mV/pH
Active or inactive
Active or inactive
Open or closed
Actual current in mA (if option is installed)
