AMI Codes-II TC
Maintenance
Assemble
A-96.250.631 / 280219

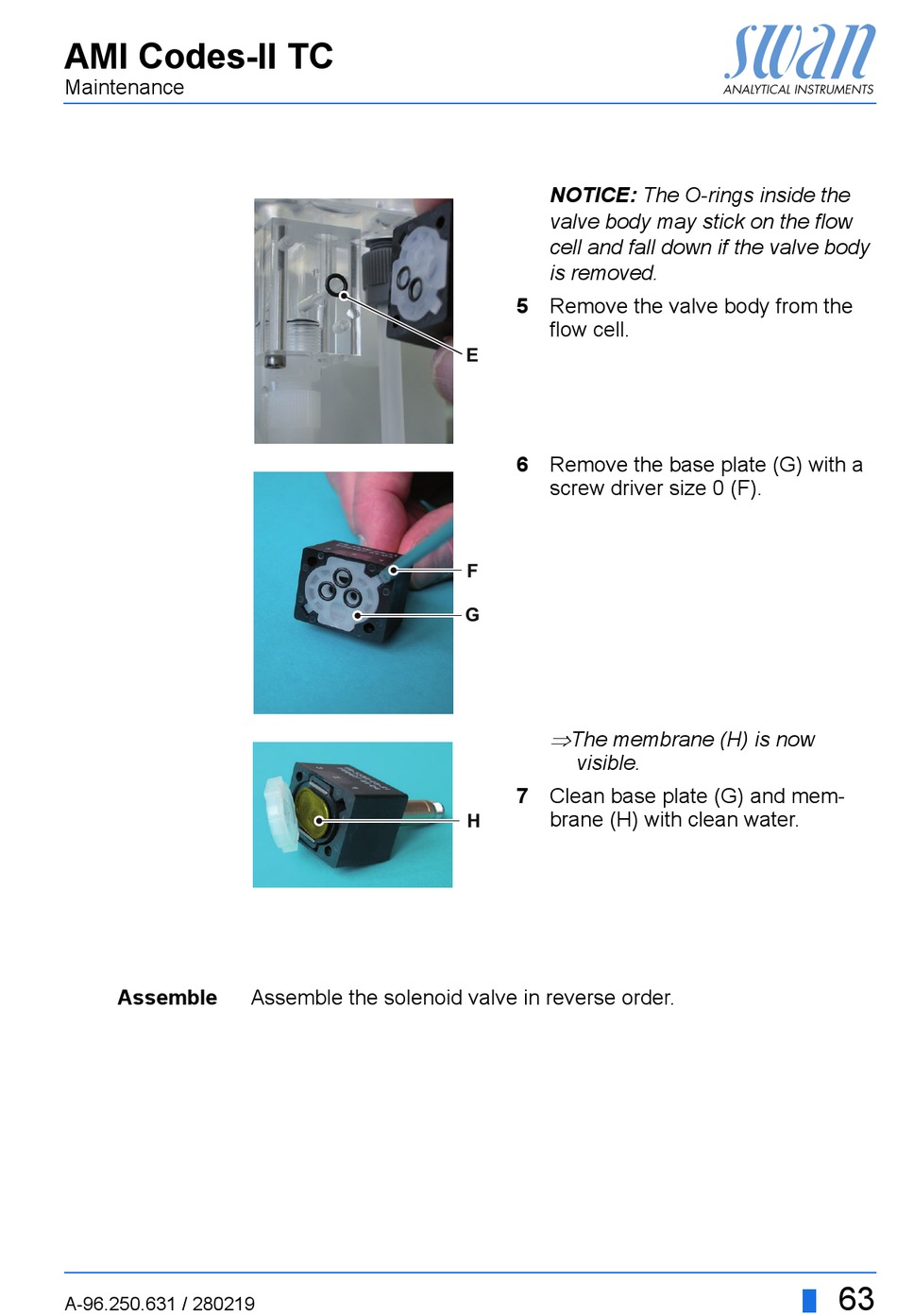

Assemble the solenoid valve in reverse order.
NOTICE: The O-rings inside the
valve body may stick on the flow
cell and fall down if the valve body
is removed.
5 Remove the valve body from the
flow cell.
E
6 Remove the base plate (G) with a
screw driver size 0 (F).
F
G

The membrane (H) is now
visible.
7 Clean base plate (G) and mem-
brane (H) with clean water.
H
63
