AMI Codes-II TC
Installation
3.3.2
3.4.
20

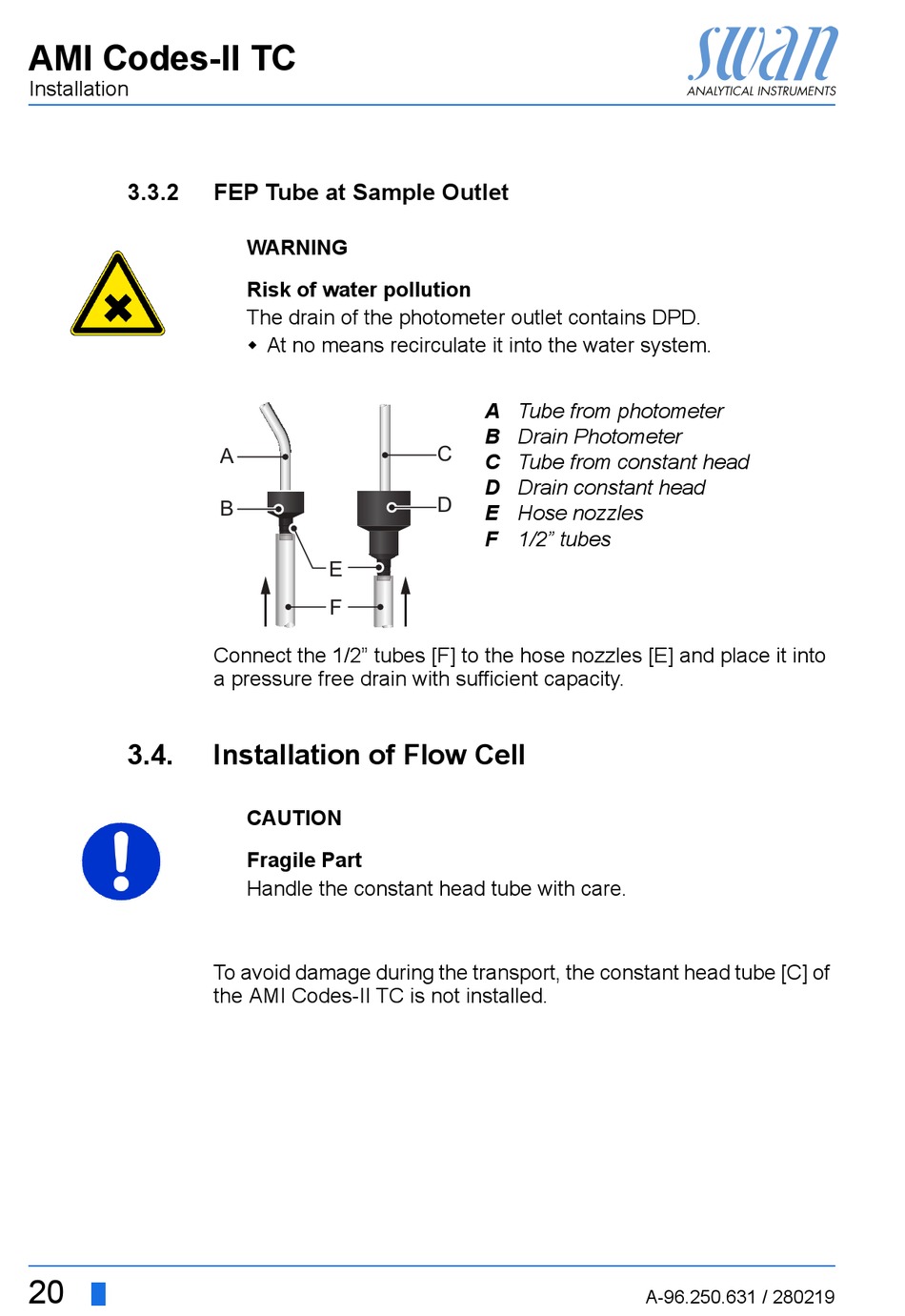

FEP Tube at Sample Outlet

WARNING
Risk of water pollution
The drain of the photometer outlet contains DPD.
 At no means recirculate it into the water system.
A
B
E
F
Connect the 1/2" tubes [F] to the hose nozzles [E] and place it into
a pressure free drain with sufficient capacity.

Installation of Flow Cell

CAUTION
Fragile Part
Handle the constant head tube with care.
To avoid damage during the transport, the constant head tube [C] of
the AMI Codes-II TC is not installed.
A Tube from photometer
B Drain Photometer
C
C Tube from constant head
D Drain constant head
D
E Hose nozzles
F 1/2" tubes
A-96.250.631 / 280219
