Display - Swan Analytical Instruments AMI Codes-II TC Operator's Manual

AMI Codes-II TC
Operation
5.2.
A-96.250.631 / 280219

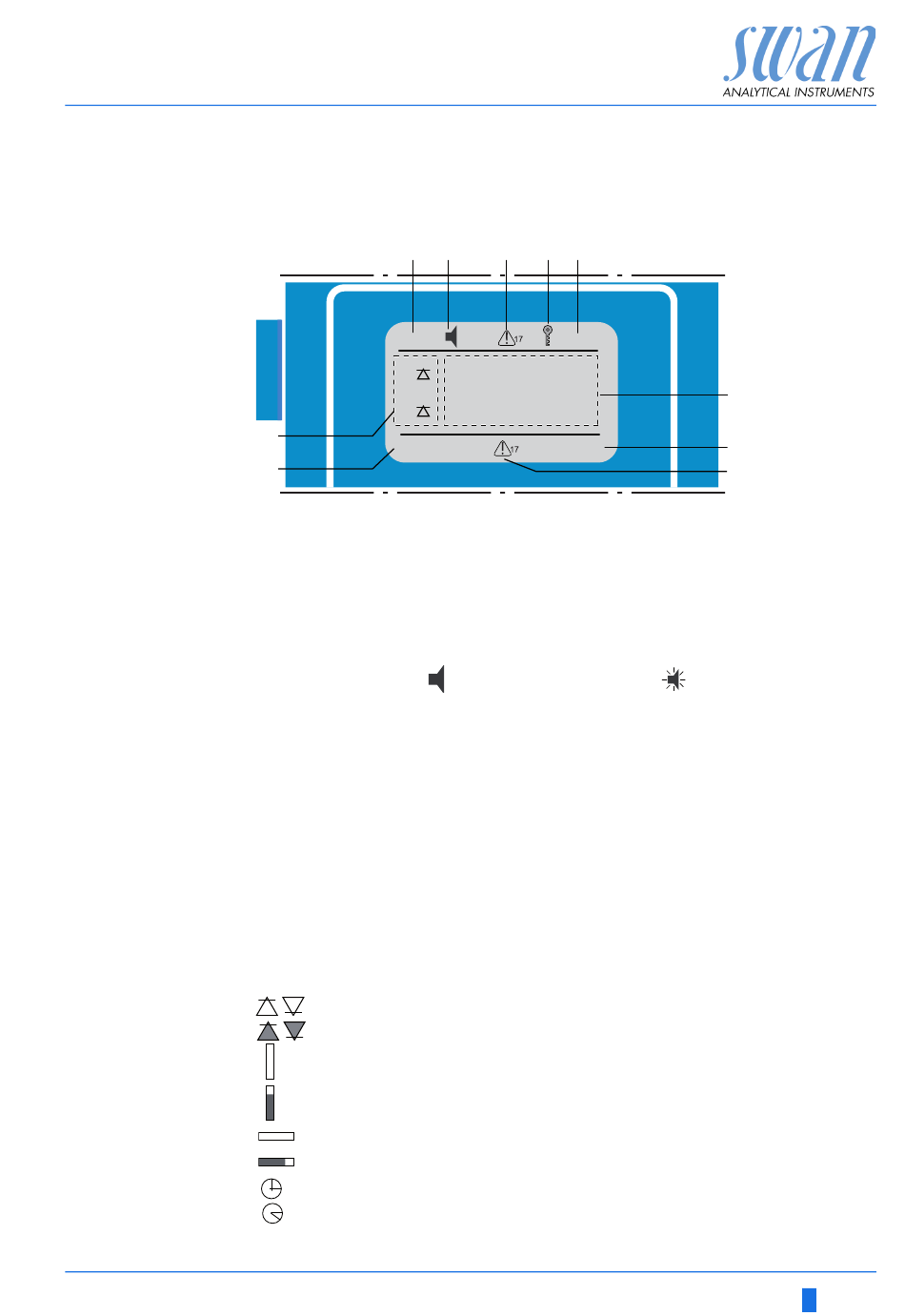

Display

A B
RUN
R1
R2
K
47 B/s
I
A RUN normal operation
HOLD input closed or cal delay: Instrument on hold (shows
status of signal outputs).
OFF input closed: control/limit is interrupted (shows status
of signal outputs).
B ERROR
C Reagent low, indicates remaining reagents in% (17% = 340 ml)
D Keys locked, transmitter control via Profibus
E Time
F Process values
G Sample Temperature
H Cleaning solution low, indicates remaining cleaning solution in %
I Sample flow in B/s
K Relay status
Relay status, symbols
upper/lower limit not yet reached
upper/lower limit reached
control upw./downw. no action
control upw./downw. active, dark bar indicates control intensity
motor valve closed
motor valve: open, dark bar indicates approx. position
timer
timer: timing active (hand rotating)
E
C D
12:56:02
0.22
tc1
ppm
0.26
tc2
ppm
2.68 °C
Error
F
G
H
Fatal Error
