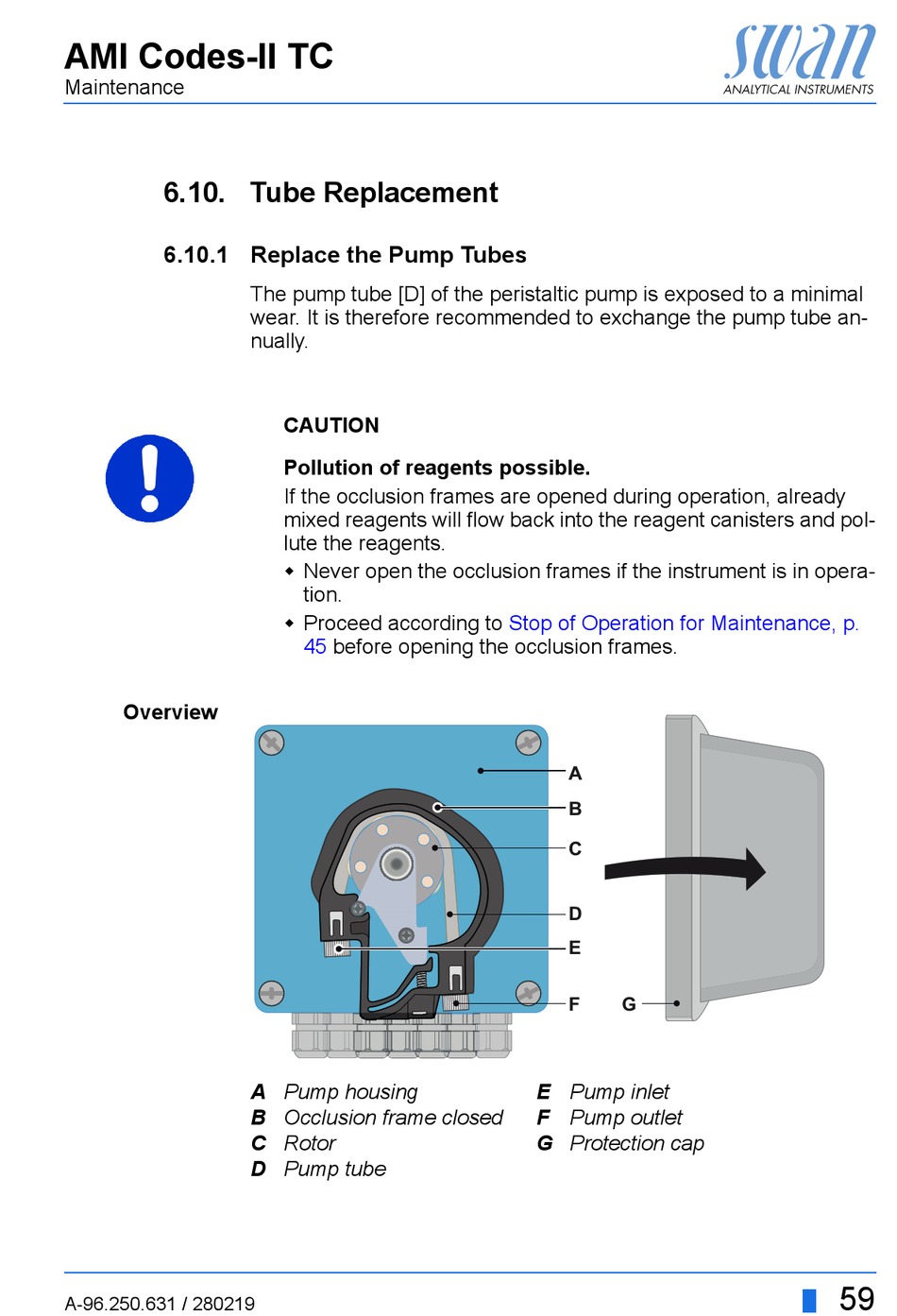

6.10. Tube Replacement

6.10.1 Replace the Pump Tubes

Overview
A-96.250.631 / 280219
The pump tube [D] of the peristaltic pump is exposed to a minimal
wear. It is therefore recommended to exchange the pump tube an-
nually.
CAUTION
Pollution of reagents possible.
If the occlusion frames are opened during operation, already
mixed reagents will flow back into the reagent canisters and pol-
lute the reagents.
 Never open the occlusion frames if the instrument is in opera-
tion.
 Proceed according to
45 before opening the occlusion frames.
A Pump housing
B Occlusion frame closed
C Rotor
D Pump tube
Stop of Operation for Maintenance, p.
A
B
C
D
E
F G
E Pump inlet
F Pump outlet
G Protection cap
59
