Cleaning
6.8.2
A-96.250.631 / 280219
1 Switch off the instrument according to instructions in
Operation for Maintenance, p. 45
2 Remove the constant head cover [A].
3 Pull the overflow tube [B] out of the flow cell block [D]
4 Remove the constant head tube [C] from the flow cell block.
5 Clean all acrylic parts with a soft brush (bottle cleaner) and
soapy water.
6 Remove lime deposits with a common household deliming
agent with standard concentrations.

Assemble the Flow Cell

Level
1 Replace the gasket [D] before reassembling the flow cell.
NOTICE: A film of teflon paste (e.g. Fomblin from Solvay
Solexis) on the gaskets improves tightness and life time.
2 Push the overflow tube [B] through the flow cell block as far as it
reaches the drain.

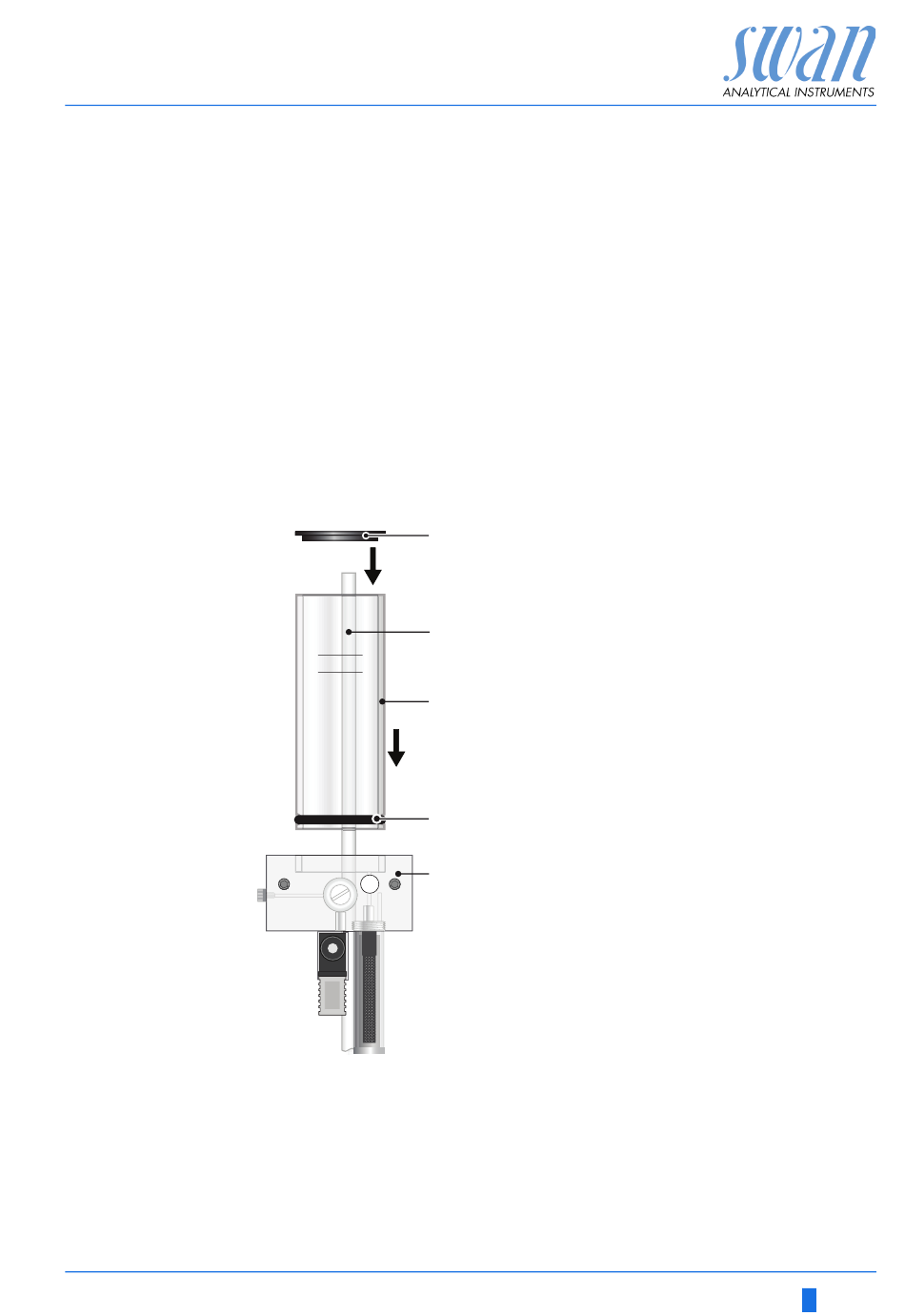

A Constant head cover
A
B Overflow tube
C Constant head tube
D Gasket
E Flow cell block
B
C
D
E
