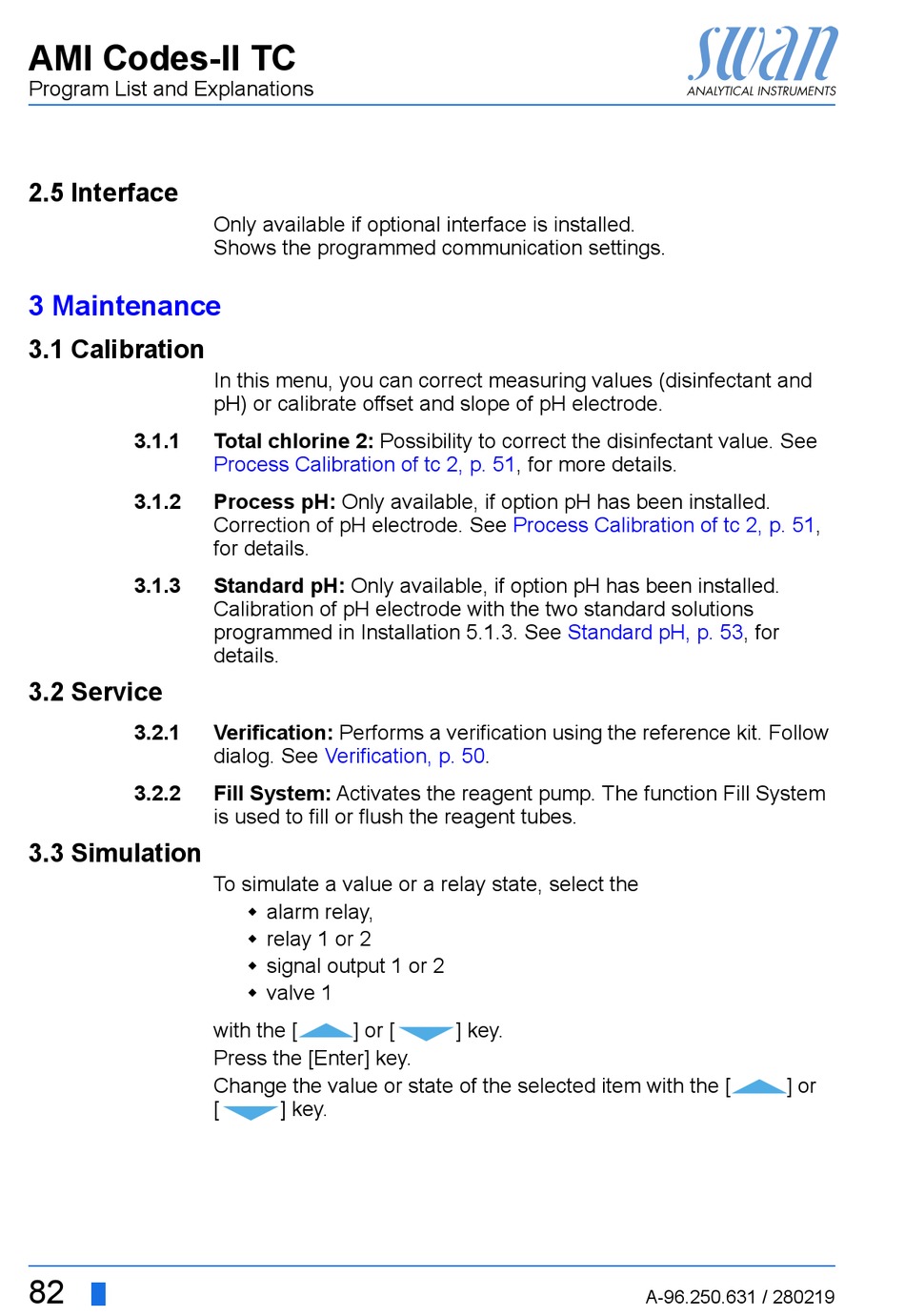

AMI Codes-II TC
Program List and Explanations
2.5 Interface

3 Maintenance

3.1 Calibration
3.1.1
3.1.2
3.1.3
3.2 Service
3.2.1
3.2.2
3.3 Simulation
82
Only available if optional interface is installed.
Shows the programmed communication settings.
In this menu, you can correct measuring values (disinfectant and
pH) or calibrate offset and slope of pH electrode.
Total chlorine 2: Possibility to correct the disinfectant value. See
Process Calibration of tc 2, p.
Process pH: Only available, if option pH has been installed.
Correction of pH electrode. See
for details.
Standard pH: Only available, if option pH has been installed.
Calibration of pH electrode with the two standard solutions
programmed in Installation 5.1.3. See
details.
Verification: Performs a verification using the reference kit. Follow
dialog. See Verification, p.
Fill System: Activates the reagent pump. The function Fill System
is used to fill or flush the reagent tubes.
To simulate a value or a relay state, select the
 alarm relay,
 relay 1 or 2
 signal output 1 or 2
 valve 1
with the [ ] or [
Press the [Enter] key.
Change the value or state of the selected item with the [
[ ] key.
51, for more details.
Process Calibration of tc 2, p.
Standard pH, p.
50.
] key.
51,
53, for
] or
A-96.250.631 / 280219
