AMI Codes-II TC
Installation
Process
calibration
3.2.
Mounting
requirements
3.3.
3.3.1
Mounting of
SERTO fitting
A-96.250.631 / 280219
Make 3 manual measurements. Use a high quality photometer,
e.g. Chematest from Swan. Calculate the average value and com-
pare this value with the measuring value of the AMI Monitor. If nec-
essary, correct the value. The zero point is done automatically
before each measurement.

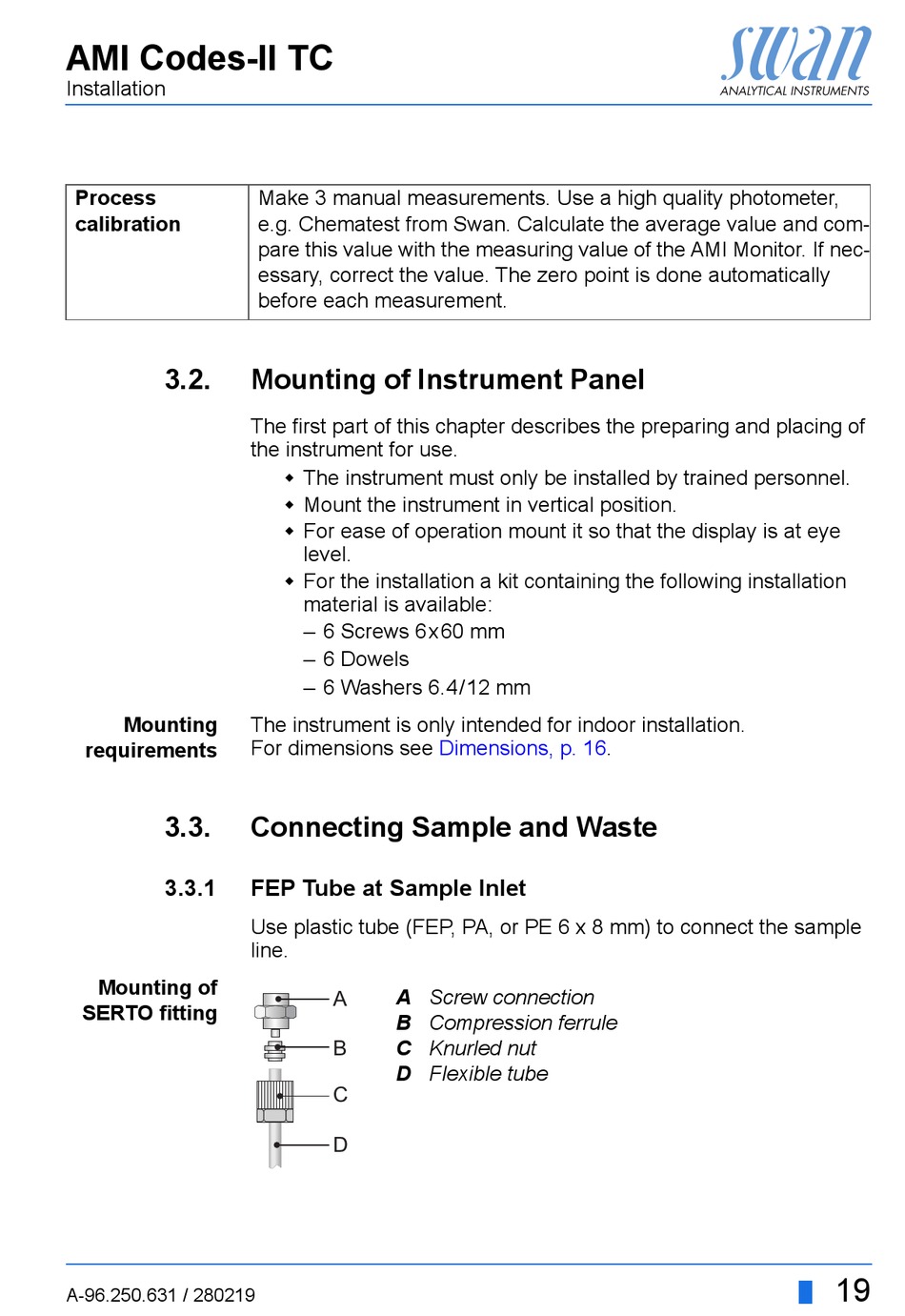

Mounting of Instrument Panel

The first part of this chapter describes the preparing and placing of
the instrument for use.
 The instrument must only be installed by trained personnel.
 Mount the instrument in vertical position.
 For ease of operation mount it so that the display is at eye
level.
 For the installation a kit containing the following installation
material is available:
– 6 Screws 6x60 mm
– 6 Dowels
– 6 Washers 6.4/12 mm
The instrument is only intended for indoor installation.
For dimensions see

Connecting Sample and Waste

FEP Tube at Sample Inlet

Use plastic tube (FEP, PA, or PE 6 x 8 mm) to connect the sample
line.
A
A
B
C
B
D
C
D
Dimensions, p. 16.
Screw connection
Compression ferrule
Knurled nut
Flexible tube
19
