106
11.3

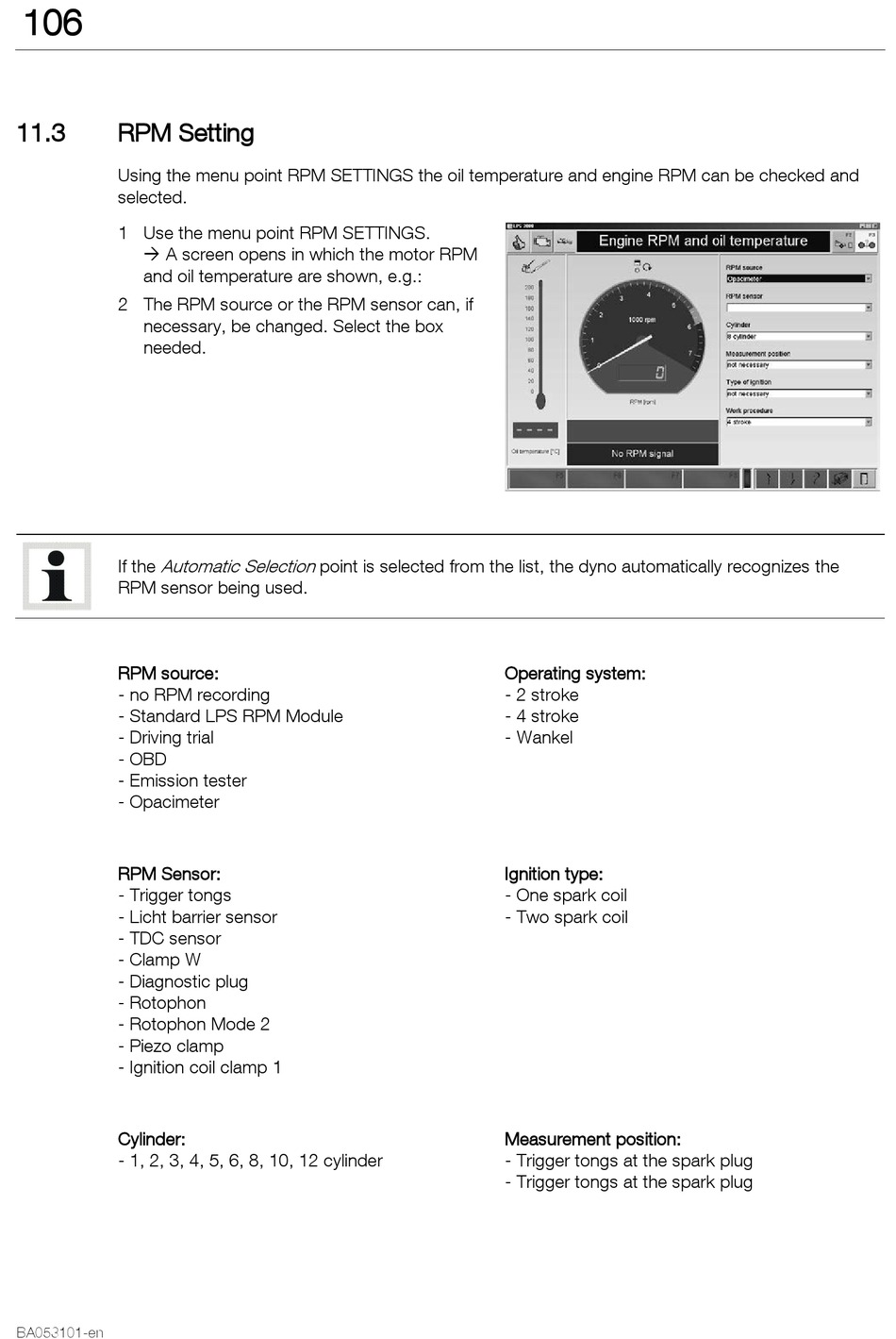

RPM Setting

Pos: 345 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301 LPS 3000 R100/BA/Inhalt: 0523 Drehza hl-E ins te llunge n @ 13\m od_1234863840437_ 75.d ocx @ 340983 @ @ 1
Using the menu point RPM SETTINGS the oil temperature and engine RPM can be checked and
selected.
1 Use the menu point RPM SETTINGS.
 A screen opens in which the motor RPM
and oil temperature are shown, e.g.:
2 The RPM source or the RPM sensor can, if
necessary, be changed. Select the box
needed.
Automatic Selection
If the
RPM sensor being used.
RPM source:
- no RPM recording
- Standard LPS RPM Module
- Driving trial
- OBD
- Emission tester
- Opacimeter
RPM Sensor:
- Trigger tongs
- Licht barrier sensor
- TDC sensor
- Clamp W
- Diagnostic plug
- Rotophon
- Rotophon Mode 2
- Piezo clamp
- Ignition coil clamp 1
Cylinder:
- 1, 2, 3, 4, 5, 6, 8, 10, 12 cylinder
Pos: 346 /-----Format- ----/MANUE LLE R UMBRUCH Se ite numbruch @ 0\mod_ 1134403577687_0.docx @ 1277 @ @ 1
BA053101-en
point is selected from the list, the dyno automatically recognizes the
Operating system:
- 2 stroke
- 4 stroke
- Wankel
Ignition type:
- One spark coil
- Two spark coil
Measurement position:
- Trigger tongs at the spark plug
- Trigger tongs at the spark plug
