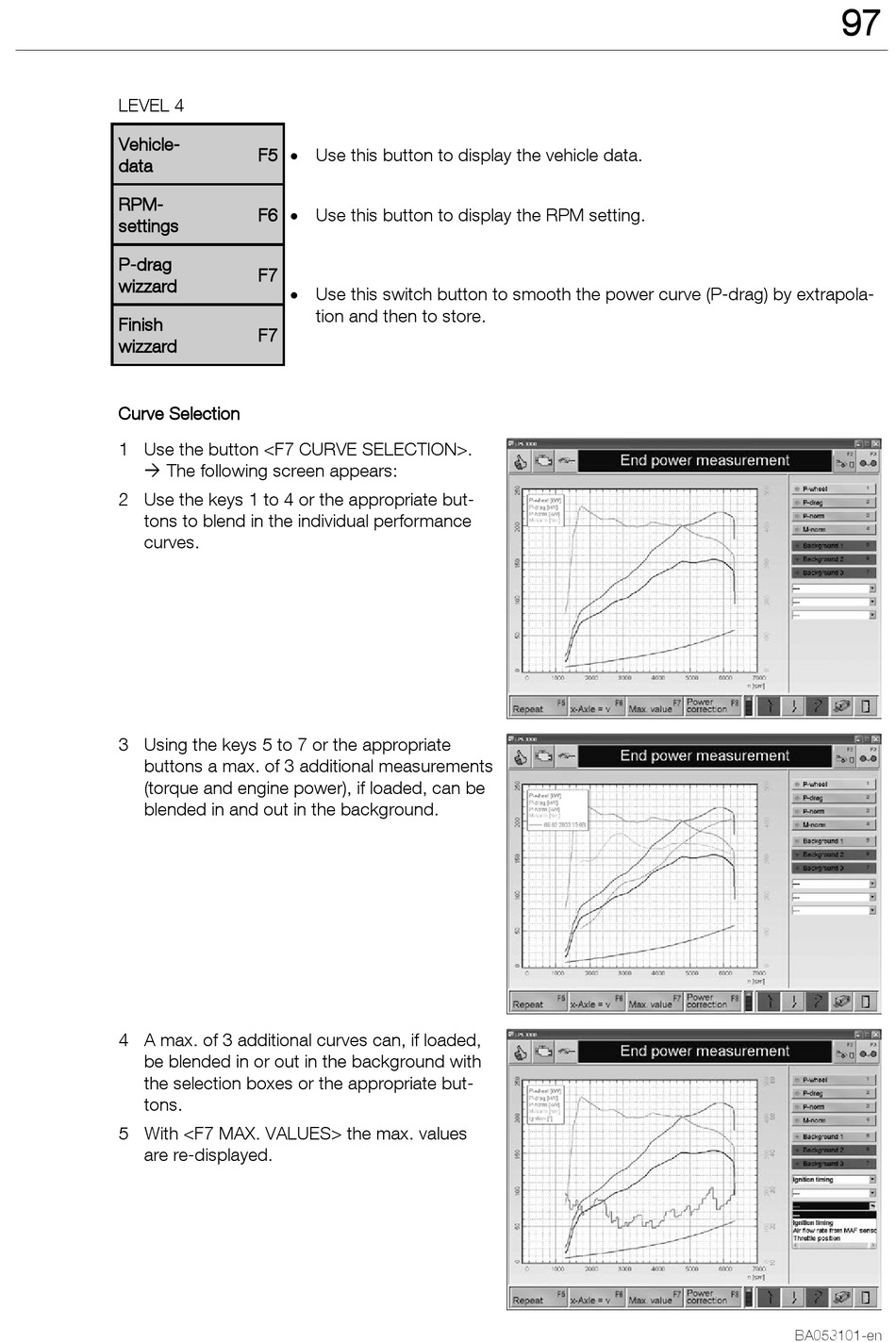

MAHA POWERDYNO MSR Series Original Operating Instructions page 97

LEVEL 4
Vehicle-
F5 • Use this button to display the vehicle data.
data
RPM-
F6 • Use this button to display the RPM setting.
settings
P-drag
F7
wizzard
Finish
F7
wizzard
Curve Selection
1 Use the button <F7 CURVE SELECTION>.
 The following screen appears:
2 Use the keys 1 to 4 or the appropriate but-
tons to blend in the individual performance
curves.
3 Using the keys 5 to 7 or the appropriate
buttons a max. of 3 additional measurements
(torque and engine power), if loaded, can be
blended in and out in the background.
4 A max. of 3 additional curves can, if loaded,
be blended in or out in the background with
the selection boxes or the appropriate but-
tons.
5 With <F7 MAX. VALUES> the max. values
are re-displayed.
• Use this switch button to smooth the power curve (P-drag) by extrapola-
tion and then to store.
97
BA053101-en
