34
Air Pressure
The air pressure is recorded using the interface box and is used for projection of the engine
performance based on DIN 70020, EWG 80/1269, ISO 1585, SAE J1349 or JIS D1001.
Humidity
The humidity is recorded using the interface box and is used for projection of the engine
performance based on DIN 70020, EWG 80/1269, ISO 1585, SAE J1349 or JIS D1001.
The current air temperature , ambient pressure and relative humidity is included in the calculation
with the given standards (DIN 70020, EWG 80/1269, ISO 1585, SAE J1349 and JIS D1001)
Pos: 113 /Te chnis che Dok umenta tion/A lle G eräte/ Überschr ifte n/Üb erschrif te n 1.1.1/O/ Überschr ift 1.1.1: OBD-M odul (Option) @ 13\m od_1234257204298_ 75.docx @ 336543 @ 3 @ 1
2.7.3

OBD Module (Optional)

Pos: 114 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301
LPS 3000 R100/BA/Inhalt: 0523 O BD-Modul (Op tion) (Text) @ 13\mod_ 1234257277407_ 75.docx @ 336659 @ @ 1

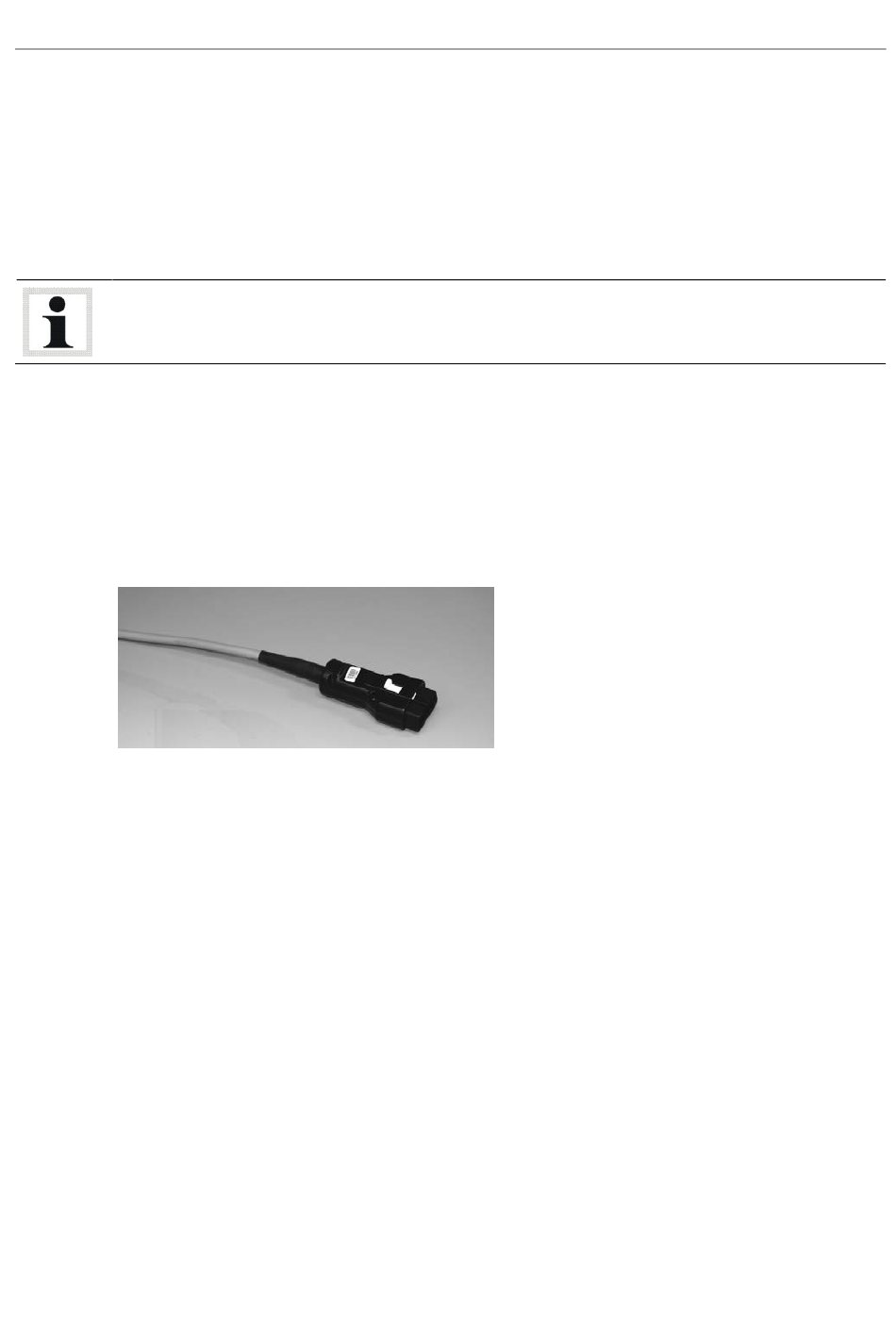

The OBD module is used for recording the OBD data (Plug-in card CAN OBD Module). This OBD
data is different depending on the vehicle manufacturer.
Attachment:
• Position (OBD) on the interface box (see section
Pos: 115 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301
LPS 3000 R100/BA/Inhalt: 0523 O BD-Modul (Op tion) (Bild) @ 13\mod_ 1234258359352_ 0.d ocx @ 336685 @ @ 1
Pos: 116 /Te chnis che Dok umenta tion/A lle G eräte/ Überschr ifte n/Üb erschrif te n 1.1.1/ D/Übersc hrif t 1.1.1: Druck/ Tempera turmod ul ( Option) @ 13\mod_ 1234258432120_75.d ocx @ 336711 @ 3 @ 1
2.7.4

Pressure/Temperature Module (Optional)

Pos: 117 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301
LPS 3000 R100/BA/Inhalt: 0523 Druck/ Temperaturmodul (Op tion) @ 13\mod_ 1234258485560_75.d ocx @ 336737 @ @ 1
The pressure/temperature module is used to record 2 temperatures and 2 pressures (Plug-in card
CAN P2T2).
Pressure 1 + 2
Pressure 1 +2 is user specific. The test range stretches from– 0.9 to + 4.0 bar and can for example
be used to determine the intake pressure, turbocharger pressure, etc.
Exhaust Gas Temperature
The exhaust gas temperature is used as monitor check of the combustion process and to judge its
quality.
The high temperature sensor consists. of a Ni-Cr-Ni thermo element with compensation line.
The measurement range stretches from 0 to 1000 °C.
Pos: 118 /-----Format- ----/MANUE LLE R UMBRUCH Se ite numbruch @ 0\mod_ 1134403577687_0.docx @ 1277 @ @ 1
BA053101-en
"Description of the Interface Box"
).
