Msr 500/3 4Wd - MAHA POWERDYNO MSR Series Original Operating Instructions

Single roller dynamometer
Table of Contents

Advertisement

2.2.6

MSR 500/3 4WD

Pos: 59 / Tec hnische Dokume ntation/Le istungsmess tec hnik/PO WERDYNO/053101
MS R/BA/Inha lt: 0531 MSR 500/ 3 4WD ( Bild) @ 23\m od_1296464996919_ 0.docx @ 968353 @ @ 1
Pos: 60 / Tec hnische Dokume ntation/Le istungsmess tec hnik/PO WERDYNO/053101
MS R/BA/Inha lt: 0531 MSR 500/ 3 4WD ( Tex t) @ 22\m od_1295435803655_ 75.docx @ 963580 @ @ 1

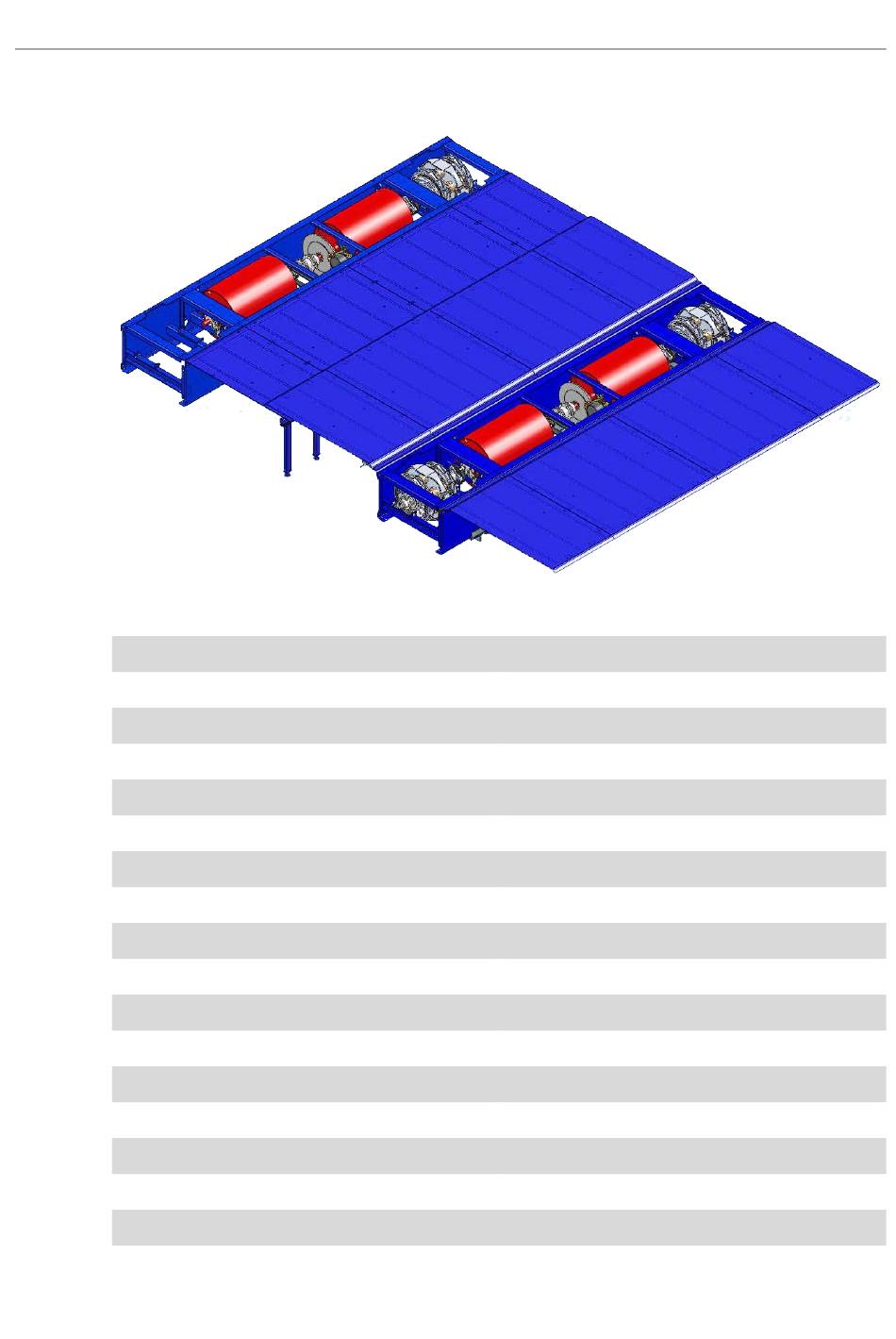

4WD with 1 Eddy Current Brake FA, 2 Eddy Current Brakes RA, 1 Electric Motor per Axle
Roller diameter
Rolling circumference
Roller length
Track width (min....max.)
Roller wall thickness
Total weight of Roller set
Mech. inertia weight
Permissible axle load
Maximum speed
Maximum speed of a tracked, non-driven axle
Motor power
Wheel power Front axle stat. / dyn.
Wheel power Rear axle stat. / dyn.
Tractive force Front axle
Tractive force Front axle
Fuse
Supply voltage
Pos: 61 /----- Forma t-----/MAN UELLER UM BRUCH Se itenumbruch @ 0\m od_1134403577687_ 0.docx @ 1277 @ @ 1
19
504 mm / 20"
1583 mm
750 mm
700...2200 mm
12 mm
4395 kg
1 x 280 kg / 1 x 305 kg
2500 kg
300 km/h
approx. 200 km/h
2 x 22 kW
260 / 1000 kW (Peak)
520 / 1000 kW (Peak)
approx. 7000 N
approx. 14000 N
63 A
3 x 400 + N + PE
BA053101-en
