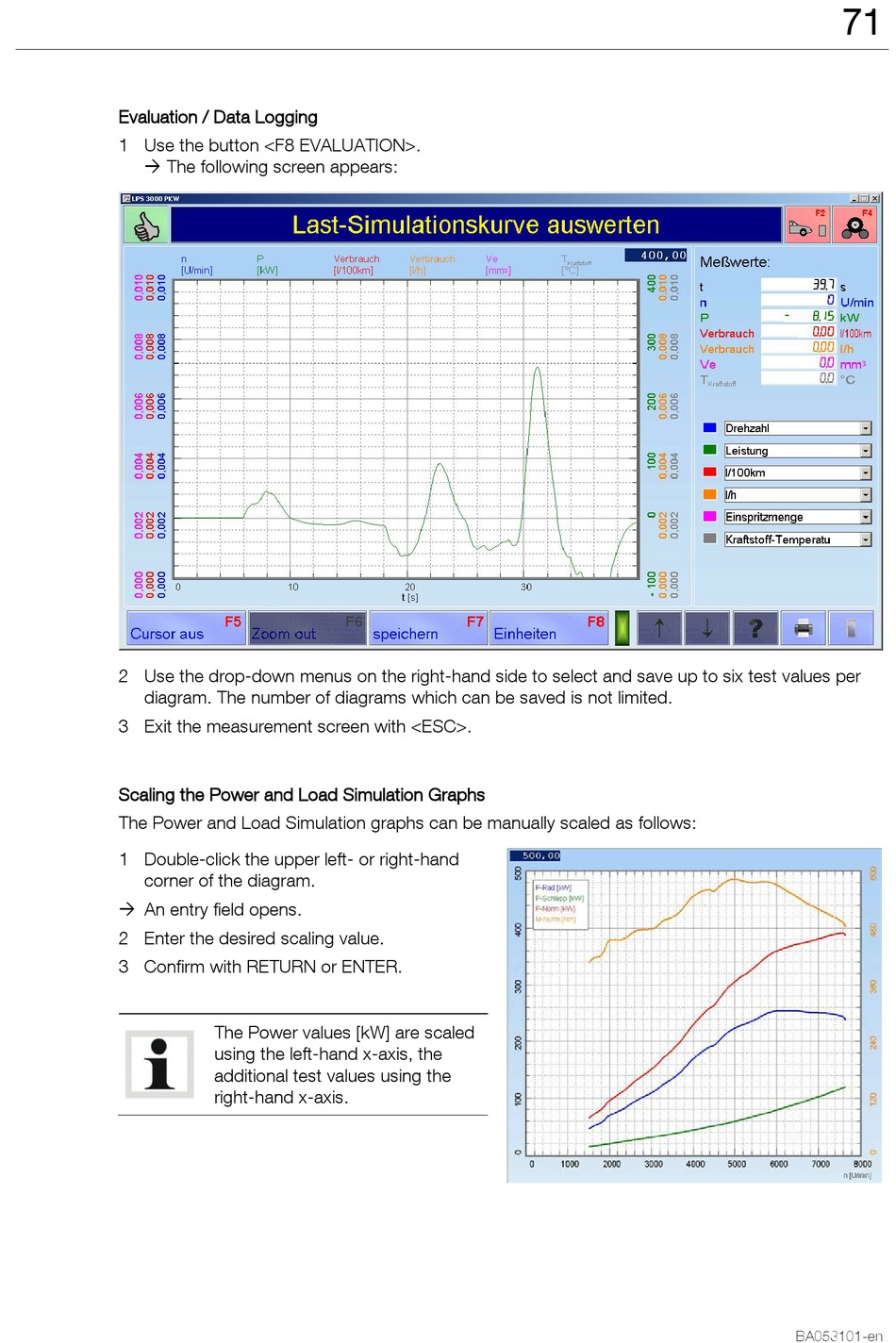

Evaluation / Data Logging
1 Use the button <F8 EVALUATION>.
 The following screen appears:
2 Use the drop-down menus on the right-hand side to select and save up to six test values per
diagram. The number of diagrams which can be saved is not limited.
3 Exit the measurement screen with <ESC>.
Pos: 264 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301 LPS 3000 R100/BA/Inhalt: 0523 Sk alierung der Graf iken @ 23\mod_ 1297677904746_75.d ocx @ 975788 @ @ 1
Scaling the Power and Load Simulation Graphs
The Power and Load Simulation graphs can be manually scaled as follows:
1 Double-click the upper left- or right-hand
corner of the diagram.
 An entry field opens.
2 Enter the desired scaling value.
3 Confirm with RETURN or ENTER.
Pos: 265 /-----Format- ----/MANUE LLE R UMBRUCH Se ite numbruch @ 0\mod_ 1134403577687_0.docx @ 1277 @ @ 1
The Power values [kW] are scaled
using the left-hand x-axis, the
additional test values using the
right-hand x-axis.
