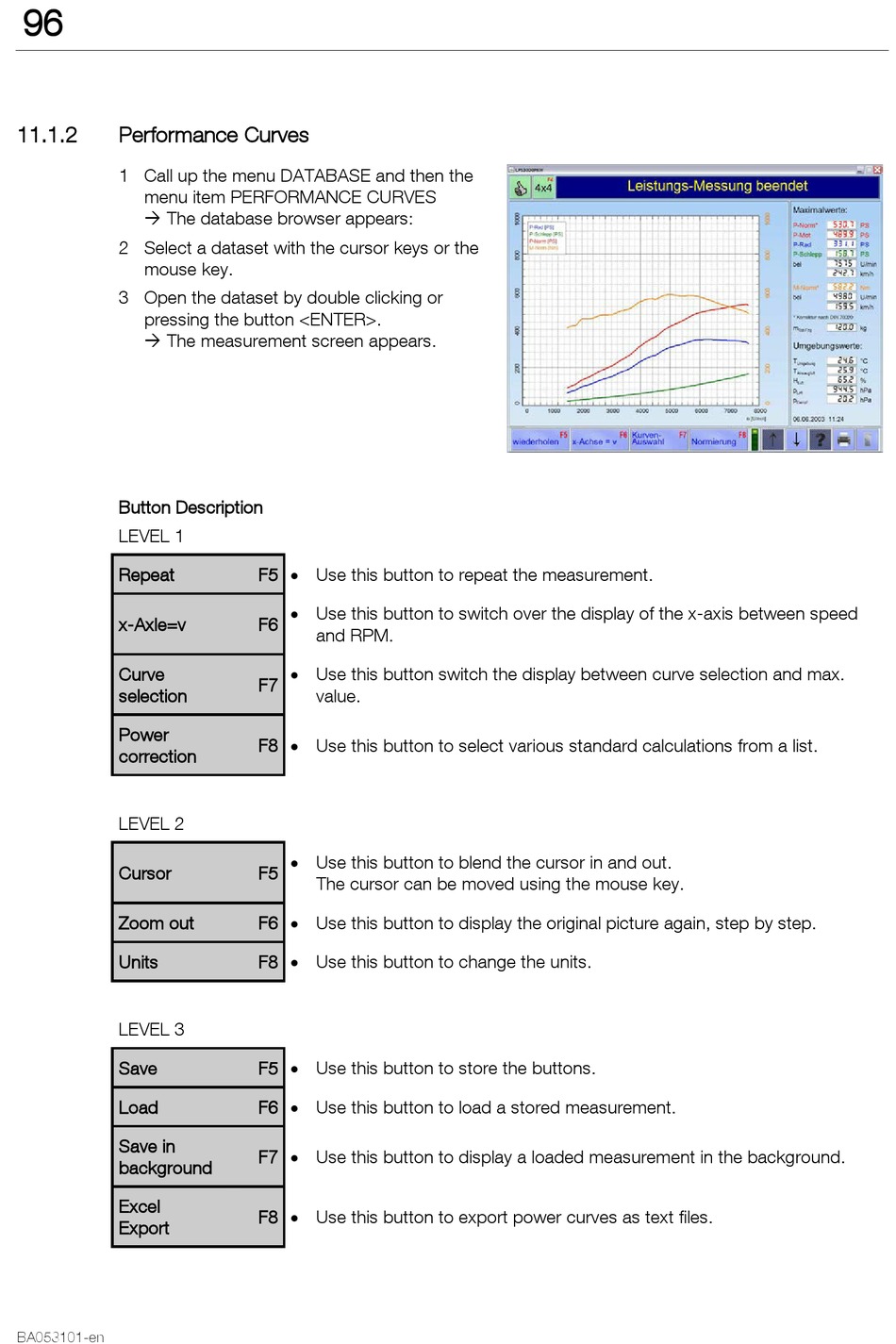

Performance Curves - MAHA POWERDYNO MSR Series Original Operating Instructions

96
Pos: 329 /Te chnis che Dok umenta tion/A lle G eräte/ Überschr ifte n/Üb erschrif te n 1.1.1/ L/Übersc hrift 1.1.1: Leis tungsk urven @ 13\mod_ 1234857518334_ 75.docx @ 340635 @ 3 @ 1
11.1.2

Performance Curves

Pos: 330 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301 LPS 3000 R100/BA/Inhalt: 0523 Leis tungs kurven @ 13\mod_ 1234857571936_75.d ocx @ 340661 @ @ 1
1 Call up the menu DATABASE and then the
menu item PERFORMANCE CURVES
 The database browser appears:
2 Select a dataset with the cursor keys or the
mouse key.
3 Open the dataset by double clicking or
pressing the button <ENTER>.
 The measurement screen appears.
Button Description
LEVEL 1
Repeat
x-Axle=v
Curve
selection
Power
correction
LEVEL 2
Cursor
Zoom out
Units
LEVEL 3
Save
Load
Save in
background
Excel
Export
BA053101-en
F5 • Use this button to repeat the measurement.
• Use this button to switch over the display of the x-axis between speed
F6
and RPM.
• Use this button switch the display between curve selection and max.
F7
value.
F8 • Use this button to select various standard calculations from a list.
• Use this button to blend the cursor in and out.
F5
The cursor can be moved using the mouse key.
F6 • Use this button to display the original picture again, step by step.
F8 • Use this button to change the units.
F5 • Use this button to store the buttons.
F6 • Use this button to load a stored measurement.
F7 • Use this button to display a loaded measurement in the background.
F8 • Use this button to export power curves as text files.
