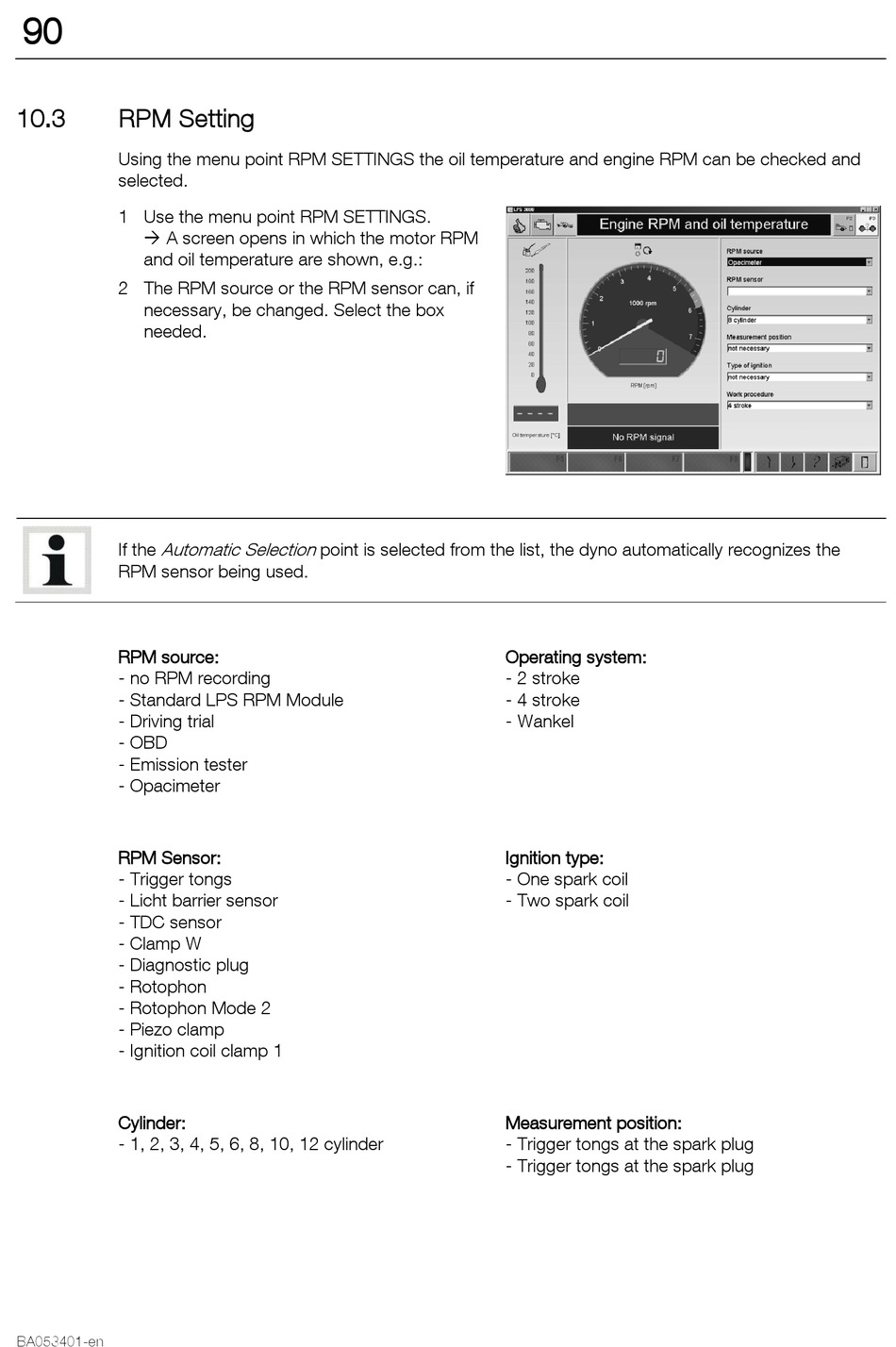

RPM Setting

Using the menu point RPM SETTINGS the oil temperature and engine RPM can be checked and
selected.
1 Use the menu point RPM SETTINGS.
 A screen opens in which the motor RPM
and oil temperature are shown, e.g.:
2 The RPM source or the RPM sensor can, if
necessary, be changed. Select the box
needed.
Automatic Selection
If the
RPM sensor being used.
RPM source:
- no RPM recording
- Standard LPS RPM Module
- Driving trial
- OBD
- Emission tester
- Opacimeter
RPM Sensor:
- Trigger tongs
- Licht barrier sensor
- TDC sensor
- Clamp W
- Diagnostic plug
- Rotophon
- Rotophon Mode 2
- Piezo clamp
- Ignition coil clamp 1
Cylinder:
- 1, 2, 3, 4, 5, 6, 8, 10, 12 cylinder
BA053401-en
point is selected from the list, the dyno automatically recognizes the
Operating system:
- 2 stroke
- 4 stroke
- Wankel
Ignition type:
- One spark coil
- Two spark coil
Measurement position:
- Trigger tongs at the spark plug
- Trigger tongs at the spark plug
