11.8.1

OBD Settings (Optional)

Pos: 364 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301 LPS 3000 R100/BA/Inhalt: 0523 O BD-Eins te llunge n (Option) @ 13\mod_ 1234866365827_ 75.docx @ 341347 @ @ 1
Use the menu point OBD settings to select and display the measurement data. The measurement
data supplied by the diagnostic interface vary depending on the vehicle manufacturer.
1 Use the menu point OBD-SETTINGS.

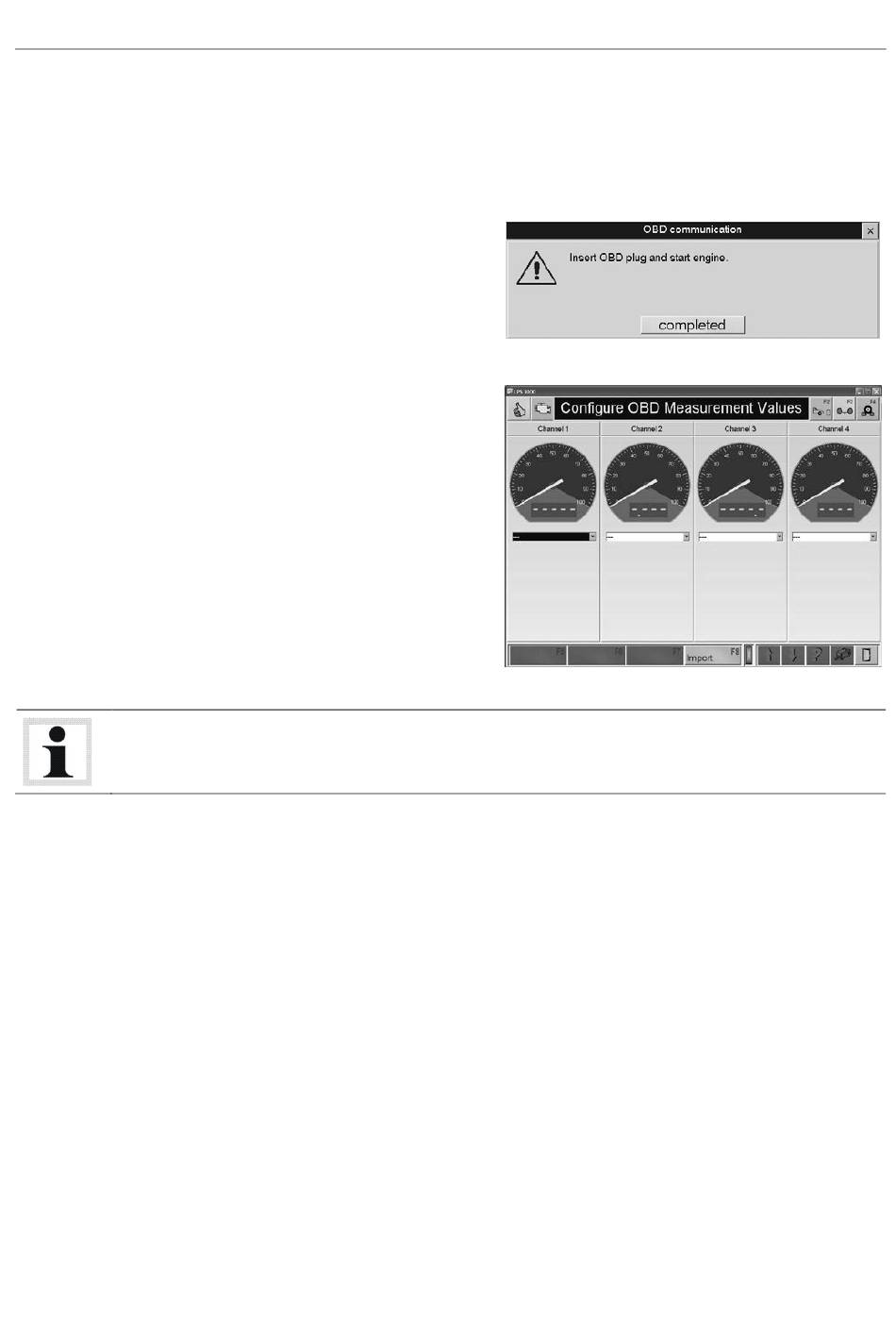

⇒ The following window opens.
2 Connect the OBD plug with the diagnostic
interface.
3 Start the engine and let it run in idle.
4 Confirm with <COMPLETED>.
After communication has been set up, the OBD
symbol appears green in the status line.
Following screen appears:
5 Select the desired measurement values for
Channel 1 to 4 from the list.
6 Use <F8 IMPORT> to accept the settings.
If the communication cannot be set up the first time, wait approx. 10 seconds and repeat the pro-
cedure. switch off the ignition and separate the reading device from the diagnostic interface. Then
repeat step 1 – 4.
