As part of routine tests, SINAMICS equipment with three-phase motors will undergo a voltage test
in accordance with EN 50178. Before the voltage test is performed on the electrical equipment of
industrial machines to EN 60204-1, Section 19.4, all connectors of SINAMICS equipment must be
disconnected/unplugged to prevent the equipment from being damaged.
Motors must be connected in accordance with the circuit diagram provided. They must not be
connected directly to the three-phase supply because this will damage them.
Operating the equipment in the immediate vicinity (< 1.5 m) of mobile telephones with a transmitter
power of > 1 W may lead to incorrect operation.
When operated in dry operating areas, SINAMICS equipment with three-phase motors conforms
to low-voltage Directive 73/23/EEC.
DINAMICS equipment with three-phase motors conforms to EMC Directive 89/336/EEC in the
configurations specified in the associated EC Certificate of Conformity.
Pos: 152 /Te chnis che Dok umenta tion/A lle G eräte/ Überschr ifte n/Üb erschrif te n 1.1/N/ Überschrif t 1.1: N etza nsc haltung für Books ize-A ntriebsverband @ 14\m od_1241602668844_ 75.docx @ 371929 @ 2 @ 1
3.2

Mains Connection for Booksize Drive Assembly

Pos: 153 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/053101 M SR/ BA/Inhalt: 0531 SINAMICS Netza nsc ha ltung Booksiz e ( Text) @ 14\mod_ 1241602787187_75.d ocx @ 371955 @ @ 1

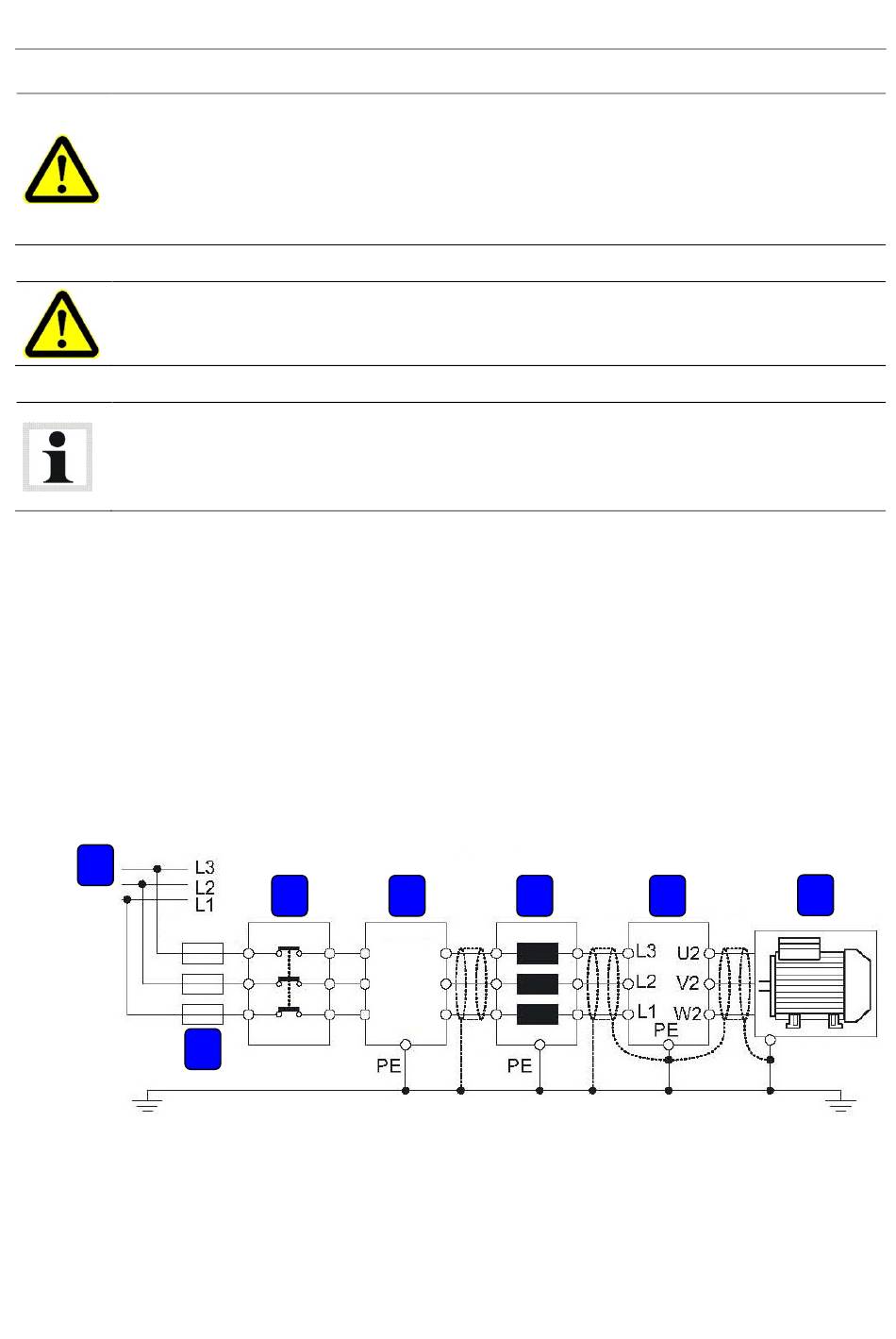

The mains connection for the SINAMICS Booksize drive assembly consists of a mains line filter and
a mains line choke:
A Supply Line from MSR Desk
B Fuse
C Contactor
Pos: 154 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/053101 M SR/ BA/Inhalt: 0531 SINAMICS Netza nsc ha ltung Booksiz e ( Bild) @ 17\mod_ 1253623709990_0.docx @ 446253 @ @ 1
A
Pos: 155 /-----Format- ----/MANUE LLE R UMBRUCH Se ite numbruch @ 0\mod_ 1134403577687_0.docx @ 1277 @ @ 1
C
B
D Mains Line Filter
E Mains Line Choke
F SINAMICS S120
D E
G Motor
G
F
