10.1.7

Drive Dyno

Pos: 289 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301 LPS 3000 R100/BA/Inhalt: 0523 Prüfsta nd a ntre iben @ 23\mod_ 1297433609759_ 75.docx @ 975143 @ @ 1

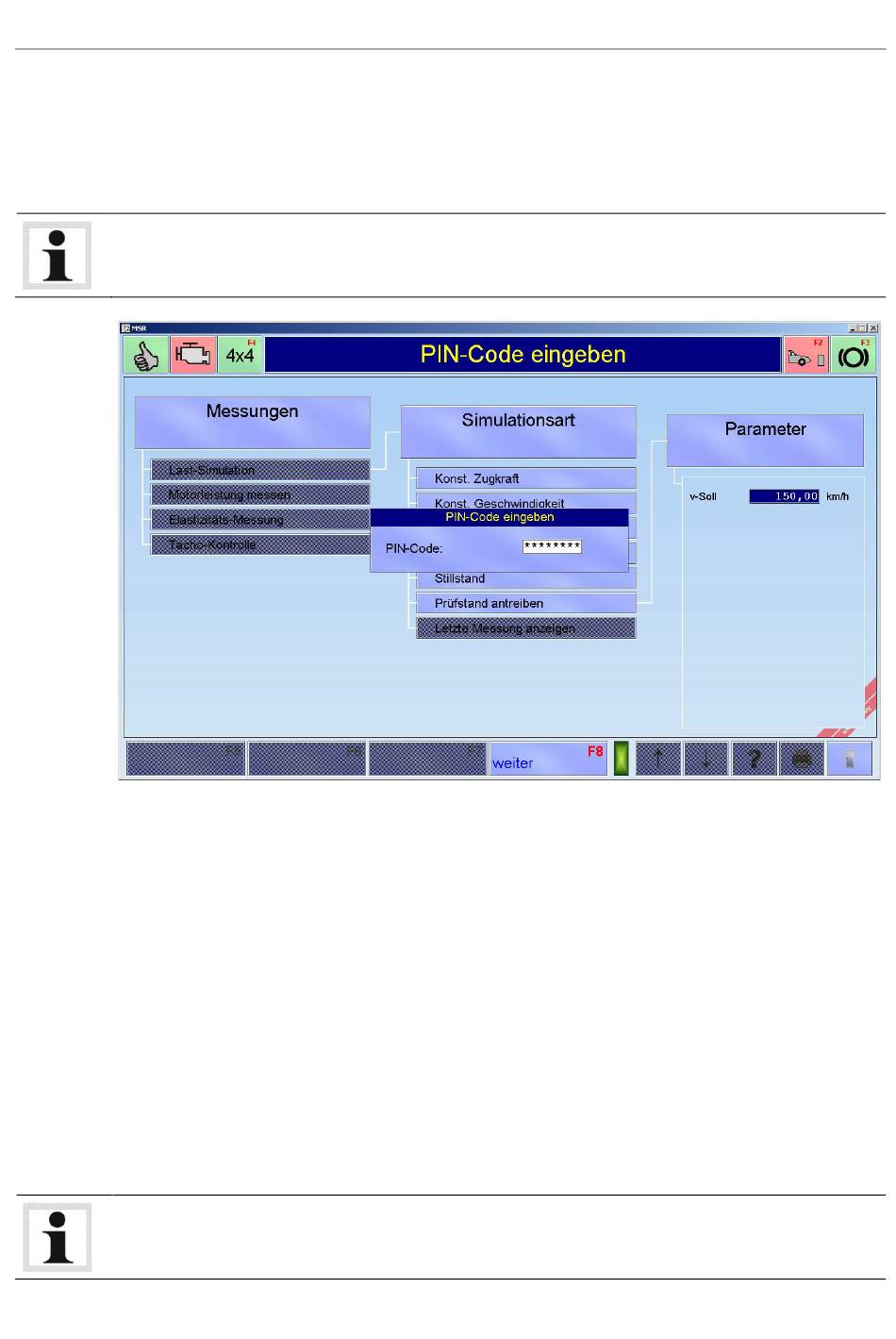

Function "Drive Dyno" requires that you enter a PIN code. The maximum target speed is approx.
200 km/h (depends on the vehicle's driving resistance).
Default PIN code setting: 9864
Pos: 290 /Te chnis che Dok umenta tion/A lle G eräte/ Überschr ifte n/Üb erschrif te n 1.1/M/ Überschrif t 1.1: M otorleis tung messe n @ 13\m od_1234778860319_ 75.d ocx @ 339933 @ 2 @ 1
10.2

Measure Engine Power

Pos: 291 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301 LPS 3000 R100/BA/Inhalt: 0523 M otorle istung mess en @ 13\mod_ 1234778941229_ 75.docx @ 339959 @ @ 1
The vehicle's engine power is measured using this menu point. After selecting this menu point the
following selection appears. Select the individual menu points using the cursor keys or the mouse.
The menu points are explained below.
• Continuous measurement
• Discrete measurement

• Display last measurement

Pos: 292 /Te chnis che Dok umenta tion/A lle G eräte/ Überschr ifte n/Üb erschrif te n 1.1.1/ L/Übersc hrift 1.1.1: Letzte Mess ung anze igen @ 13\mod_ 1234779331996_75.d ocx @ 339985 @ 3 @ 1
10.2.1 Display Last Measurement
Pos: 293 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301 LPS 3000 R100/BA/Inhalt: 0523 Letz te Mes sung anze igen @ 13\mod_ 1234779397924_75.d ocx @ 340011 @ @ 1
If the last conducted measurement is not stored and the measurement menu exited, use the item
"Display last measurement" to view the measurement again. When exiting the LPS program the
temporary storage (or the last measurement conducted) is deleted.
Only active with continuous and discrete measurements!
