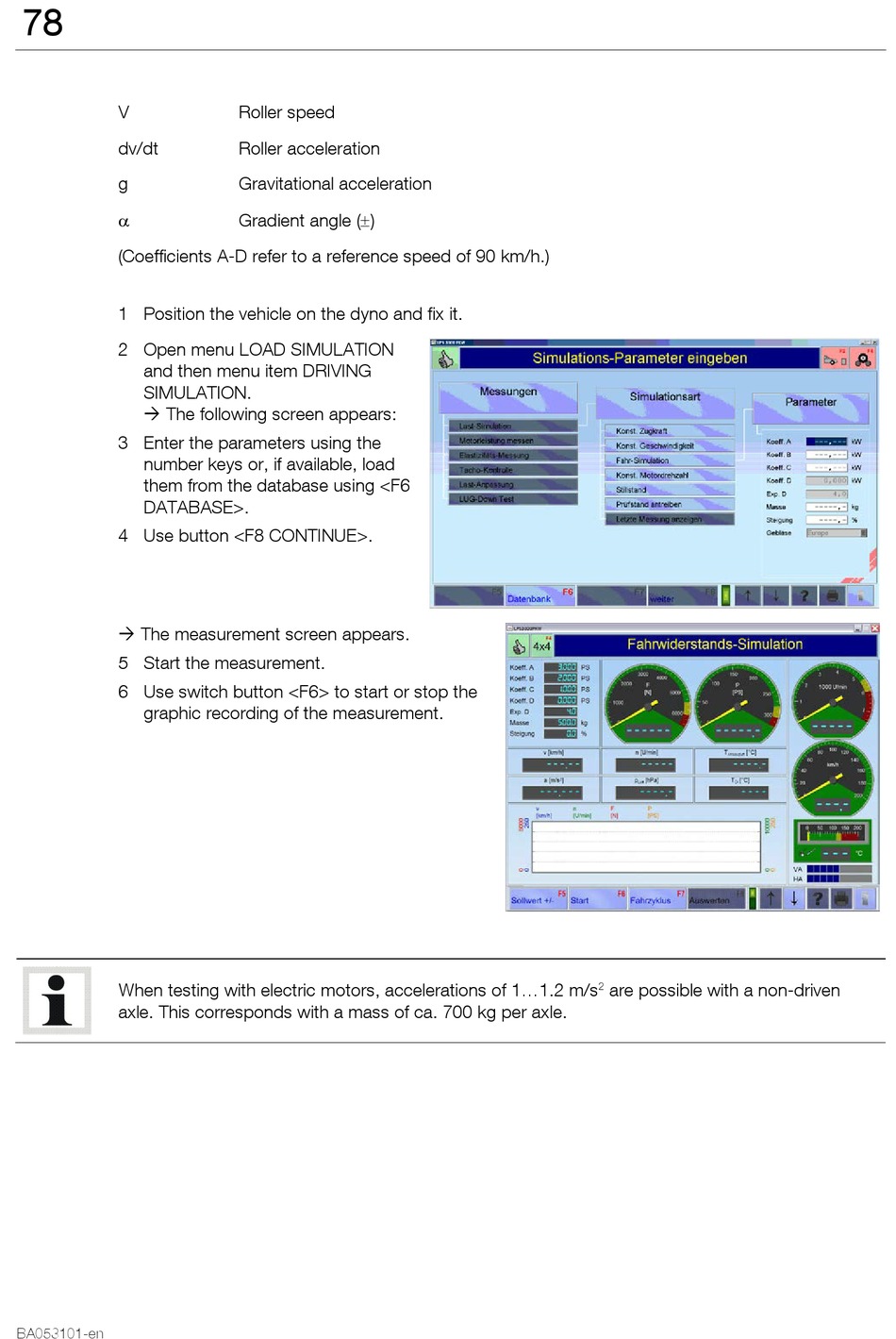

MAHA POWERDYNO MSR Series Original Operating Instructions page 78

78
V
dv/dt
g
α
(Coefficients A-D refer to a reference speed of 90 km/h.)
1 Position the vehicle on the dyno and fix it.
2 Open menu LOAD SIMULATION
and then menu item DRIVING
SIMULATION.
 The following screen appears:
3 Enter the parameters using the
number keys or, if available, load
them from the database using <F6
DATABASE>.
4 Use button <F8 CONTINUE>.
 The measurement screen appears.
5 Start the measurement.
6 Use switch button <F6> to start or stop the
graphic recording of the measurement.
Pos: 281 /Te chnis che Dok umenta tion/A lle G eräte/Inha lte/Info!/I nha lt: Inf o - Prüf ung m it E-M asc hinen @ 14\mod_ 1241679935876_75.d ocx @ 372261 @ @ 1
When testing with electric motors, accelerations of 1...1.2 m/s
axle. This corresponds with a mass of ca. 700 kg per axle.
Pos: 282 /-----Format- ----/MANUE LLE R UMBRUCH Se ite numbruch @ 0\mod_ 1134403577687_0.docx @ 1277 @ @ 1
BA053101-en
Roller speed
Roller acceleration
Gravitational acceleration
Gradient angle (±)
2 are possible with a non-driven
