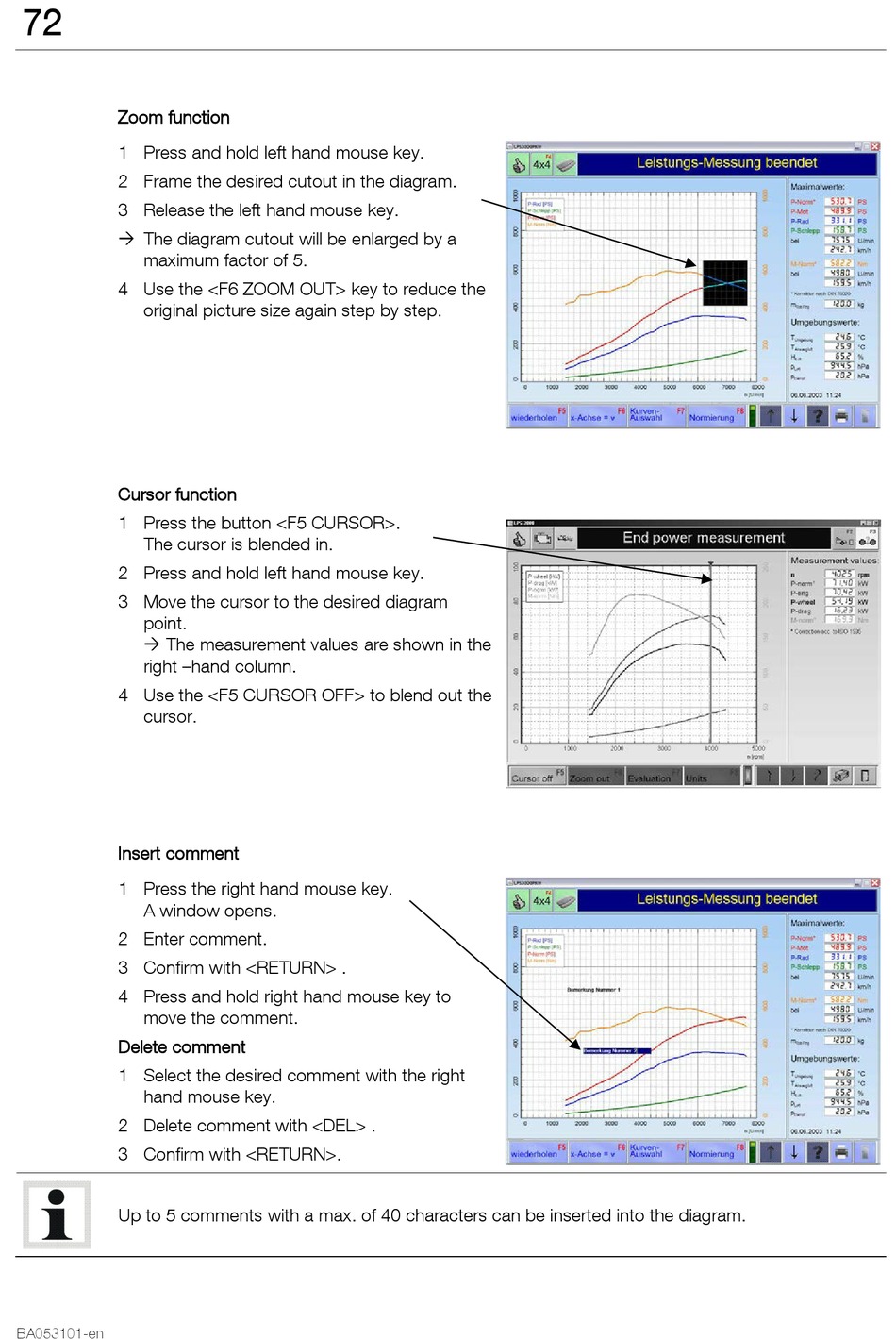

MAHA POWERDYNO MSR Series Original Operating Instructions page 72

72
Pos: 266 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301 LPS 3000 R100/BA/Inhalt: 0523 Zoom- Funktion @ 13\m od_1234360390269_ 75.docx @ 339329 @ @ 1
Zoom function
1 Press and hold left hand mouse key.
2 Frame the desired cutout in the diagram.
3 Release the left hand mouse key.
 The diagram cutout will be enlarged by a
maximum factor of 5.
4 Use the <F6 ZOOM OUT> key to reduce the
original picture size again step by step.
Pos: 267 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301 LPS 3000 R100/BA/Inhalt: 0523 Curs or-Funktion @ 13\mod_ 1234360616525_ 75.docx @ 339355 @ @ 1
Cursor function
1 Press the button <F5 CURSOR>.
The cursor is blended in.
2 Press and hold left hand mouse key.
3 Move the cursor to the desired diagram
point.
 The measurement values are shown in the
right –hand column.
4 Use the <F5 CURSOR OFF> to blend out the
cursor.
Pos: 268 /Te chnis che Dok umenta tion/ Leis tungsmesstechnik/POWE RDYNO/052301 LPS 3000 R100/BA/Inhalt: 0523 K omme ntar einfüge n @ 13\m od_1234360719952_ 75.docx @ 339381 @ @ 1
Insert comment
1 Press the right hand mouse key.
A window opens.
2 Enter comment.
3 Confirm with <RETURN> .
4 Press and hold right hand mouse key to
move the comment.
Delete comment
1 Select the desired comment with the right
hand mouse key.
2 Delete comment with <DEL> .
3 Confirm with <RETURN>.
Up to 5 comments with a max. of 40 characters can be inserted into the diagram.
