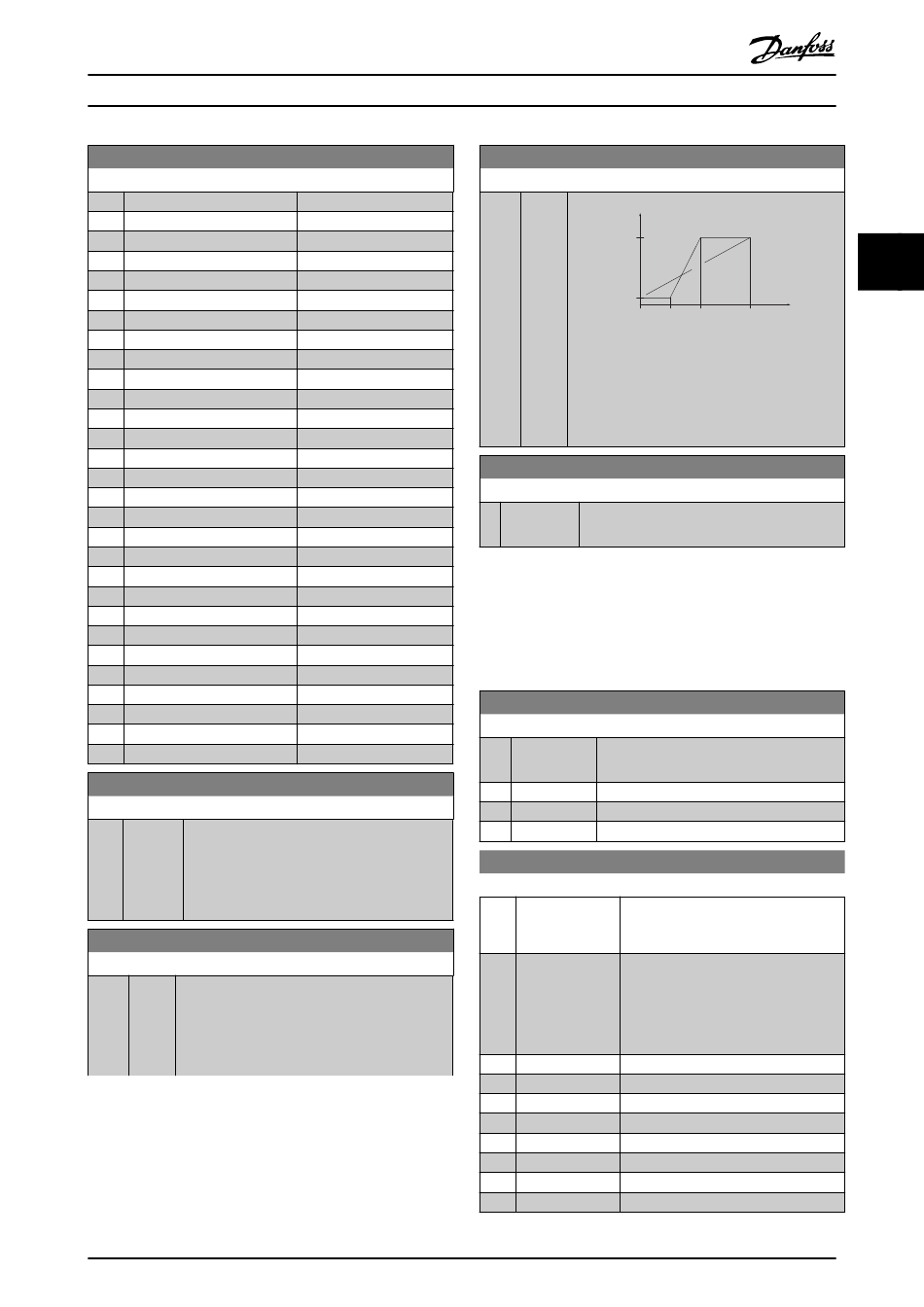

Parameters
6-72 Terminal 45 Digital Output
Option:
[45]
Bus Control
[60]
Comparator 0
[61]
Comparator 1
[62]
Comparator 2
[63]
Comparator 3
[64]
Comparator 4
[65]
Comparator 5
[70]
Logic rule 0
[71]
Logic rule 1
[72]
Logic rule 2
[73]
Logic rule 3
[74]
Logic rule 4
[75]
Logic rule 5
[80]
SL digital output A
[81]
SL digital output B
[82]
SL digital output C
[83]
SL digital output D
[160] No alarm
[161] Running reverse
[165] Local ref. active
[166] Remote ref. active
[167] Start command activ
[168] Drive in hand mode
[169] Drive in auto mode
[190] No-Flow
[193] Sleep Mode
[194] Broken Belt Function
[196] Fire Mode
[198] Drive Bypass
6-73 Terminal 45 Output Min Scale
Range:
Function:
0 %
[0 -
Scale for the minimum output (0 mA or 4 mA)
*
200 %]
of the analog signal at terminal 45. Set the
value to be the percentage of the full range of
the variable selected in parameter 6-71 Terminal
45 Analog Output.
6-74 Terminal 45 Output Max Scale
Range:
Function:
100
[0 -
Scale for the maximum output (20 mA) of the
%
200 %]
analog signal at terminal 45. Set the value to be
*
the percentage of the full range of the variable
selected in parameter 6-71 Terminal 45 Analog
Output.
MG18B502
Programming Guide
Function:
3.7.5 6-9* Analog/Digital Output 42
Parameters for configuring the limits for analog/digital
output terminal 42. Analog outputs are current outputs:
0/4–20 mA. Resolution on analog outputs is 12 bit. Analog
output terminals can also be set up as digital output.
Danfoss A/S © 04/2018 All rights reserved.
6-74 Terminal 45 Output Max Scale
Range:
Function:
Current
(mA)
20
0/4
0%
Analogue
output
Min Scale
par. 6-73
Illustration 3.11 Output Maximum Scale
6-76 Terminal 45 Output Bus Control
Range:
Function:
0
[0 - 16384 ] Holds the level of analog output if controlled
*
by bus.
6-90 Terminal 42 Mode
Option:
Function:
Set terminal 42 to act as analog output or
as digital output.
[0]
0-20 mA
*
[1]
4-20 mA
[2]
Digital Output
6-91 Terminal 42 Analog Output
Option:
Function:
Select the function of terminal 42 as an
analog current output. See also
parameter 6–90 Terminal 42 Mode.
•
[254] DC-link voltage
•
•
•
[0]
No operation
*
[100] Output frequency 0–100 Hz
[101] Reference
Min
Ref.
[102] Feedback
Min
– Max
FB
[103] Motor Current
0–I
max
[106] Power
0–P
nom
[139] Bus Control
0–100%
[184] Mirror AI53 mA
0–20
Analogue
100%
Variable
Output
for
Max Scale
output
par. 6-74
example:
Power
T2/S2, 200–400 V
T4, 400–800 V
T5, 400–1000 V
T6, 500–1000 V
– Max
Ref.
FB
59
3
3
