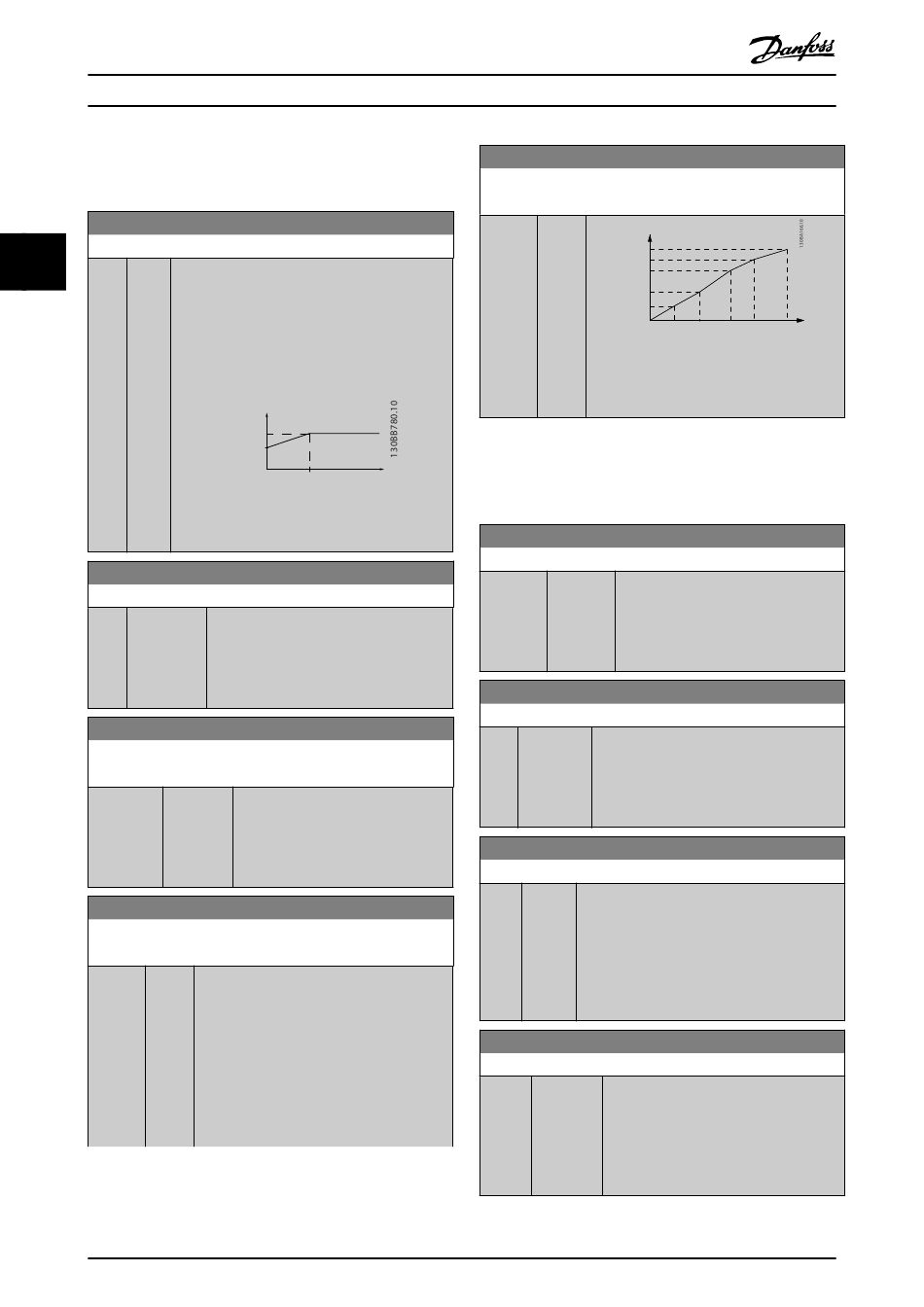

Parameters
3.2.7 1-5* Load Indep. Setting
Parameters for load-independent motor settings.
1-50 Motor Magnetisation at Zero Speed
Range:
3 3
100 [0 -
% 300 %
*
]
1-52 Min Speed Normal Magnetising [Hz]
Range:
1 Hz [0.1 - 10.0
*
Hz]
1-55 U/f Characteristic - U
Array [6]
Range:
Size related
*
V]
1-56 U/f Characteristic - F
Array[6]
Range:
Size [ 0 -
related 400.0
*
Hz]
36
Function:
Use this parameter along with parameter 1-52 Min
Speed Normal Magnetising [Hz] to obtain a
different thermal load on the motor when running
at low speed.
Enter a value that is a percentage of the rated
magnetizing current. If the setting is too low, the
torque on the motor shaft may be reduced.
Magn. current
90%
Par.1-50
Par.1-52
Illustration 3.2 Motor Magnetization
Function:
Set the required frequency for normal
magnetizing current.
Use this parameter along with
parameter 1-50 Motor Magnetisation at Zero
Speed. See Illustration 3.2.
Function:
[0 - 999 Enter voltage at each frequency point
to form a U/f characteristic matching
the motor. Frequency points are
defined in parameter 1-56 U/f Charac-
teristic - F.
Function:
Enter frequency points to form a U/f charac-
teristic matching the motor. Voltage at each
point is defined in parameter 1-55 U/f Charac-
teristic - U.
Make a U/f characteristic based on 6 definable
voltages and frequencies, see Illustration 3.3.
Simplify U/f characteristics by merging 2 or
more points (voltages and frequencies). Set
the points at equal values.
