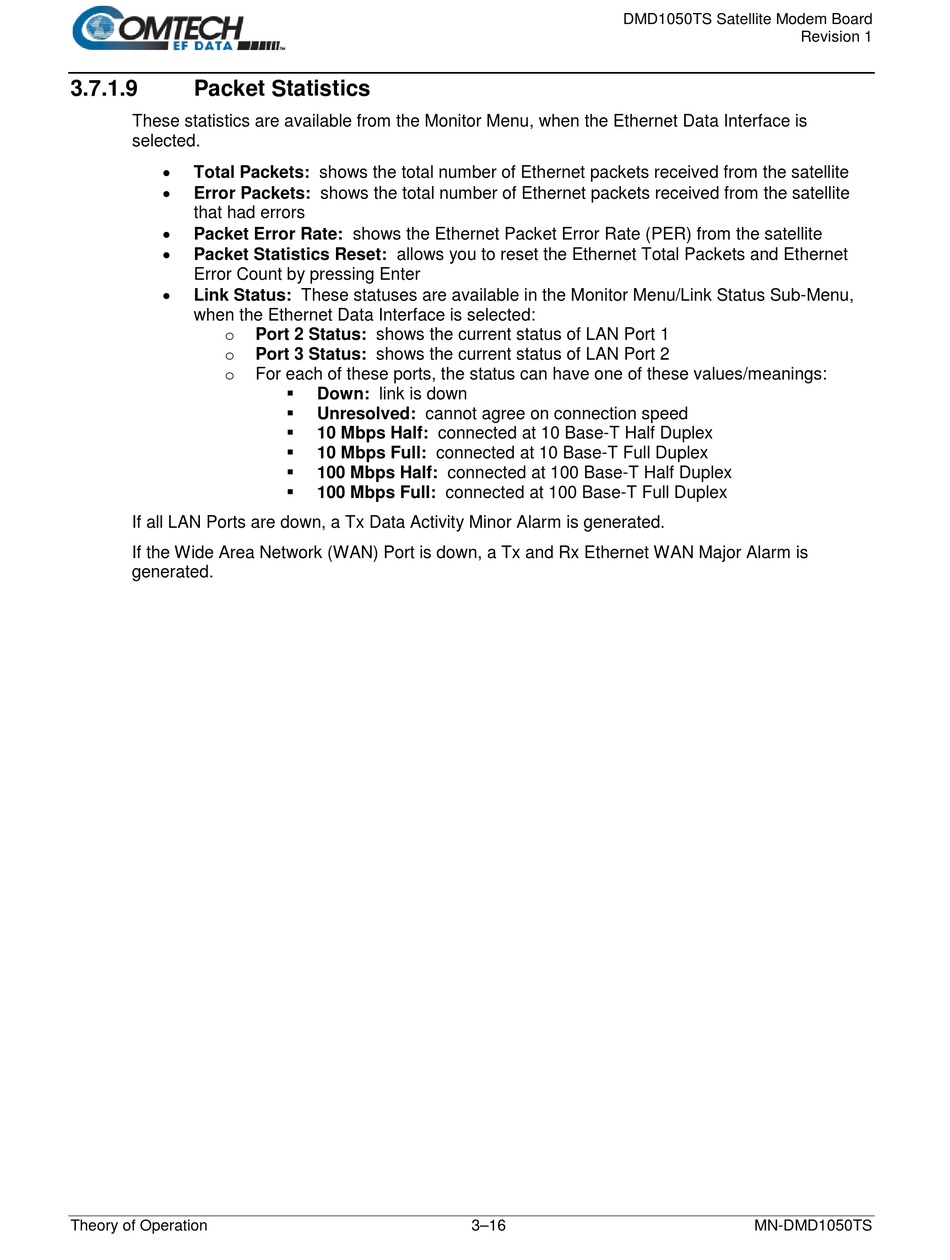

3.7.1.9 Packet Statistics
These statistics are available from the Monitor Menu, when the Ethernet Data Interface is
selected.
•
Total Packets: shows the total number of Ethernet packets received from the satellite
•
Error Packets: shows the total number of Ethernet packets received from the satellite
that had errors
•
Packet Error Rate: shows the Ethernet Packet Error Rate (PER) from the satellite
•
Packet Statistics Reset: allows you to reset the Ethernet Total Packets and Ethernet
Error Count by pressing Enter
•
Link Status: These statuses are available in the Monitor Menu/Link Status Sub-Menu,
when the Ethernet Data Interface is selected:
o
o
o
If all LAN Ports are down, a Tx Data Activity Minor Alarm is generated.
If the Wide Area Network (WAN) Port is down, a Tx and Rx Ethernet WAN Major Alarm is
generated.
Theory of Operation
Port 2 Status: shows the current status of LAN Port 1
Port 3 Status: shows the current status of LAN Port 2
For each of these ports, the status can have one of these values/meanings:

Down: link is down

Unresolved: cannot agree on connection speed

10 Mbps Half: connected at 10 Base-T Half Duplex

10 Mbps Full: connected at 10 Base-T Full Duplex

100 Mbps Half: connected at 100 Base-T Half Duplex

100 Mbps Full: connected at 100 Base-T Full Duplex
