6.9.8 BER Performance (BPSK Turbo)

1E-1
1E-2
1E-3
1E-4
1E-5
1E-6
1E-7
1E-8
1E-9
0 1
Technical Specifications
B/O/QPSK Uncoded Theory
Specification
21/44 Rate
Specification
5/16 Rate
2 3 4 5
Eb/No in dB

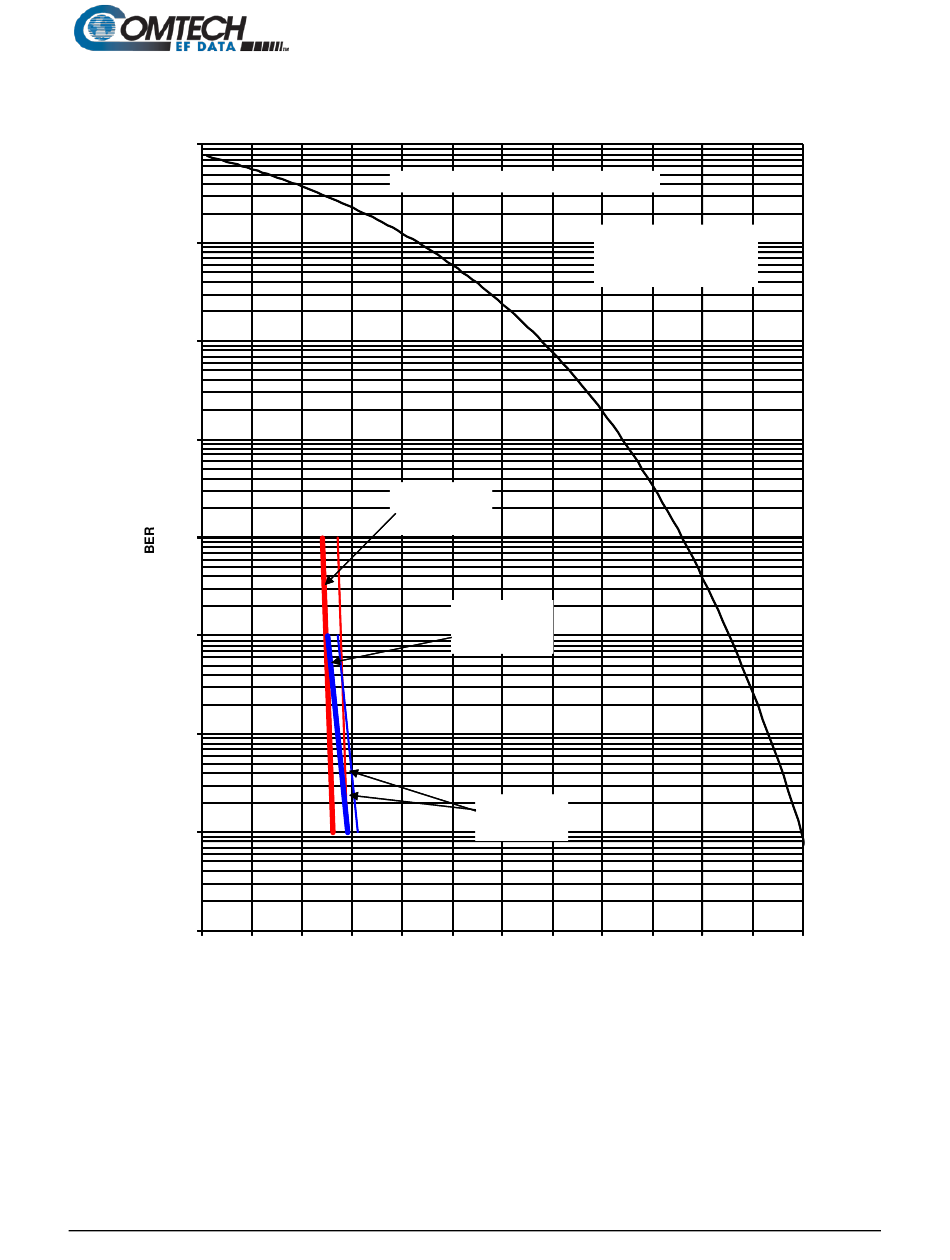

Figure 6-8. BPSK BER Performance (Turbo)
