7.7.2 Receive Menu

The Receive menu has the following submenus:
•
General/IF
•
Data
•
Reed Solomon
•
CNC
•
ODU-LNB
•
ITA
7.7.2.1 Receive | General / IF Page
Receive | General | IF Page
Network Specs
Strap Code
Web Browser

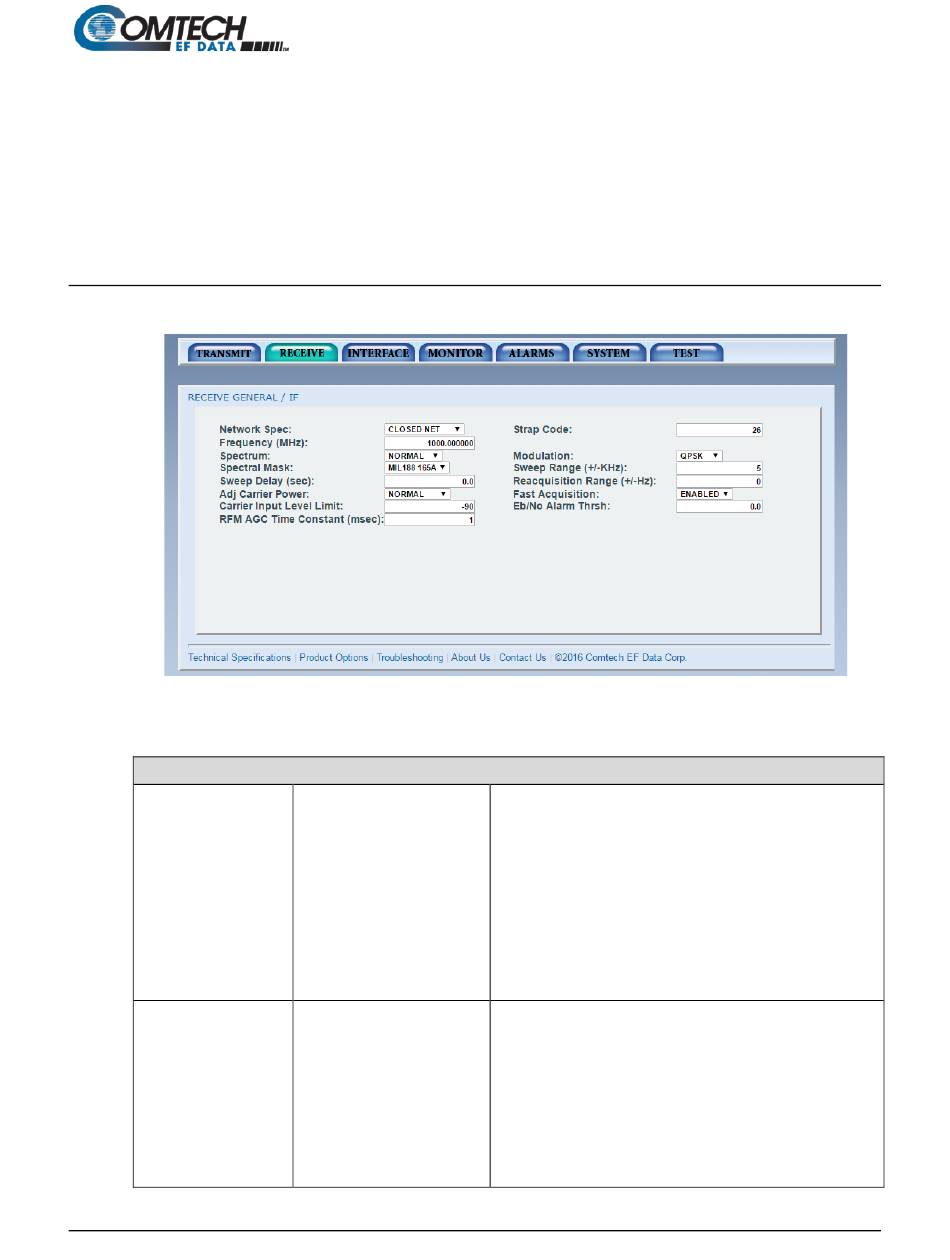

Figure 7-18. Receive | General | IF Page Example
CLOSED NET
•
IDR (optional)
•
IBS (optional)
•
DROP & INSERT
•
(optional)
DVB SAT
•
MIL 188 165A
•
EBEM (optional)
•
Data Rate
•
Inner Code Rate
•
Satellite Framing
•
Scrambler
•
Drop and Insert
•
Outer Code Rate
•
(Reed-Solomon)
Modulation
•
7–30
DMD1050TS Satellite Modem Board
Supports IDR and IBS Framing Modes in Closed Net.
To meet a set specification, the Network Spec command
sets several parameters in the modem. The purpose is to
eliminate keystrokes and compatibility problems.
Additionally, data rates not covered by the selected
specification are not allowed. The selected Network Spec
must be compatible with the selected data rate.
The parameters cannot be changed while the unit is in the
selected Network Spec.
See Table 7-6. Network Specifications.
The Strap Code is a quick set key that sets many modem
parameters. Consult the strap code guide for available strap
codes. See Appendix G.
