7.7.4.8 Alarms | Common Page
Alarms | Common Page
COMMON
Terr FPGA Cfg
Codec FPGA Cfg
Codec Dev Cfg
ExtClk Activity
ExtRef Activity
Ext Ref Lock
Web Browser

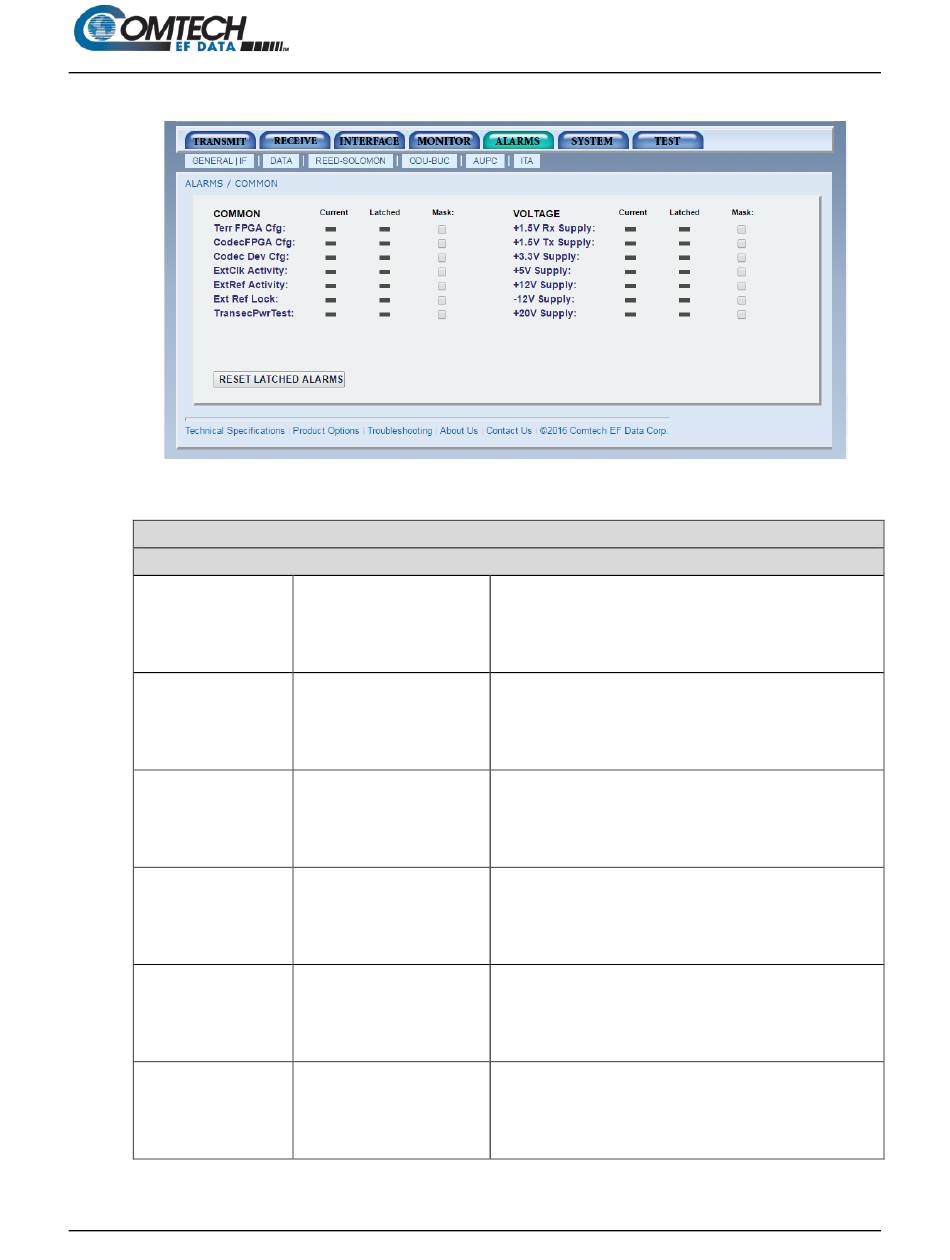

Figure 7-33. Alarms | Common Page Example
Current
•
Latched
•
Masked (checkmark)
•
Unmasked (no check)
•
Current
•
Latched
•
Masked (checkmark)
•
Unmasked (no check)
•
Current
•
Latched
•
Masked (checkmark)
•
Unmasked (no check)
•
Current
•
Latched
•
Masked (checkmark)
•
Unmasked (no check)
•
Current
•
Latched
•
Masked (checkmark)
•
Unmasked (no check)
•
Current
•
Latched
•
Masked (checkmark)
•
Unmasked (no check)
•
7–60
DMD1050TS Satellite Modem Board
This shows if there is an Interface Card FPGA configuration
failure.
This shows if there is a Turbo Codec Card FPGA
configuration failure.
This shows if there is a Turbo Codec Card ASIC
configuration failure.
This shows the External Clock is not active.
This shows if there is an External Reference Activity failure.
This shows the External Reference PLL is not locked.
