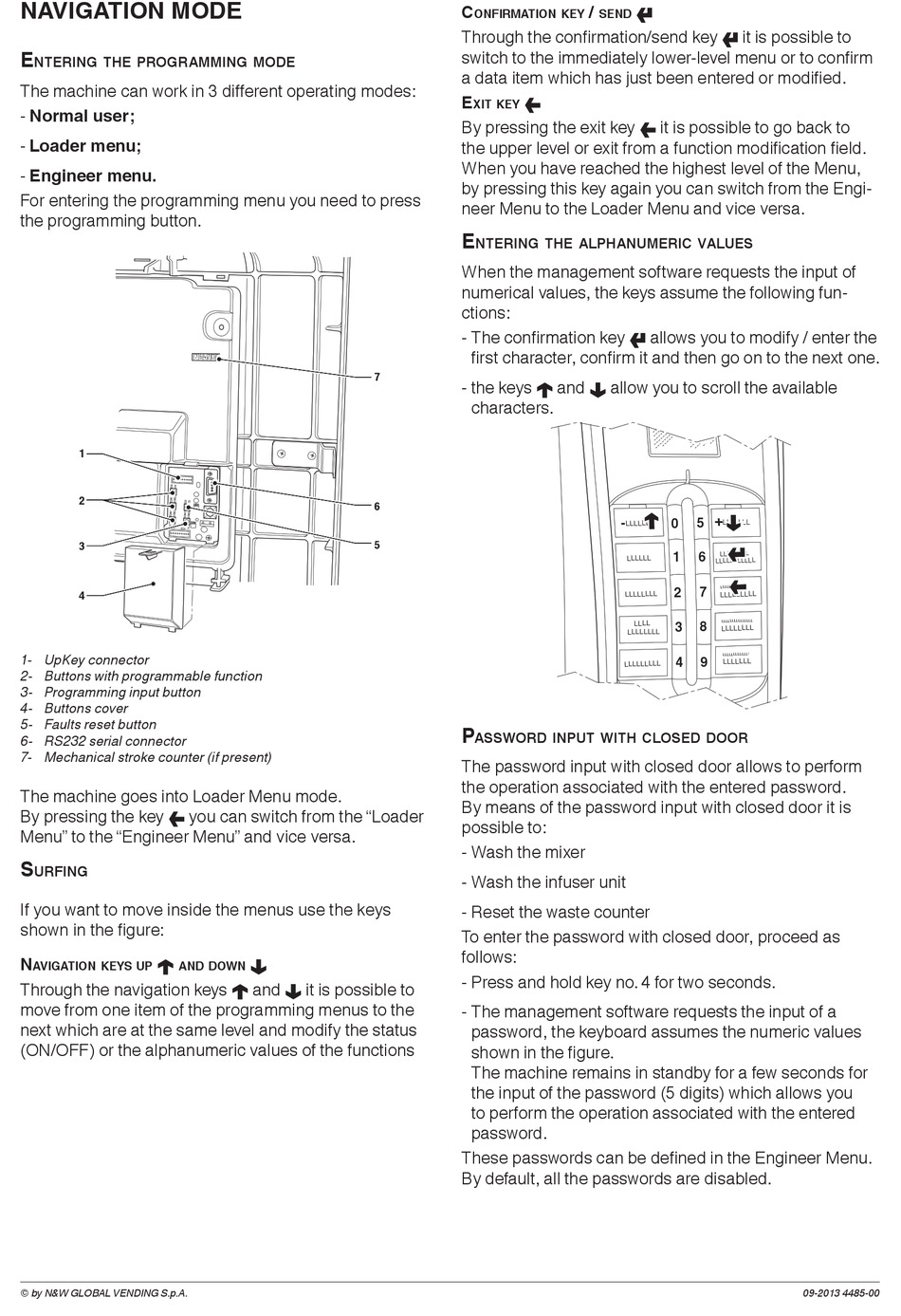

NAVIGATION MODE
E
NtEriNg tHE programmiNg moDE
The machine can work in 3 different operating modes:
- Normal user;
- Loader menu;
- Engineer menu.
For entering the programming menu you need to press
the programming button.
1
2
3
4
1- UpKey connector
2- Buttons with programmable function
3- Programming input button
4- Buttons cover
5- Faults reset button
6- RS232 serial connector
7- Mechanical stroke counter (if present)
The machine goes into Loader Menu mode.
By pressing the key � you can switch from the "Loader
Menu" to the "Engineer Menu" and vice versa.
s
urfiNg
If you want to move inside the menus use the keys
shown in the figure:
N
avigatioN kEys up aND DoWN
�
Through the navigation keys � and � it is possible to
move from one item of the programming menus to the
next which are at the same level and modify the status
(ON/OFF) or the alphanumeric values of the functions
© by N&W GLOBAL VENDING S.p.A.
7
6
5
�
c /
oNfirmatioN kEy sEND
Through the confirmation/send key � it is possible to
switch to the immediately lower-level menu or to confirm
a data item which has just been entered or modified.
E
xit kEy
�
By pressing the exit key � it is possible to go back to
the upper level or exit from a function modification field.
When you have reached the highest level of the Menu,
by pressing this key again you can switch from the Engi-
neer Menu to the Loader Menu and vice versa.
E
NtEriNg tHE alpHaNumEric valuEs
When the management software requests the input of
numerical values, the keys assume the following fun-
ctions:
- The confirmation key � allows you to modify / enter the
first character, confirm it and then go on to the next one.
- the keys � and � allow you to scroll the available
characters.
-
p
assWorD iNput WitH closED Door
The password input with closed door allows to perform
the operation associated with the entered password.
By means of the password input with closed door it is
possible to:
- Wash the mixer
- Wash the infuser unit
- Reset the waste counter
To enter the password with closed door, proceed as
follows:
- Press and hold key no. 4 for two seconds.
- The management software requests the input of a
password, the keyboard assumes the numeric values
shown in the figure.
The machine remains in standby for a few seconds for
the input of the password (5 digits) which allows you
to perform the operation associated with the entered
password.
These passwords can be defined in the Engineer Menu.
By default, all the passwords are disabled.
�
+
5
0
1 6
7
2
8
3
4 9
