N&W Global Vending Krea Installation - Use - Maintenance page 16

- The fans can be removed by simply pulling gently to
free them;

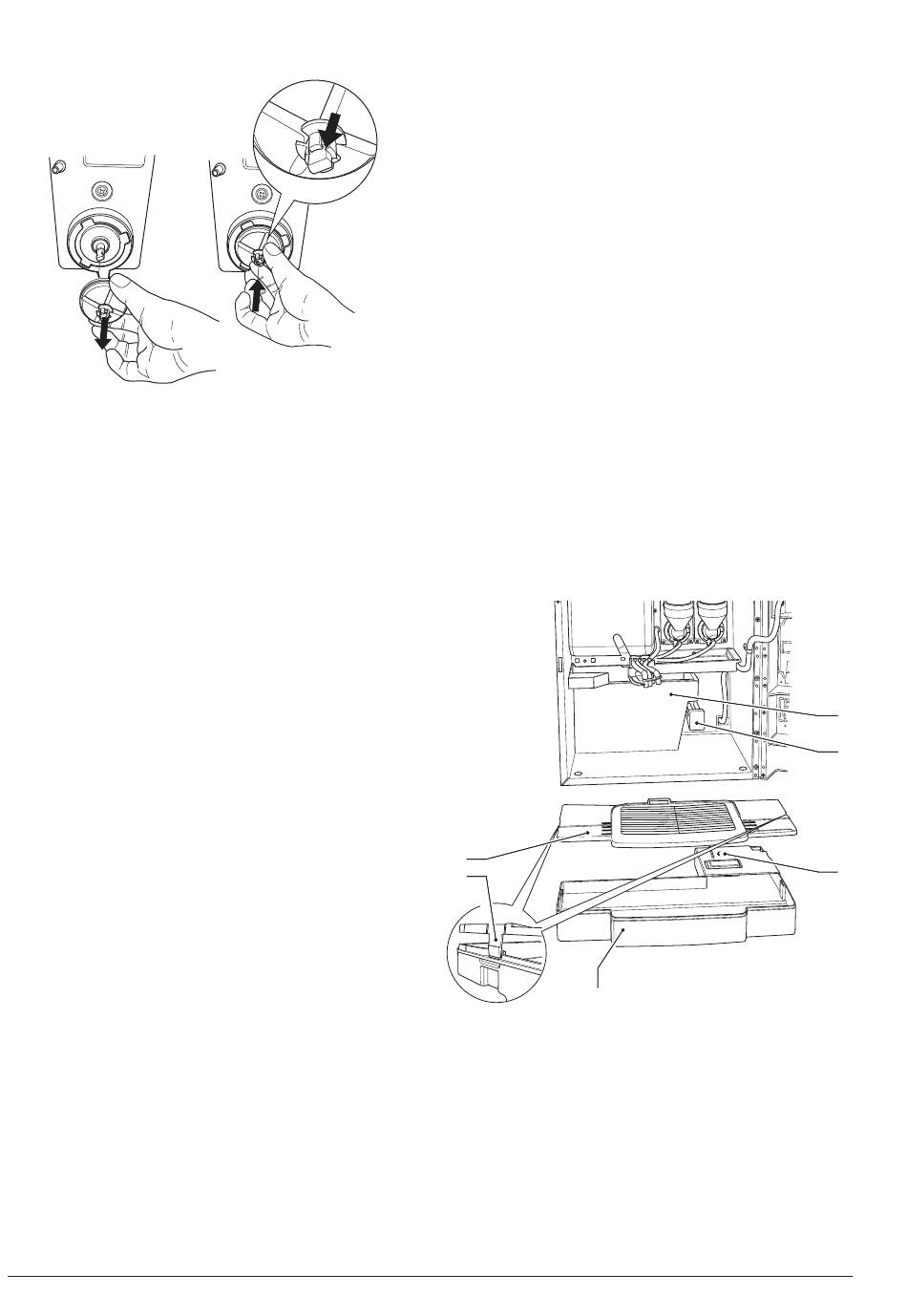

Fig. 7
- Wash all the components with sterilising products (fol-
low the dosage indicated by the manufacturer), being
careful to mechanically remove the visible residues
using brushes if necessary;
The sterilisation is performed by means of sterilising
products.
- Dip the parts for approx. 20 minutes in a recipient con-
taining the previously prepared sterilising solution;
- Reinstall the conveyors and the water funnels;
- Reinstall the powder deposit drawers and the powder
funnels after having carefully rinsed and dried them.
After installing the components it is however neces-
sary:
- Wash the mixer and add a few drops of the sterilising
solution into the various funnels.
- Once the sterilisation has been performed, rinse the
components well in order to remove any possible resi-
due of the solution used.
All the operations which require the machine to be
under voltage shall ONLY be performed by qualified
personnel who has been informed of the specific
risks deriving from such a situation.
© by N&W GLOBAL VENDING S.p.A.
W
astE coNtaiNErs
The waste containers can be easily extracted so that
they can be quickly emptied and cleaned.
For safety reasons, the containers can be handled only
when the door is open.
l
iquiD WastE
When the appropriate float signals that the container is
full, the "Full waste" message appears on the machine's
display and it is necessary to empty the liquid waste
container.
For removing the liquid waste container, operate as
follows:
- Grab the liquid waste container by the side, lift slightly
and pull towards you.
- Empty the container and wash it with a solution of neu-
tral detergent
W
astE
The capacity of the coffee beans container, if the sup-
port cabinet is not used, is greater than the capacity of
the waste container.
After a number of dispensing events corresponding to
about 1.91 lbs. (corresponding to the capacity of the
container), the machine will stop working and request
that the solid waste container be emptied by showing the
message "Empty container"
The machine will still work for dispensing instant drinks.
3
2
Fig. 8
1- Container for gathering liquid waste
2- Cover fixing hooks
3- Container Cover
4- Solid residue container
5- Full waste float switch
6- Full waste float
10
1
4
5
6
09-2013 4485-00
