CONTROLS AND INFORMATION

The controls and the information to the user are on the
external side of the door.
The plates with the menu and the instructions are
supplied together with the machine and they shall be
inserted when the machine is installed.
The Programming button, which provides access to the
machine's functions, and the service buttons are located
inside the machine on the buttons board.
7
6
5
4
3
2
1

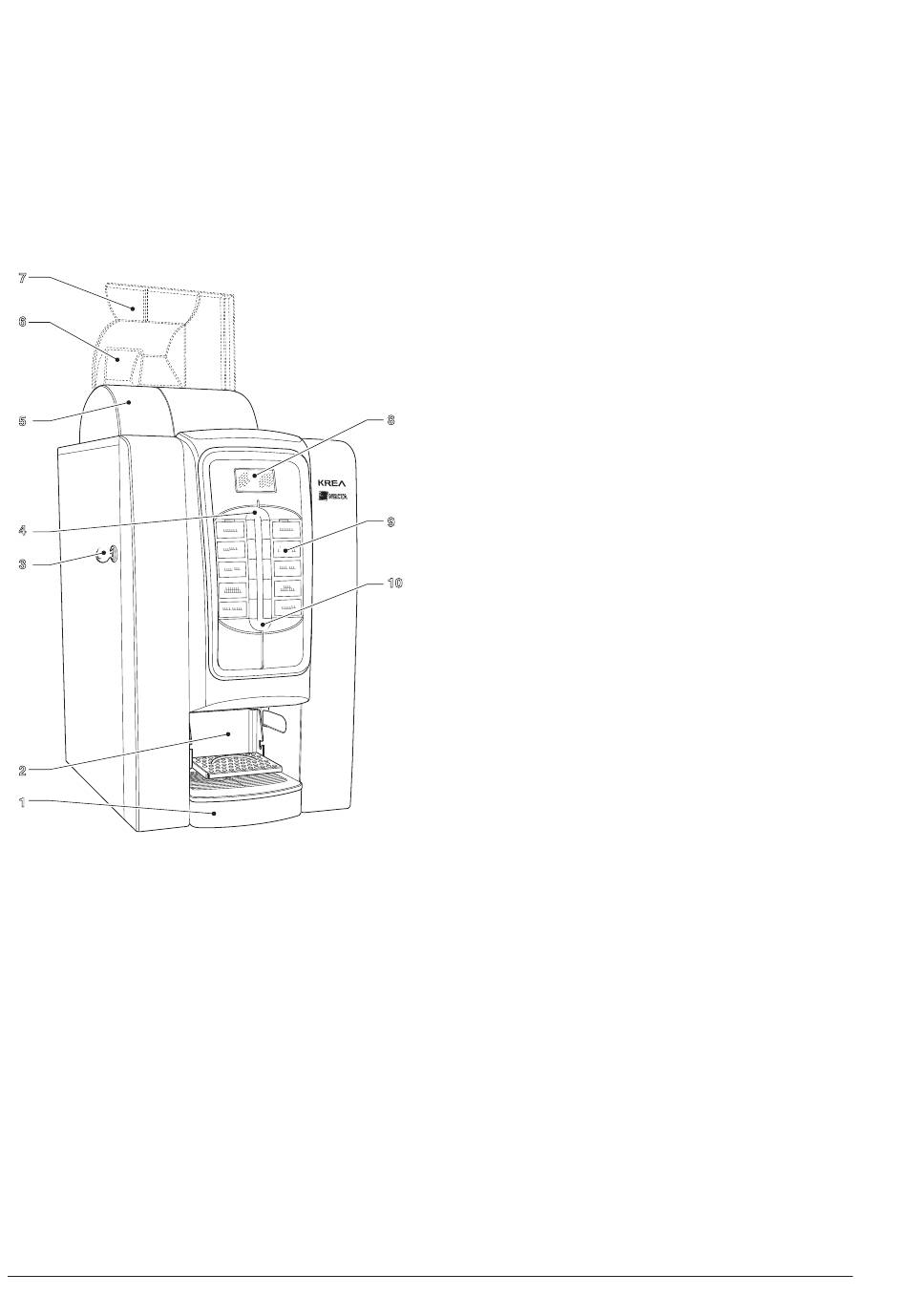

Fig. 5
1- Liquid residue container
2- Dispensing unit
3- Door lock
4- Upper light guide
5- Container for coffee beans
6- Coffee container cover
7- Openable upper panel
8- Display
9- Selections menu
10- Lower light guide
© by N&W GLOBAL VENDING S.p.A.

PRODUCT LOADING

Before loading the products, please verify they are
in strict accordance with the manufacturer instruc-
tions regarding storage, storage temperature and
expiry date.
Load the products following the guidelines below.
Products may also be loaded with the containers partial-
ly full
c
offEE bEaNs
Lift the machine upper panel.
Fill it with coffee beans (2.65 lbs max), checking that the
damper of the container is completely open.
f
rEsH brEW
Lift the machine upper panel.
Fill it with the fresh brew (3 lbs max) being careful not to
compress it.
Make sure the product does not contain any lumps
8
i
NstaNt proDucts
Each container has an adhesive label which specifies
the type of product.
After lifting the corresponding cover, introduce the pro-
9
ducts to be dispensed into the containers being careful
not to compress them.
Make sure that the products do not contain lumps.
10
8
( )
EsprEsso
