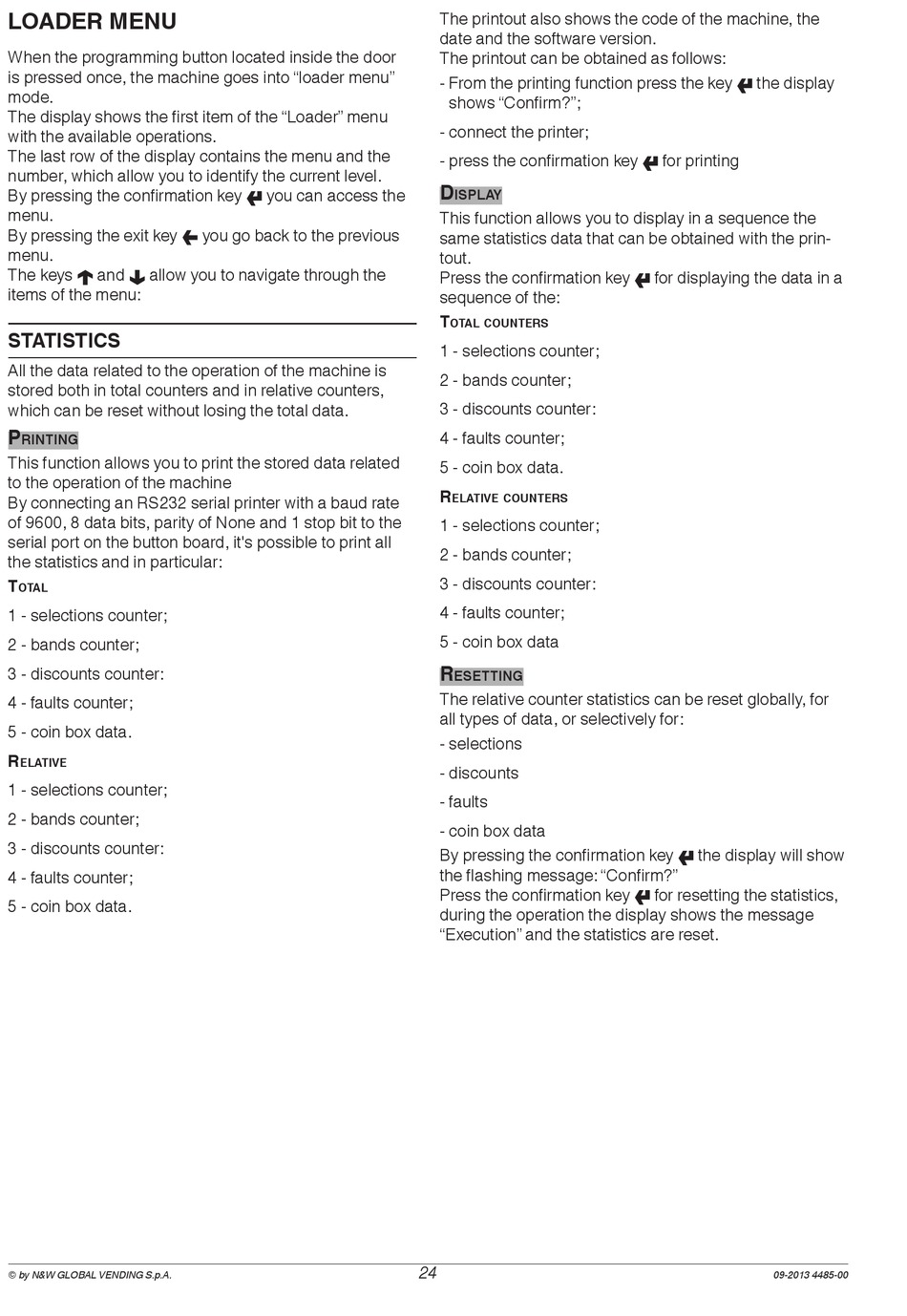

LOADER MENU

When the programming button located inside the door
is pressed once, the machine goes into "loader menu"
mode.
The display shows the first item of the "Loader" menu
with the available operations.
The last row of the display contains the menu and the
number, which allow you to identify the current level.
By pressing the confirmation key � you can access the
menu.
By pressing the exit key � you go back to the previous
menu.
The keys � and � allow you to navigate through the
items of the menu:
STATISTICS
All the data related to the operation of the machine is
stored both in total counters and in relative counters,
which can be reset without losing the total data.
p
riNtiNg
This function allows you to print the stored data related
to the operation of the machine
By connecting an RS232 serial printer with a baud rate
of 9600, 8 data bits, parity of None and 1 stop bit to the
serial port on the button board, it's possible to print all
the statistics and in particular:
t
otal
1 - selections counter;
2 - bands counter;
3 - discounts counter:
4 - faults counter;
5 - coin box data.
r
ElativE
1 - selections counter;
2 - bands counter;
3 - discounts counter:
4 - faults counter;
5 - coin box data.
© by N&W GLOBAL VENDING S.p.A.
The printout also shows the code of the machine, the
date and the software version.
The printout can be obtained as follows:
- From the printing function press the key � the display
shows "Confirm?";
- connect the printer;
- press the confirmation key � for printing
D
isplay
This function allows you to display in a sequence the
same statistics data that can be obtained with the prin-
tout.
Press the confirmation key � for displaying the data in a
sequence of the:
t
otal couNtErs
1 - selections counter;
2 - bands counter;
3 - discounts counter:
4 - faults counter;
5 - coin box data.
r
ElativE couNtErs
1 - selections counter;
2 - bands counter;
3 - discounts counter:
4 - faults counter;
5 - coin box data
r
EsEttiNg
The relative counter statistics can be reset globally, for
all types of data, or selectively for:
- selections
- discounts
- faults
- coin box data
By pressing the confirmation key � the display will show
the flashing message: "Confirm?"
Press the confirmation key � for resetting the statistics,
during the operation the display shows the message
"Execution" and the statistics are reset.
