Open the cover of the mixer dispensing cell and lift the
powder nozzles up to the end stop.
- Remove the powder funnels, the water conveyors, the
powder deposit funnels and the mixer motor fans from
the mixers;
- the fans can be removed by simply pulling gently to free
them;

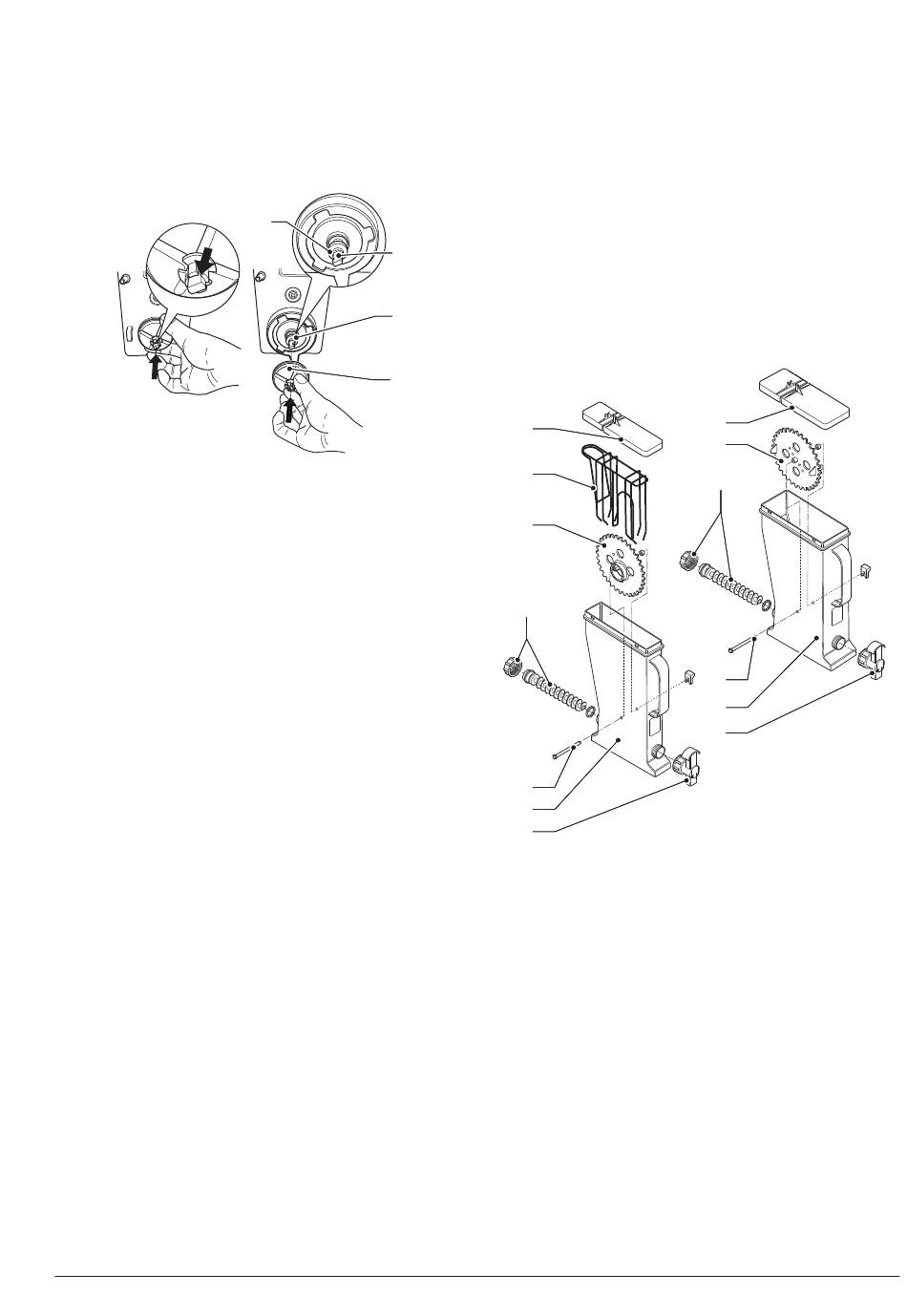

Fig. 29
1- Fan
2- Stuffing box seal
3- Shaft discharge
- Verify that the stuffing box lip seal is not broken and
has not lost elasticity; for inserting it, place the seal just
beyond the shaft discharge.
By inserting the fan completely, the stuffing box seal will
assume the correct position.
- Wash all the components with sterilising products (fol-
low the dosage indicated by the manufacturer), being
careful to mechanically remove the visible residues
using brushes if necessary.
The sterilisation is performed by means of sterilising
products.
- Dip the parts for approx. 20 minutes in a recipient con-
taining the previously prepared sterilising solution.
- Reinstall the conveyors and the water funnels.
- Reinstall the powder deposit drawers and the powder
funnels after having carefully rinsed and dried them.
- When reassembling the fans make sure to insert them
completely until they click.
© by N&W GLOBAL VENDING S.p.A.
2
3
2
1
After installing the components it is however neces-
sary:
- To wash the mixer and add a few drops of the sterilising
solution into the various funnels.
- Once the sterilisation has been performed, rinse the
components well in order to remove any possible resi-
due of the solution used.

PRODUCTS CONTAINERS

- Remove the containers from the machine;
- Remove the product outlet nozzles and take the augers
off from the back of the container;
- Clean all the components with a solution of hot water
and sterilising products and dry them carefully.
7
6
5
4
3
2
1
Fig. 30
1- Powder nozzle
2- Container
3- Pin for wheel
4- Auger
5- Sprocket
6- Scraper (if present)
7- Container covers
8- Container
49
7
5
4
3
8
1
