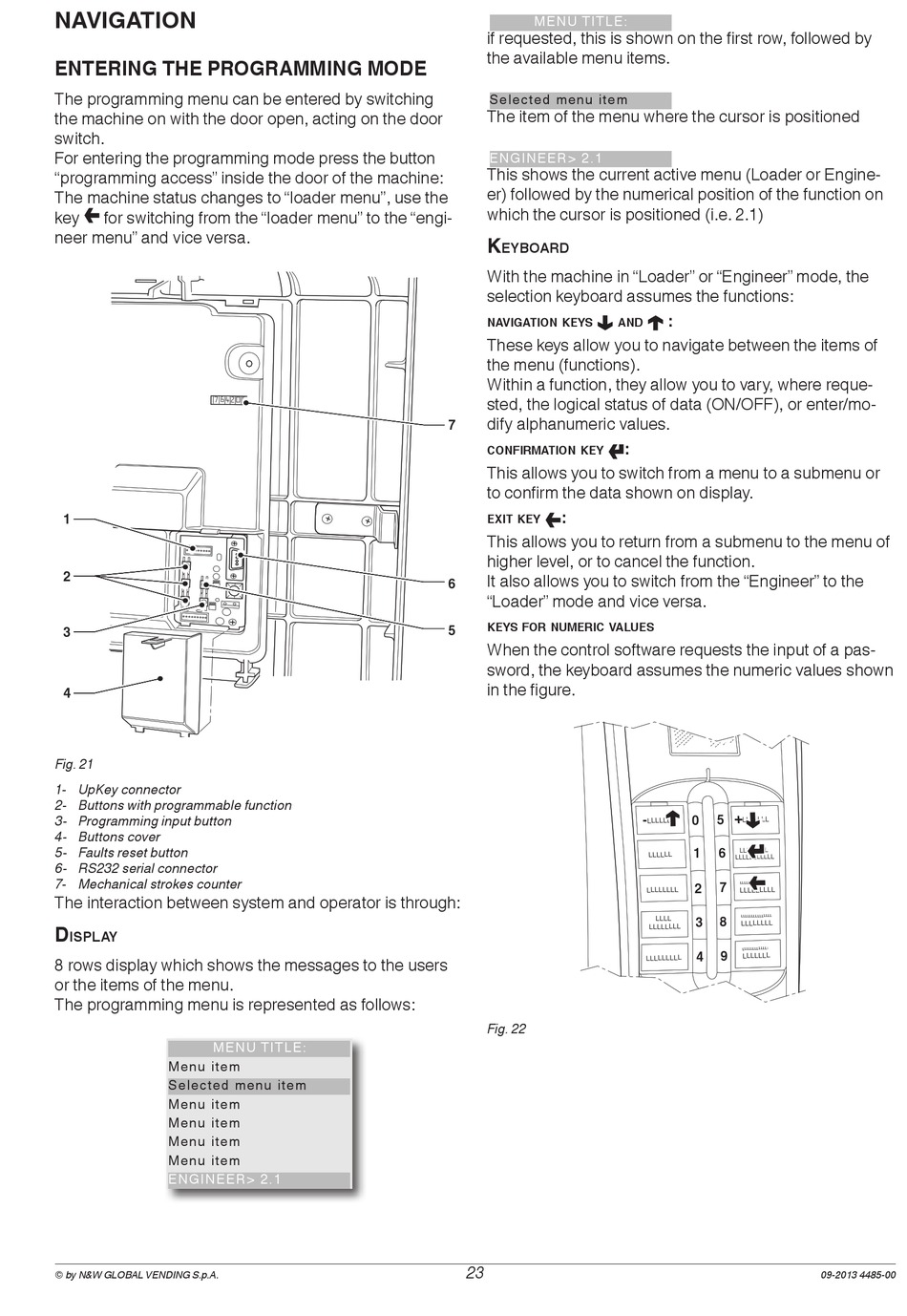

NAVIGATION

ENTERING THE PROGRAMMING MODE

The programming menu can be entered by switching
the machine on with the door open, acting on the door
switch.
For entering the programming mode press the button
"programming access" inside the door of the machine:
The machine status changes to "loader menu", use the
key � for switching from the "loader menu" to the "engi-
neer menu" and vice versa.
1
2
3
4
Fig. 21
1- UpKey connector
2- Buttons with programmable function
3- Programming input button
4- Buttons cover
5- Faults reset button
6- RS232 serial connector
7- Mechanical strokes counter
The interaction between system and operator is through:
D
isplay
8 rows display which shows the messages to the users
or the items of the menu.
The programming menu is represented as follows:
ME N U TI T L E:
M e n u i t e m
Se l e ct e d m e n u i t e m
M e n u i te m
M e n u i te m
M e n u i te m
M e n u i te m
E NGI N EER > 2 . 1
© by N&W GLOBAL VENDING S.p.A.
M EN U T IT LE :
if requested, this is shown on the first row, followed by
the available menu items.
S e le cte d m e nu ite m
The item of the menu where the cursor is positioned
E N GIN E ER> 2. 1
This shows the current active menu (Loader or Engine-
er) followed by the numerical position of the function on
which the cursor is positioned (i.e. 2.1)
k
EyboarD
With the machine in "Loader" or "Engineer" mode, the
selection keyboard assumes the functions:
NavigatioN kEys aND
�
These keys allow you to navigate between the items of
the menu (functions).
Within a function, they allow you to vary, where reque-
sted, the logical status of data (ON/OFF), or enter/mo-
dify alphanumeric values.
7
� :
coNfirmatioN kEy
This allows you to switch from a menu to a submenu or
to confirm the data shown on display.
� :
Exit kEy
This allows you to return from a submenu to the menu of
higher level, or to cancel the function.
It also allows you to switch from the "Engineer" to the
6
"Loader" mode and vice versa.
kEys for NumEric valuEs
5
When the control software requests the input of a pas-
sword, the keyboard assumes the numeric values shown
in the figure.
Fig. 22
23
� :
+
- 5
0
1 6
2 7
8
3
4 9
