olumE of tHE iNfusioN cHambEr
The infuser unit can operate with coffee doses between
0.26 and 0.53 oz (7.5 to 15 gr).
The upper piston will position itself automatically, depen-
ding on the requested selection (espresso or fresh brew)
c
HEcks aND sEttiNgs
To obtain the best results for each product used, we
recommend the following checks:
- The coffee pod shall be slightly compressed and moist.
- The grain size of ground coffee.
- The grammage of ground coffee.
- The dispensing temperature.
- Dose of water.
c (
up sENsor optioNal
Only some machines are equipped with a cup sensor
which detects the presence of objects between the
reflector and the sensor.
To ensure correct operation, the emitter and the protecti-
ve glass of the reflector in front of it must be kept clean.
D
ispENsiNg uNit ligHtiNg
Only some machines are equipped with LEDs for lighting
the dispensing unit.
By default, the LEDs switch on when the drink is being
dispensed and remain on for a few seconds after the
end of the dispensing; however, the on time or steady-on
of the LED can be programmed.
b lED
uttoN s
The selections menu has variable colour LEDs.
During the heating or energy saving phases the LEDs
are off.
During the normal operation of the machine, the LEDs
are on; the colour can be chosen through the appropriate
function of the engineer menu.
© by N&W GLOBAL VENDING S.p.A.
)
( )
optioNal
GRINDER-DOSER
The adjustments / settings for the grinder-doser are
valid only for the selections based on coffee beans
g
riNDiNg sEttiNg
If the grinding grade needs to be changed, adjust it using
the relevant knob on the grinder, and more precisely:
- rotate the knob anti-clockwise to obtain coarser grinding;
- rotate the knob clockwise to obtain finer grinding.
It is good practice to change the grinding grade when the
coffee grinding motor is working.
Note: after varying the grinding grade, it is necessa-
ry to carry out at least 2 selections for checking the
new ground coffee grain size:
The finer the grinding grade, the longer the dispensing
time will be and vice versa.

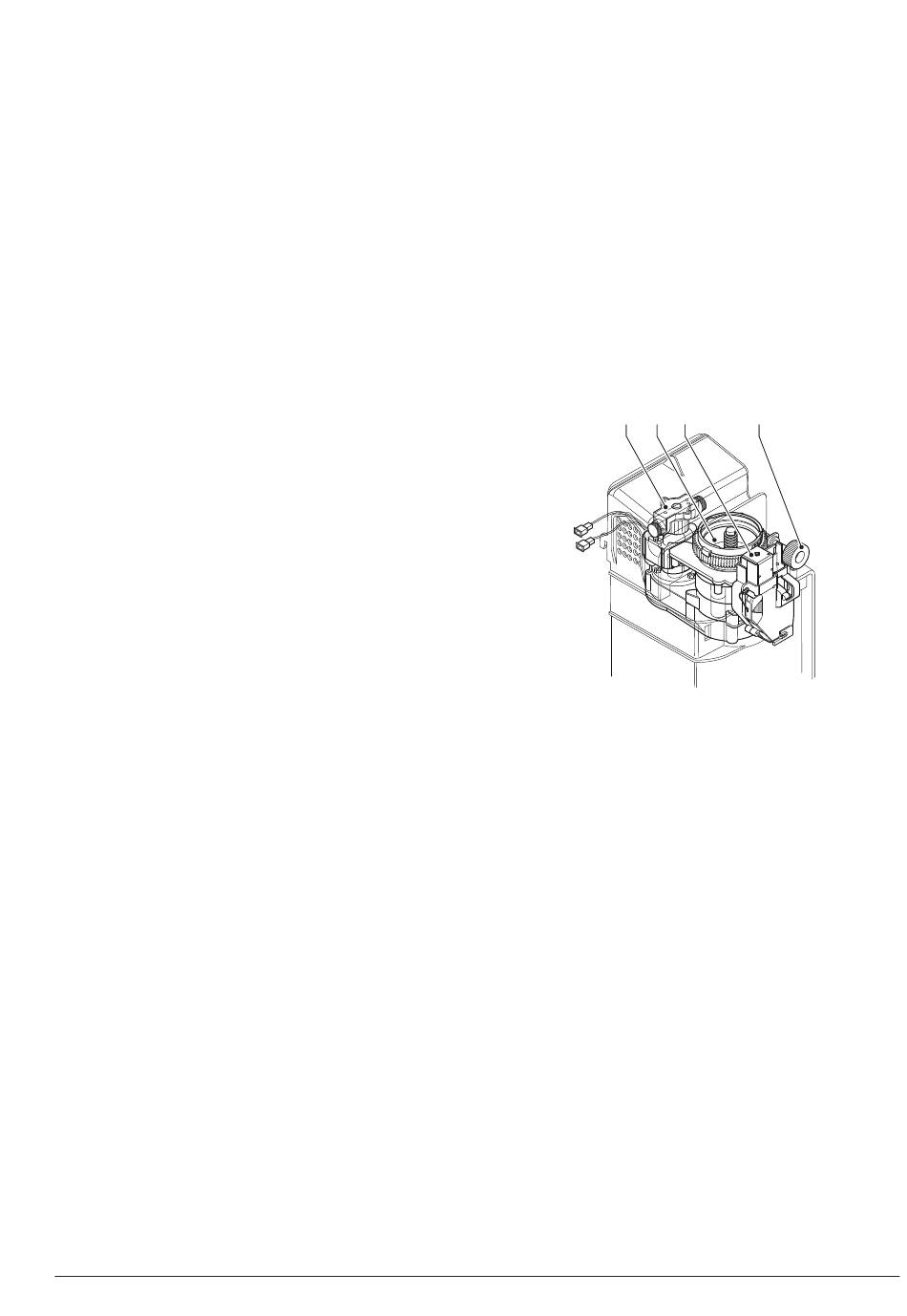

1
Fig. 19
1- Grinder motor
2- Grinder
3- Coffee release electromagnet
4- Grinding adjustment knob
19
2 3 4
