ESPRESSO UNIT MAINTENANCE

Every 10,000 dispensed items or, however, every 6
months, a small maintenance intervention on the infuser
unit is required for optimising its operation.
For performing the maintenance operations it is neces-
sary to remove the unit by following these steps:
- Disconnect the espresso coffee outlet nozzle from
the unit by rotating it by 90° from the rod and pulling it
outside.
- Disconnect the fresh brew coffee outlet nozzle from the
unit by rotating it by 90° and pulling it outside.
- Act the unit end stop lever rotating it until the horizontal
position.
- Pull out the infuser unit.
1

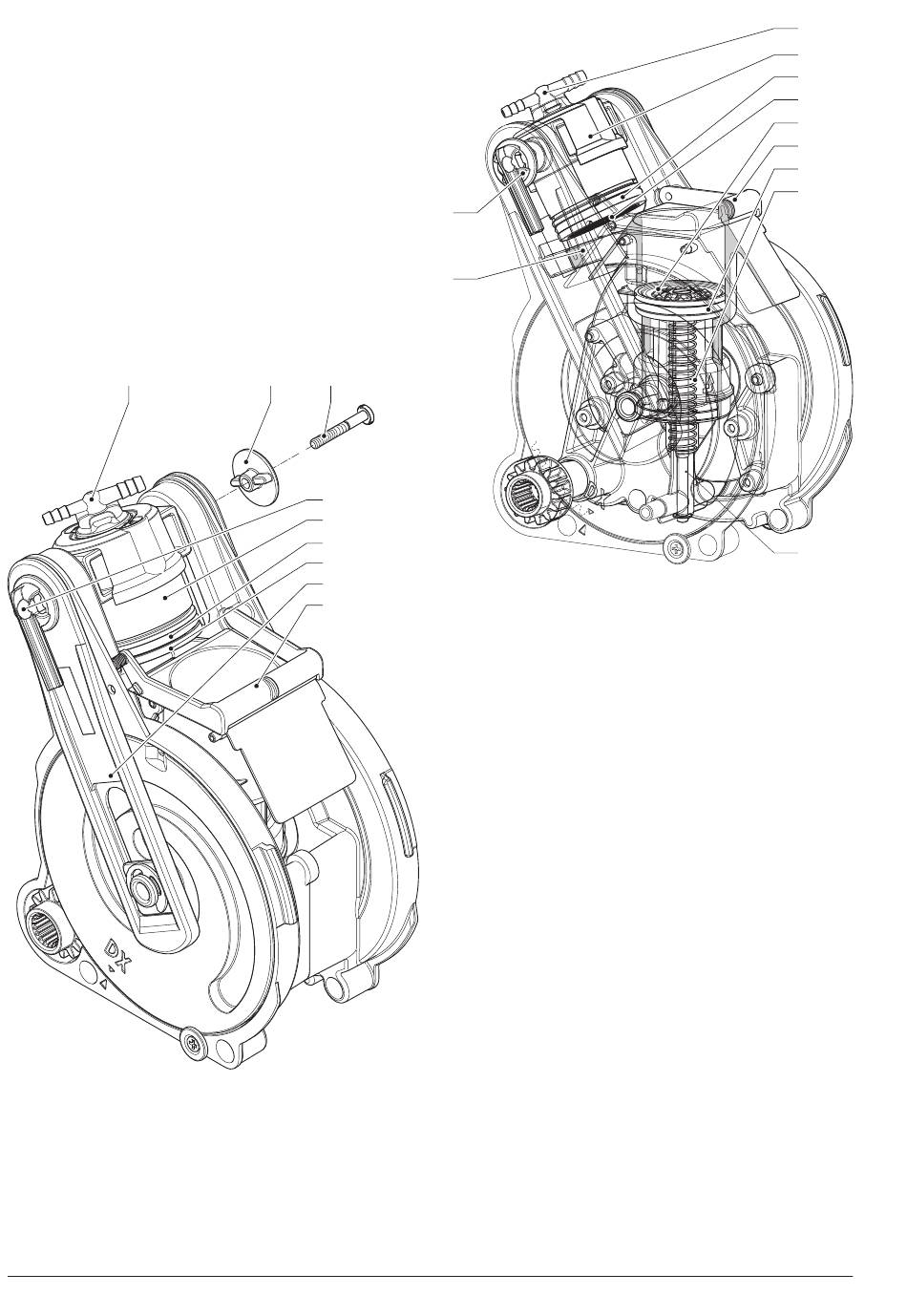

Fig. 24
1- Fresh brew nozzle
2- Key
3- Side screw
4- Espresso nozzle
5- Upper piston
6- Upper piston seal
7- Upper filter
8- Rod
9- Lower scraper
© by N&W GLOBAL VENDING S.p.A.
2 3
4
5
6
7
8
9
46
2
1
Fig. 25
1- Upper scraper
2- Espresso nozzle
3- Fresh brew nozzle
4- Upper piston
5- Upper piston seal
6- Upper filter
7- Lower filter
8- Lower scraper
9- Lower piston seal
10- Lower piston spring
11- Piston stem
3
4
5
6
7
8
9
10
11
