INSERTING THE PLATES

Remove the fixing screw and remove the cover.
The plates need to be inserted into the appropriate slots.
Based on the models, some buttons could be disabled
(see doses-selections table).
The machine is supplied with self-adhesive plates which
shall be attached to the products containers based on
layout (see doses-selections table)
1

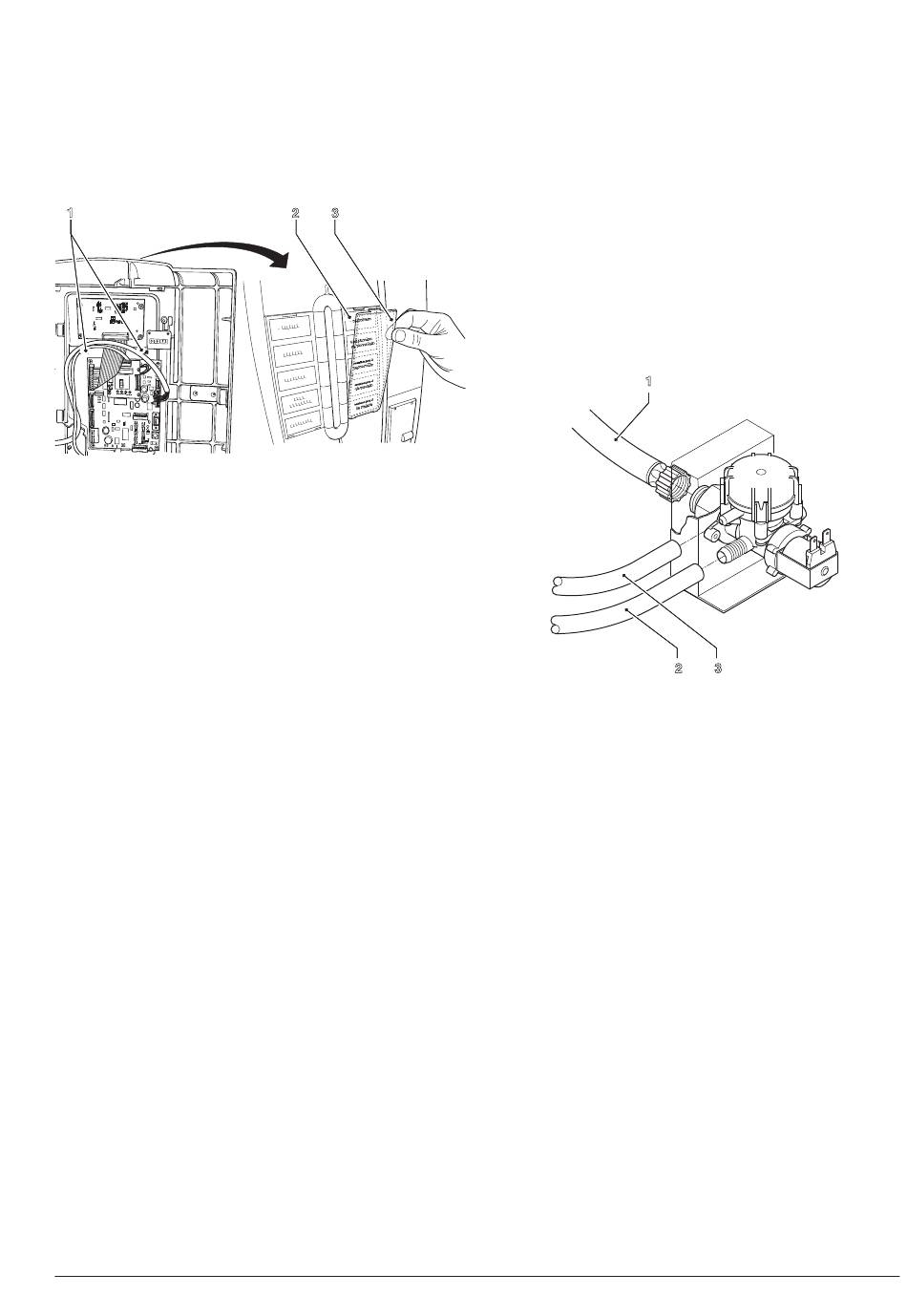

Fig. 14
1- Fixing fins
2- Plates support
3- Selections plates
p
aymENt systEm
The machine is sold without a payment system, the-
refore whoever performs the installation of it bears
the responsibility for any damage to the machine
or to objects and people deriving from the wrong
installation of the payment system.
The validator can be installed directly into the machine.
Ensure that the programming of the related parameters
is correct.
The "cashless" systems can be placed into the machine;
other payment systems such as "change giver" shall be
physically placed inside the support cabinet or in the
lateral module (optional).
The use of payment systems such as "change givers"
and/or "cashless" is possible only using the appropriate
connection kits.
© by N&W GLOBAL VENDING S.p.A.
2 3

WATER SUPPLY

The water used by the vending machine is drinking wa-
ter, using a backflow protection and taking into account
the regulations in force where the machine is installed.
The machine should be connected to the drinking water
mains with water pressure between 7.3 psig and 123.3
psig (0,5-8,5 bar).
Let the water come out from the mains until it is clear and
free from dirt.
Connect the water mains to the 3/4" connection of the
water inlet solenoid valve with a pipe having minimum in-
ternal diameter of 6 mm (also available as a kit), suitable
for supporting the mains pressure and of a type suitable
for food products.
Installing a tap on the water system outside the ma-
chine, in an accessible position, is recommended.
Fig. 15
1- 3/4" inlet tube
2- Inlet tube
3- Overflow tube
a -
Nti flooDiNg DEvicE
The water inlet solenoid valve is equipped with an anti-
flooding device which allows the mechanical blocking of
the input of water following a malfunction of the solenoid
valve or of the control system of the level of water in the
boiler.
For restoring the normal operations, do as follows:
- empty the water contained in the anti-flooding pipe;
- close the water mains tap outside the machine;
- loosen the connection which fixes the input pipe of the
solenoid valve for lowering the residual water pressure
and tighten it again;
- open the tap and apply voltage to the machine.
15
1
2 3
