Operation

Shaft rotation direction

1)
1 means 12 V and 2 means 24 V
DC
© Danfoss | August 2018
Shaft rotation direction is determined with a view from the shaft end.

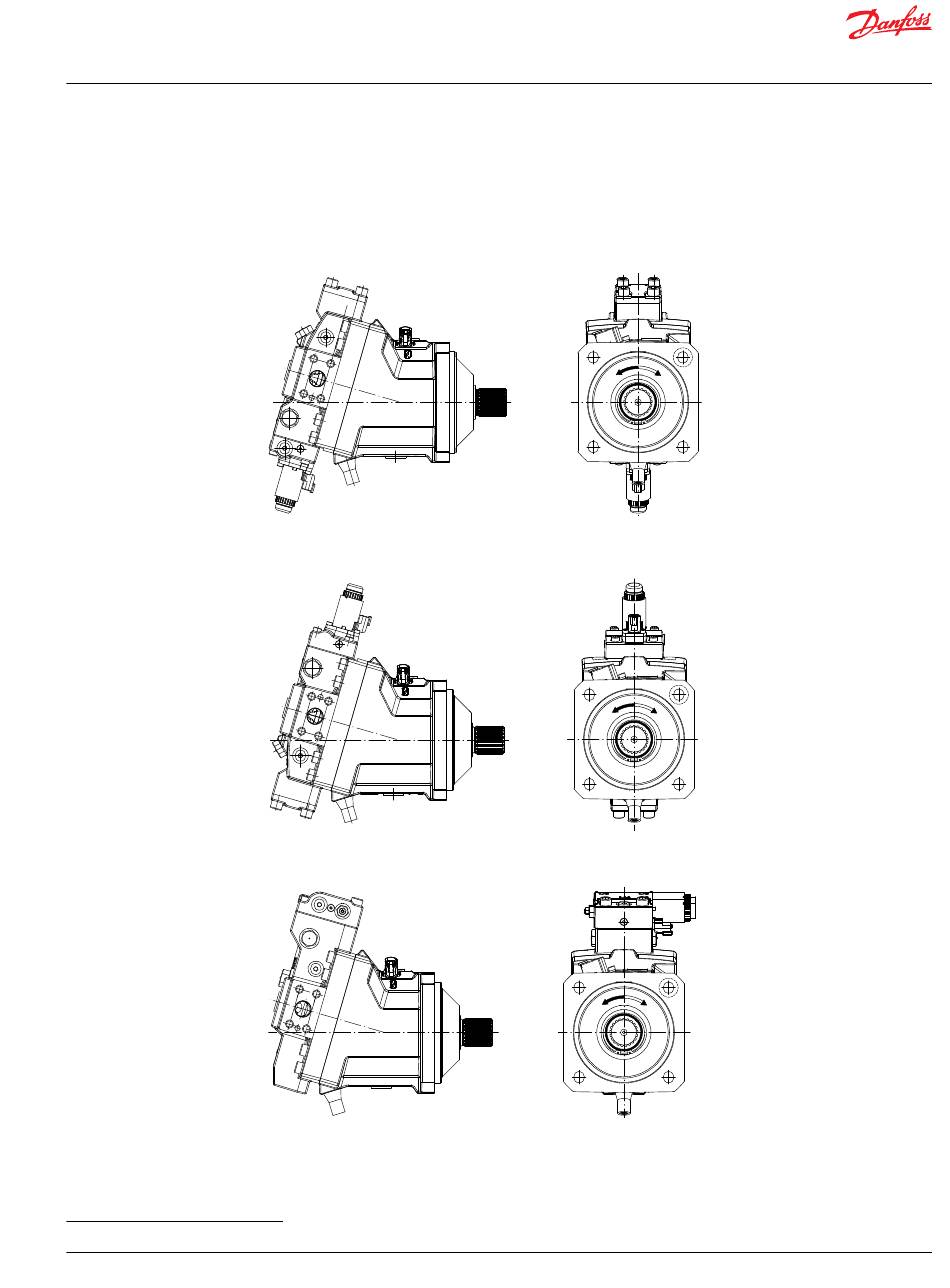

Rotation direction of the motor will be dependent on the control option used as illustrated below.
Controls L1, L2, D1, D2, LH, DH
Controls M1, M2, K1, K2, KH, MH
Controls E1, E2, F1, F2, P1, P2, T1, T2, TA, TH, HE, HF
DC
Direction of rotation
Flow into port A = Clockwise
Flow into port B = CounterClockwise
CCW CW
A
B
P006030
Direction of rotation
Flow into port A = CounterClockwise
Flow into port B = Clockwise
CCW CW
A
B
P006031
Direction of rotation
Flow into port A = CounterClockwise
Flow into port B = Clockwise
CCW CW
B
A
P006032
