Service Manual
H1 Bent Axis Motors, Size 060/080/110/160/210/250 cm3

Pressure measurements

Ports and Gauge Information

26 | © Danfoss | August 2018

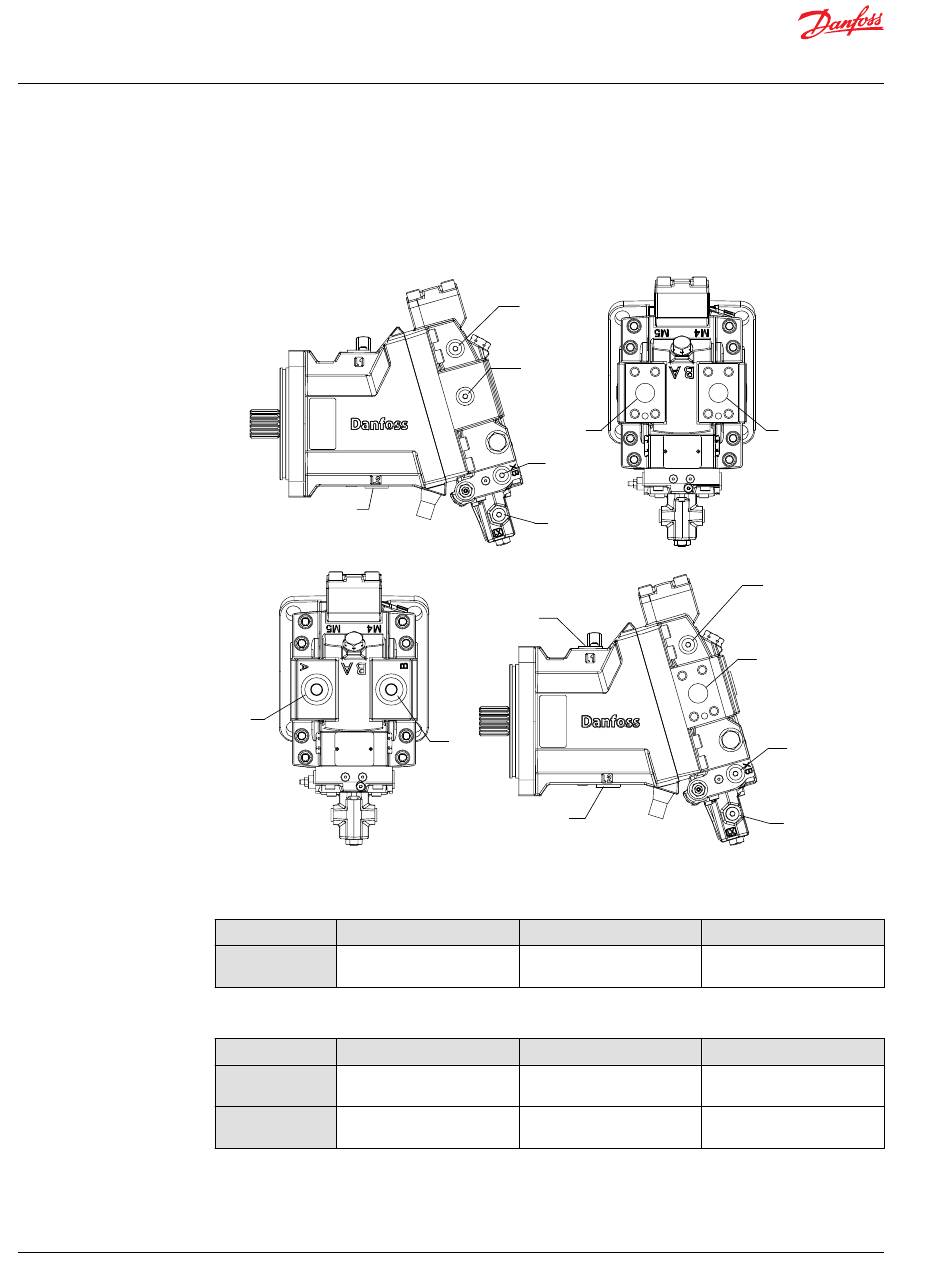

The following drawing with accompanying table show the port locations and gauge sizes needed for
installation.
Ports locations (proportional control)
L2
MA
System split flange boss ports, A/B: Code 62 per ISO 6162, Type 1
Port Size 060
A, B 3/4 in; Thread: M10 x 1.5
min. 18 mm [0.71 in]
Radial/Axial end-cap ports
Port Size 060
7/8-14 UNF
MA, MB (Radial)
Wrench (int. hex): 3/8 in
MA, MB (Axial) 7/8-14 UNF
Wrench (int. hex): 3/8 in
M5
(M4 on
reverse side)
MA
(MB on
reverse side)
System
Port A
XB
(Port XA
on reverse side)
X1
Axial Ported Endcap
L1
MB
L2
Radial Ported Endcap
Size 080, 110
1 in; Thread: M12 x 1.75
min. 23 mm [0.91 in]
Size 080, 110, 160, 210, 250
1 1/16-12UN
Wrench (int. hex): 9/16 in
9/16-18 UNF
Wrench (int. hex): 1/4 in
System
Port B
M5
(M4 on reverse side)
System Port A
(System Port B
on reverse side)
XB
(Port XA
on reverse side)
X1
P108829
Size 160, 210, 250
1 1/4 in; Thread: M12 x 1.75
min. 23 mm [0.91 in]
System pressure obtained
600 bar [8702 psi]
600 bar [8702 psi]
AX00000025en-US0504
