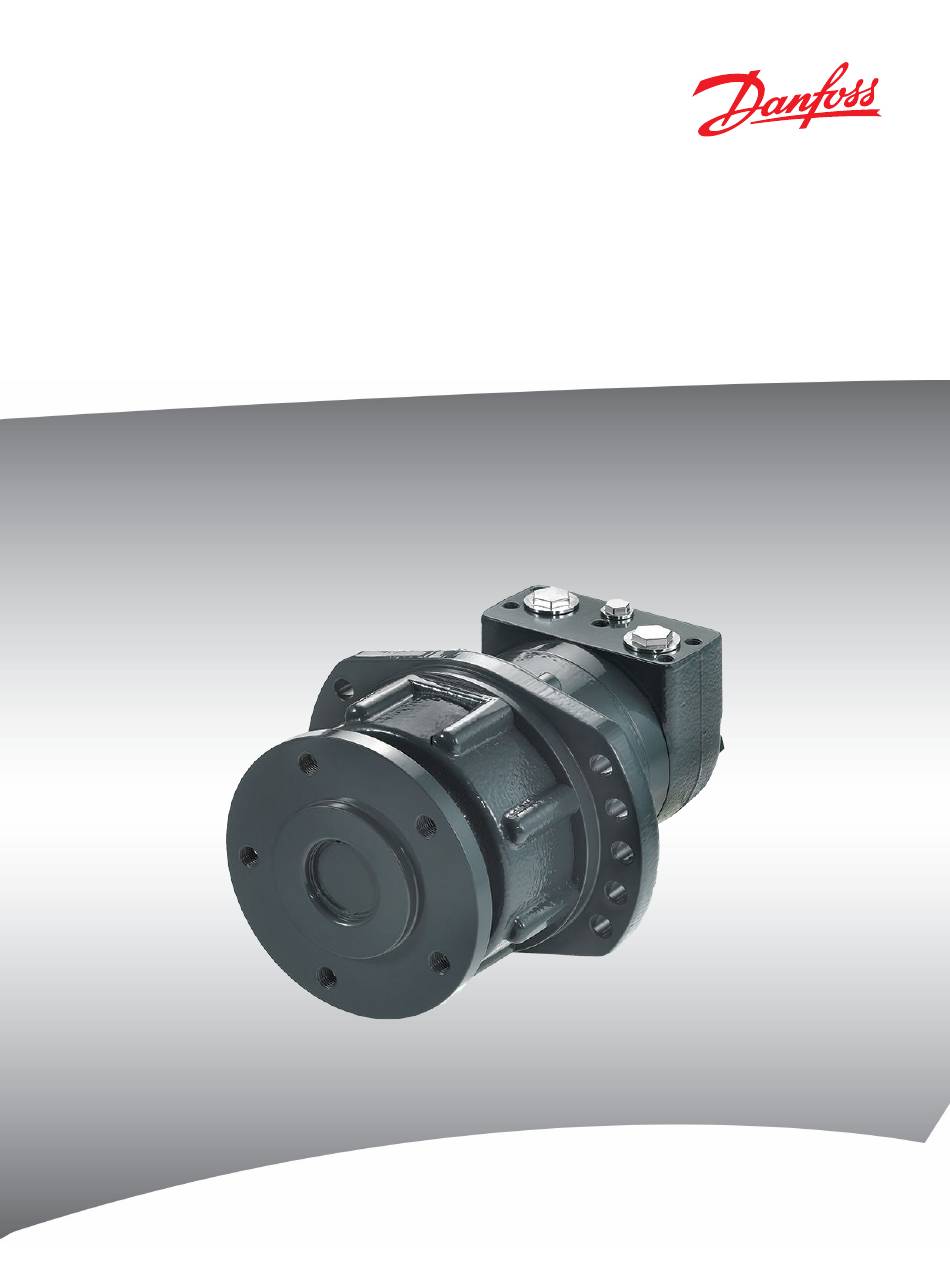

- Page 1 MAKING MODERN LIVING POSSIBLE Technical Information Orbital Motor TMTHW powersolutions.danfoss.com...
- Page 2 Technical Information TMTHW Orbital Motors Revision history Table of revisions Date Changed April 2015 Converted to Danfoss layout August 2013 First version L1327341 • Rev BA • April 2015...
-
Page 3: Table Of Contents
Characteristic, features and application areas of Orbital Motors..................4 Characteristic features of Danfoss Orbital Motors......................4 Technical features of Danfoss Orbital Motor........................4 The Danfoss Orbital Motors are used in the following application areas:..............5 Survey of literature with technical data on Danfoss Orbital Motors................5 Introduction the Orbital Motor Series T-Series –... -
Page 4: A Wide Range Of Orbital Motors
Characteristic, features and application areas of Orbital Motors Danfoss is a world leader within production of low speed orbital motors with high torque. We can offer more than 3,000 different orbital motors, categorised in types, variants and sizes (including different shaft versions). -
Page 5: The Danfoss Orbital Motors Are Used In The Following Application Areas
• Marine equipment Survey of literature with technical data on Danfoss Orbital Motors Detailed data on all Danfoss Orbital Motors can be found in our motor catalogue, which is divided into more individual subcatalogues: • General information on Danfoss Orbital Motors: function, use, selection of orbital motor, hydraulic systems, etc. -
Page 6: Introduction The Orbital Motor Series
Introduction the Orbital Motor Series By introducing the TMTHW, Danfoss is introducing the first Orbital Motor of a new Series. In order to meet the demands for motors that have the right duty cycle and efficiency capabilities for a given function. -
Page 7: Speed, Torque And Output
Technical Information TMTHW Orbital Motors Speed, torque and output The following bar diagrams, are useful for a quick selection of relevant motor size for the application. The final motor size can be determined by using the Function diagrams on page 12. The function diagrams are based on actual tests on a representative number of motors from our production. -
Page 8: Versions And Code Numbers
Technical Information TMTHW Orbital Motors Versions and code numbers TMTHW version and code numbers TMTHW standard motor Mounting flange: Wheel Spigot Ø180 mm [7.09 in] diamer Bolt circle Ø210 mm [8.27 in] diameter Shaft Port size Port Style Drain Port Standard Metric Painted... -
Page 9: Technical Data
Technical Information TMTHW Orbital Motors Technical data Technical data for TMTHW Type TMTHW TMTHW TMTHW TMTHW TMTHW Motor size Geometric 314.9 393.1 630.7 802.2 displacement [19.2] [24.0] [32.2] [38.5] [49.0] Maximum speed min cont. [rpm] int. Maximum torque N•m cont. 1300 1690 2200... -
Page 10: Pressure Drop In Motor
Technical Information TMTHW Orbital Motors Technical data 1500 1200 max. (rpm) 151-1673.10 - - - - Intermittent operation: The permissible values may occur for maximum 10% of every minute. ____ Continuous operation Drain line should always be used. Pressure drop in motor ∆p ∆p TMTHW Pressure drop in motor... -
Page 11: Direction Of Shaft
Technical Information TMTHW Orbital Motors Technical data The curve applies to an unloaded motor shaft and an oil viscosity of 35 mm /s [165 SUS]. 1. TMTHW 315 2. TMTHW 400, 500, 630 and 800 Direction of shaft Permissible shaft load for TMTHW rad. -
Page 12: Function Diagrams
Technical Information TMTHW Orbital Motors Function diagrams Explanation of function diagram use, basis and conditions can be found under Speed and torque Speed and torque [blue] Continuous range [pink] Intermittent range (max. 10% operation every minute) Intermittent pressure drop and oil flow must not occur simultaneously. TMTHW 315 VMP 50 lbf•... -
Page 13: Tmthw 400
Technical Information TMTHW Orbital Motors Function diagrams TMTHW 400 VMP 50 lbf• in 2250 18 000 2000 40kW 50kW 60kW 16 000 1750 30kW 20kW N=2.5kW 10kW 14 000 1500 12 000 1250 10 000 1000 8 000 6 000 4 000 η... -
Page 14: Tmthw 630
Technical Information TMTHW Orbital Motors Function diagrams TMTHW 630 VMP 50 lbf• in 3500 30 000 3250 3000 25 000 2750 N=2.5kW 20kW 40kW 60kW 2500 10kW 30kW 50kW 20 000 2250 2000 1750 15 000 1500 1250 10 000 1000 η... -
Page 15: Technical Data
Technical Information TMTHW Orbital Motors Technical data Port thread versions G Main port ISO 228/1 – G 3/4 P301 561_AE G Drain port ISO 228/1 – G 1/4 P301 561_CG Manifold 15.6[0.64] 15.6[0.64] 7.25[0.29] 11.0[0.43] 15.6[0.64] 15.6[0.64] P301 566 14.5[0.57] Dimentional for given TMTHW-motor see: Dimensions on page 16. -
Page 16: Dimensions
Technical Information TMTHW Orbital Motors Dimensions Wheel flange-spigot diameter Ø 180 mm - BC Ø 210 mm Ø172[6.77] Ø92.9[3.66] Ø92.7[3.65] 84[3.31] max 146[5.75] Ø180.0 [7.09] Ø179.8 [7.08] 10x Ø14.2[0.56] P301 565 max 195.4[7.69] G 3/4; 17 mm [0.66 in] deep Drain connection G 1/4;... -
Page 17: Wheel Flange-Spigot Diameter Ø 223.9 Mm - Bc Ø 265 Mm
Technical Information TMTHW Orbital Motors Dimensions TMTHW dimensions Size Weight 315-800 cm mm [in] mm [in] mm [in] mm [in] kg [lb] TMTHW 315 135.1 [5.33] 117.1 [4.61] 106.1 [4.18] 91.6 [3.61] 33.7 [74.30] TMTHW 400 143.3 [5.64] 125.1 [4.93] 114.1 [4.49] 99.6 [3.92] 34.8 [76.72]... - Page 18 Technical Information TMTHW Orbital Motors Dimensions G 3/4; 17 mm [0.66 in] deep Drain connection G 1/4; 12 mm [0.47 in] deep M10; 17 mm [0.66 in] deep M16 × 1.5 400-800 cm Size 42.1-44.5 kg Weight F200/6xM16 BC ø170/PD.ø130 Output shaft Wheel 8x ø17.5 BC ø265/PD ø224 Mounting flange...
- Page 19 Technical Information TMTHW Orbital Motors L1327341 • Rev BA • April 2015...
- Page 20 Phone: +86 21 3418 5200 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without changes being necessary in specifications already agreed.
