Components

Front Panel

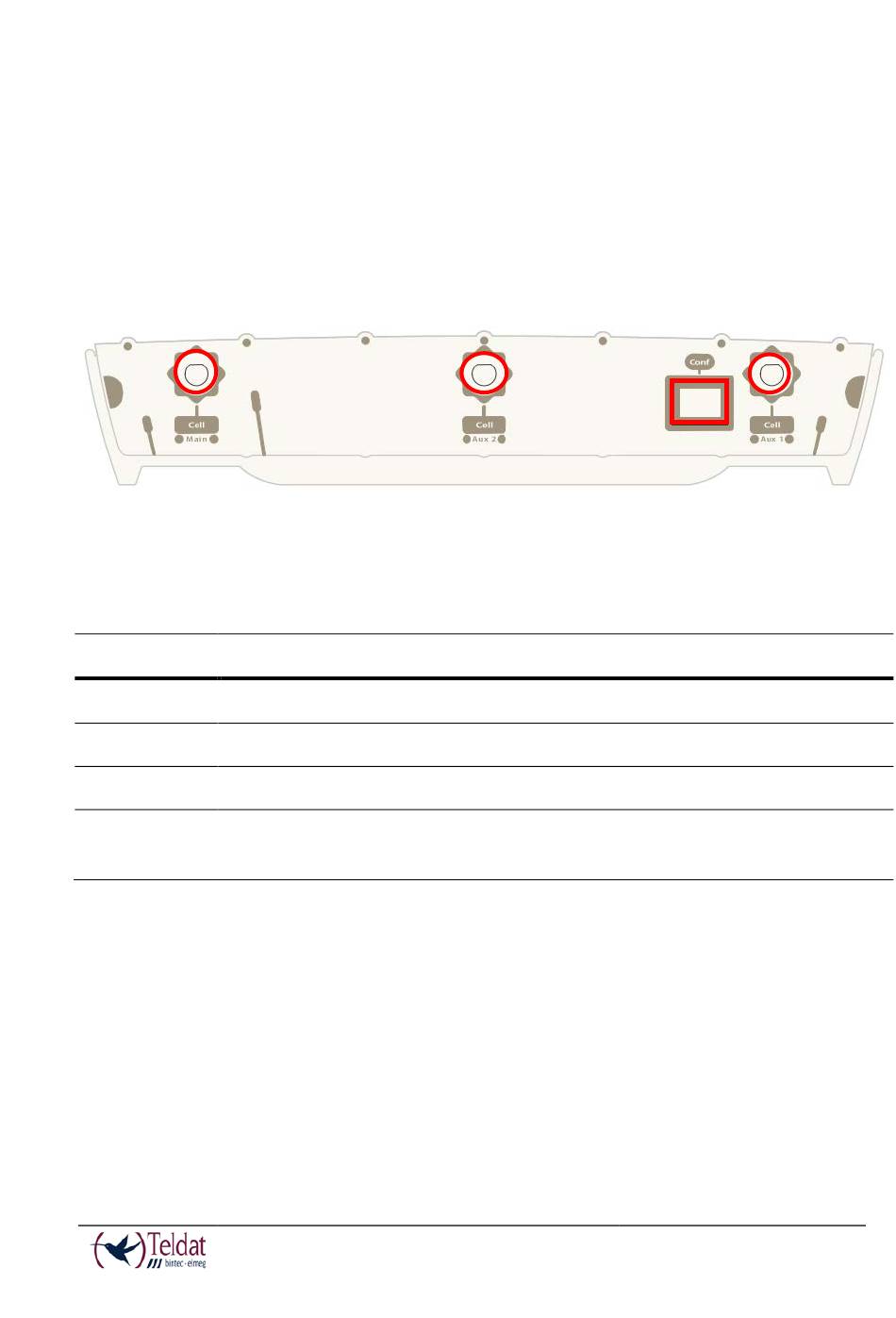

The following figure shows the front panel. The only thing to be found here are the 3G antenna
connectors.
A
The front panel elements are as follows:
Item Description
A Main antenna for the Teldat V cellular module.
B Auxiliary antenna 2 for the Teldat V cellular module.
C Auxiliary antenna 1 for the Teldat V cellular module.
D RJ-45 connector to provide access to the Teldat V local console for configuring
and monitoring purposes.

Rear Panel

The following figure shows the rear panel. Here you can see the rest of connectors for the Teldat
V router.
F 1. F
IGURE
T 1. F
ABLE RONT
TELDAT V
– Installation Manual
I - 5
B
P
RONT ANEL
P E
ANEL LEMENTS
