Advanced Maintenance: Replacement of the fan
The soft starter should never be opened by the user, as this will void the installer's warranty. The installer may however need
to open the soft starter to replace the fan (or fans on the MEsoftstart/I03 and MEsoftstart/I04). Instructions are provided in
this section. Removing the bottom cover gives access to the fan. Pictures show the MEsoftstart/I01.

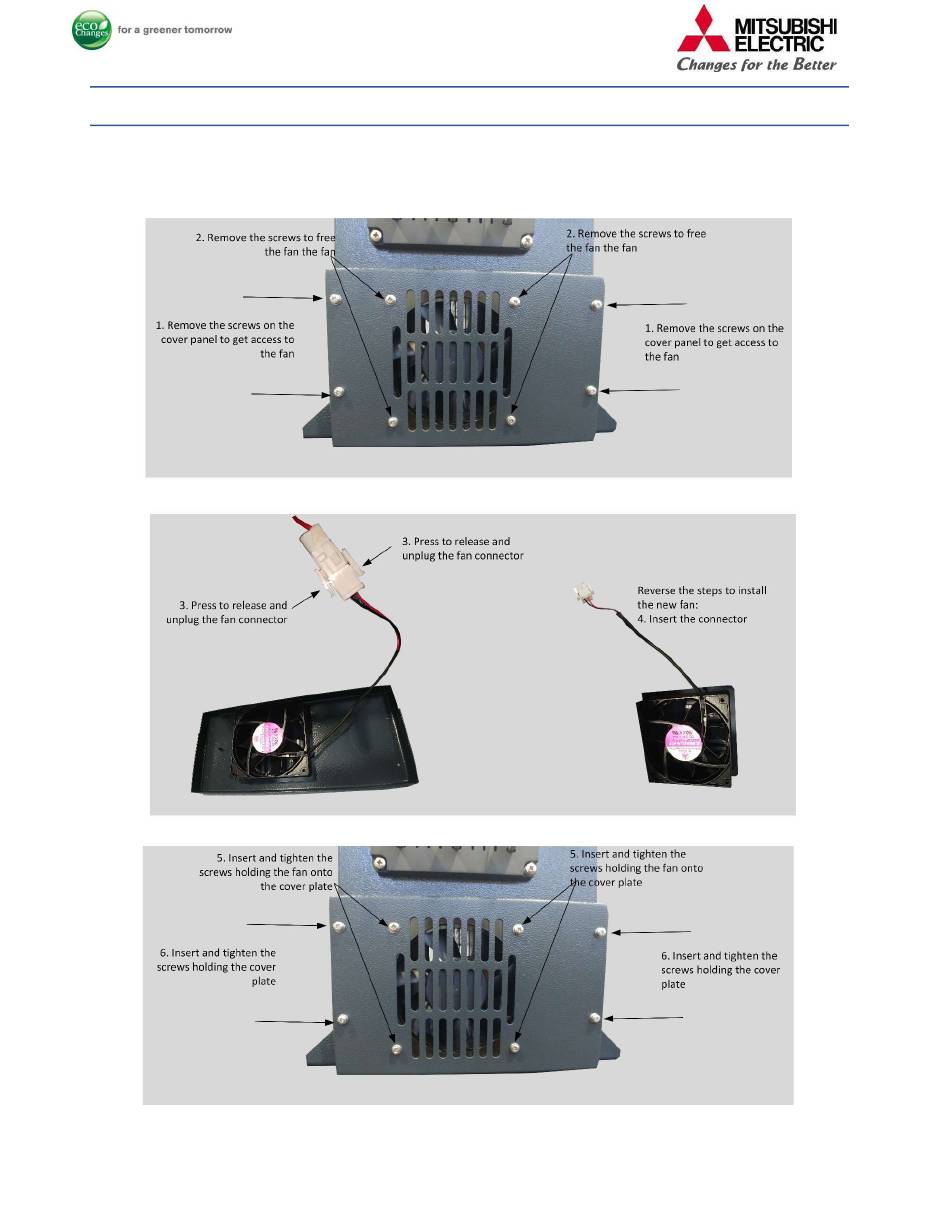

Figure 71: Replacement of the fan
118 Instruction Manual Supplement
