SmartFusion2 SoC FPGA - Adaptive FIR Filter Demo

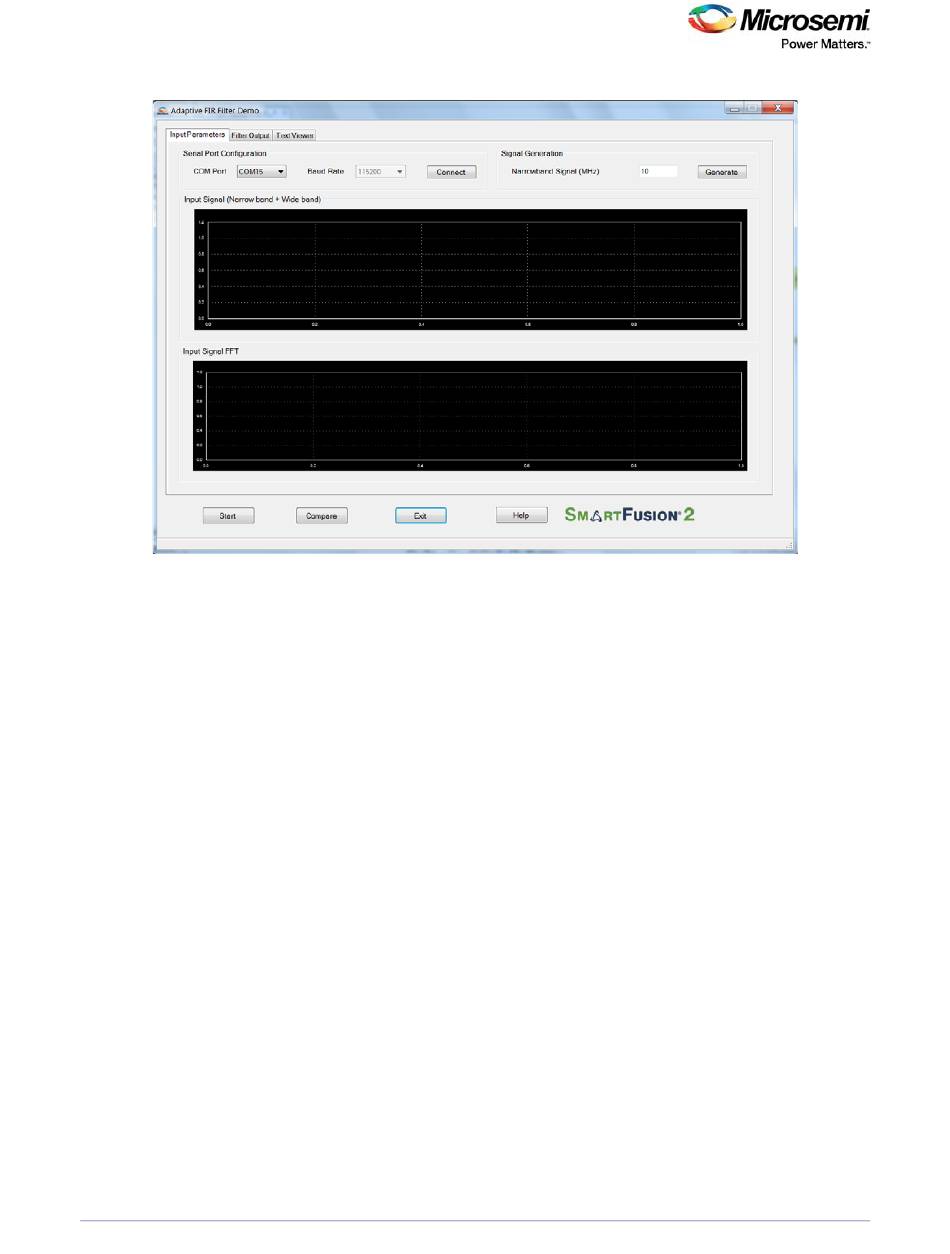

Figure 15 • Adaptive FIR Filter Demo GUI
The Adaptive FIR filter demo window consists of the following tabs:
•
Input Parameters: Configures the serial COM port, filter generation, and signal generation.
•
Filter Output: Plots error signal and its frequency spectrum
•
Text Viewer: Shows the coefficients, input signal, output signal, and FFT data values
Click Help for more information on the GUI.
2.7
Running the Design
1.
Launch the Adaptive FIR filter demo GUI, install and invoke the executable file provided with the
design files. The default location of the executable files are:
•
SmartFusion2 Starter Kit:
<download_folder>\SF2_Starter_Adaptive_FIR_filter_Demo_DF\GUI\SF2_Adaptive_FIR_Filter
.exe
•
SmartFusion2 Security Evaluation Kit:
<download_folder>\SF2_Eval_Adaptive_FIR_filter_Demo_DF\GUI\SF2_Adaptive_FIR_Filter.e
xe
DG0441 Demo Guide Revision 7.0
16
