SmartFusion2 SoC FPGA - Adaptive FIR Filter Demo
Page setup, print, show point values, Zoom, and set scale to default are other options for signal
analysis.

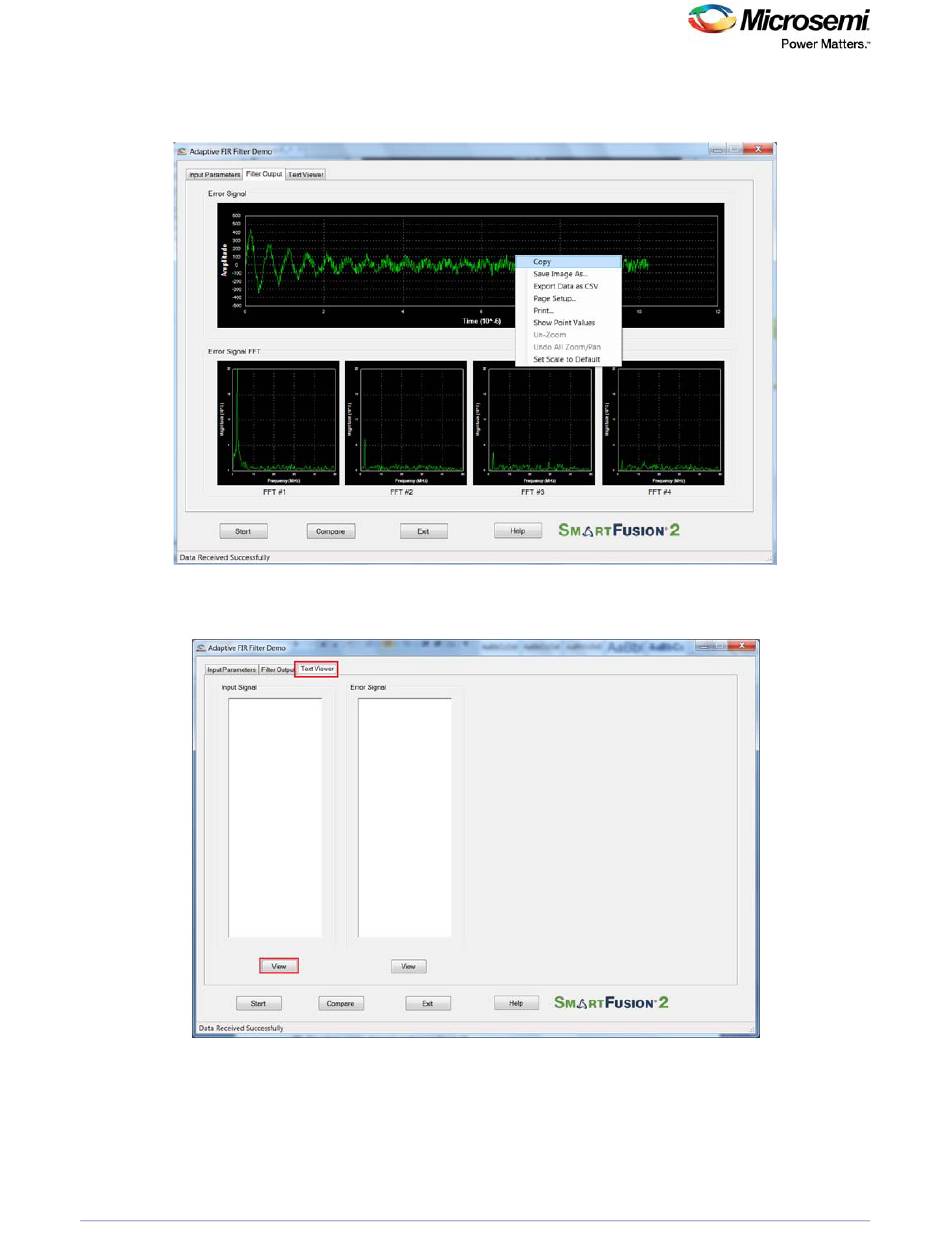

Figure 27 • Error Signal - GUI Options
10. The input signal and error signal values can be viewed in the Text Viewer tab. Click the Text Viewer
tab and then click the corresponding View shown in the following figure.
Figure 28 • Text Viewer
DG0441 Demo Guide Revision 7.0
22
