SmartFusion2 SoC FPGA - Adaptive FIR Filter Demo

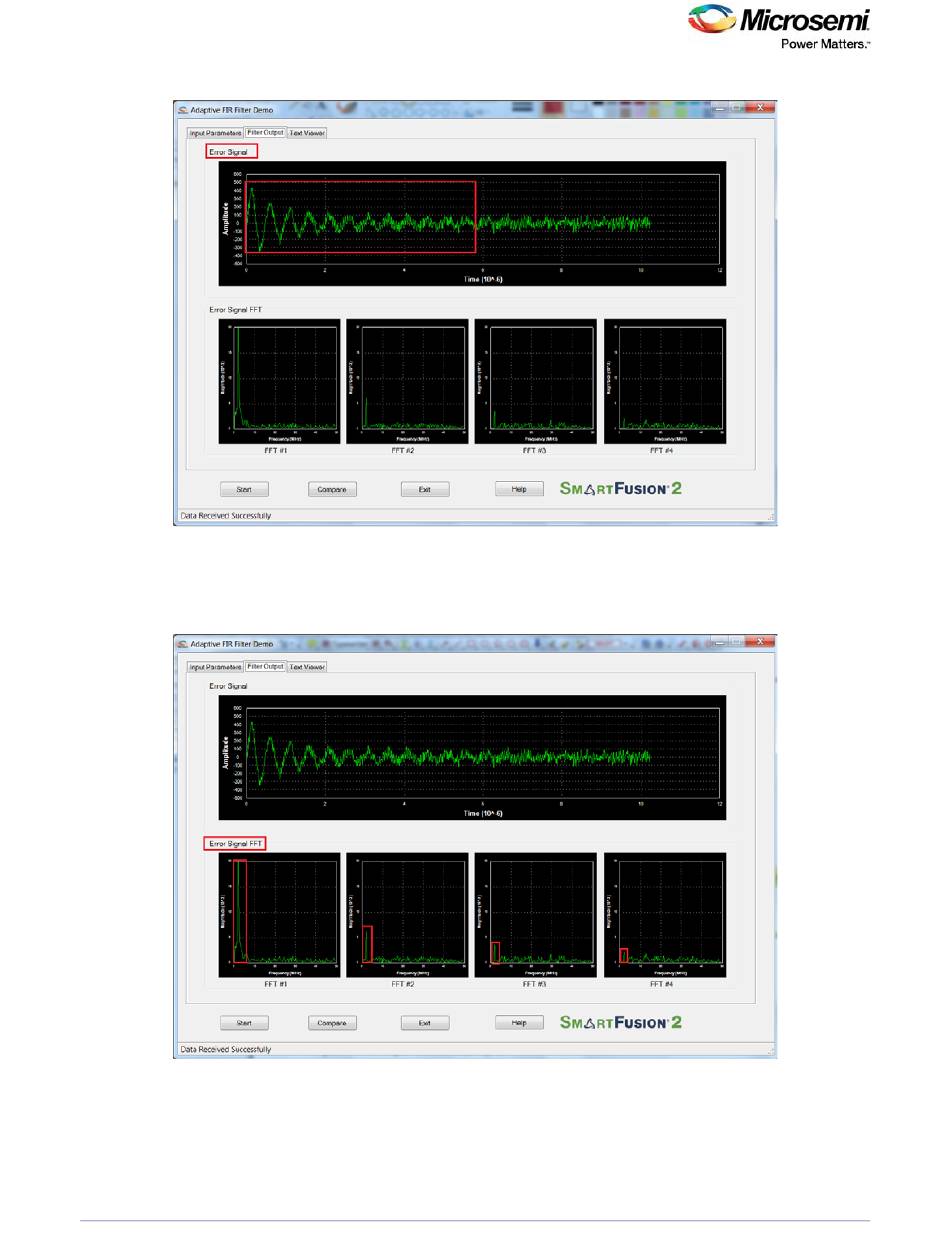

Figure 20 • Error Signal: Time and Frequency Plot
The narrowband signal component is suppressed gradually in the Error signal frequency spectrum.
This can be observed in the Error signal FFT plot as shown in the following
figure.
Figure 21 • Error Signal: Time and Frequency Plot
5.
Click Compare to analyze the input wide band data with the output wide band data.
DG0441 Demo Guide Revision 7.0
19
